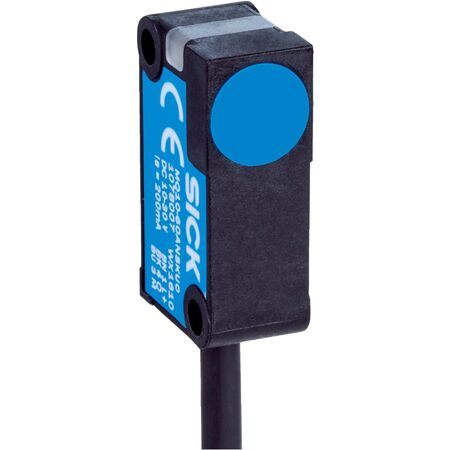

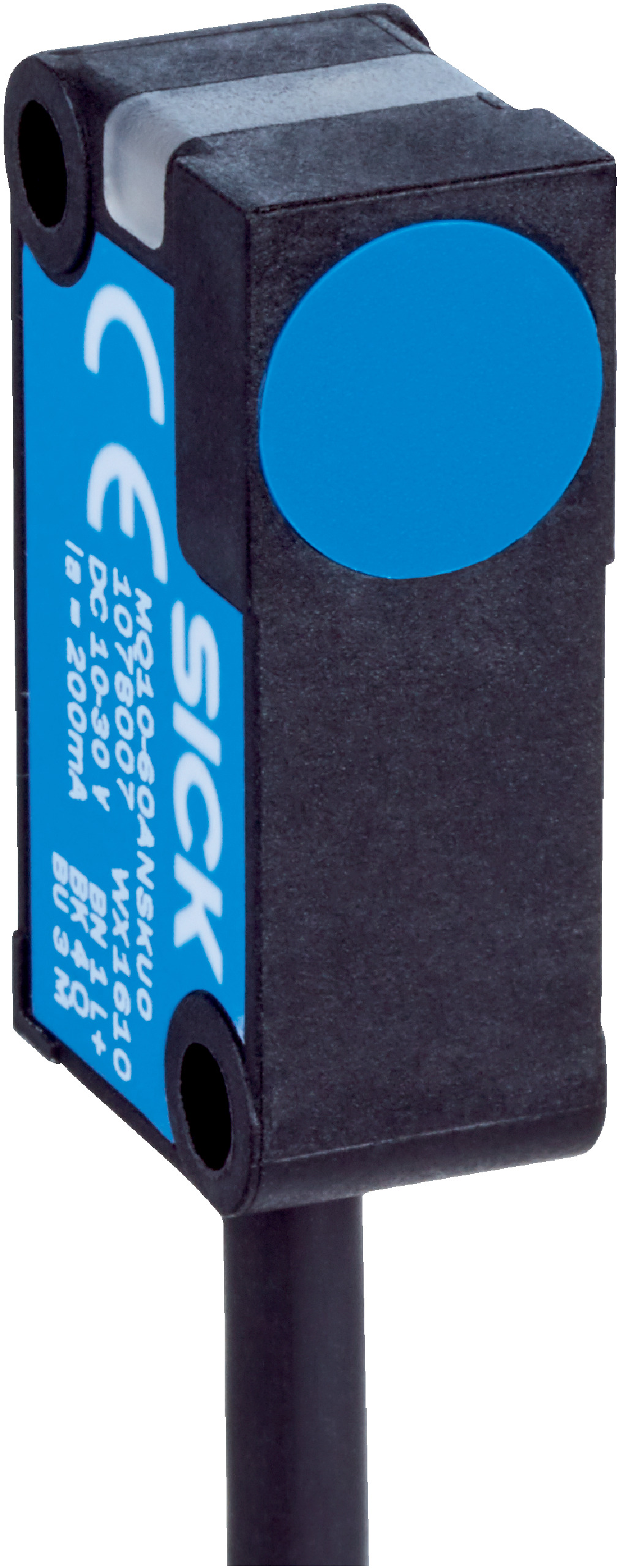

Inductive Proximity Sensor | NPN Normally Open | 60mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor MQ10-60ANSKU0 is designed for reliable object detection in industrial automation. With a sensing range of up to 60 mm and a high switching frequency of 1,000 Hz, it ensures fast and accurate position sensing. Built for durability with an IP67 rated enclosure, this sensor is perfect for manufacturing lines and safety control systems, providing protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 5 mA
- Switching output: NPN, normally open
- Switching frequency: 1,000 Hz
- Sensing range Sn: 0 mm to 60 mm
- Safe sensing range Sa: 48.6 mm
- Voltage drop: ≤ 1.5 V
- Ripple: ≤ 10%
- Time delay before availability: ≤ 26 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1%
- Temperature drift: ± 10%
- EMC compliance: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable: 3-wire, 2 m PUR cable
- Protection: Reverse polarity, short-circuit, power-up pulse
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Operating temperature: -25 °C to +75 °C
- Housing and sensing face material: Plastic, VISTAL®
- Enclosure rating: IP67
- Dimensions (H x L x W): 28mm x 16mm x 10mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with durable plastic VISTAL® material
- Sensing range up to 60 mm with safe sensing range of 48.6 mm
- High switching frequency of 1,000 Hz for fast response
- NPN normally open switching output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring reliable proximity sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MQ10-60ANSKU0 inductive sensor is available for immediate purchase, ideal for industrial automation and control applications.
