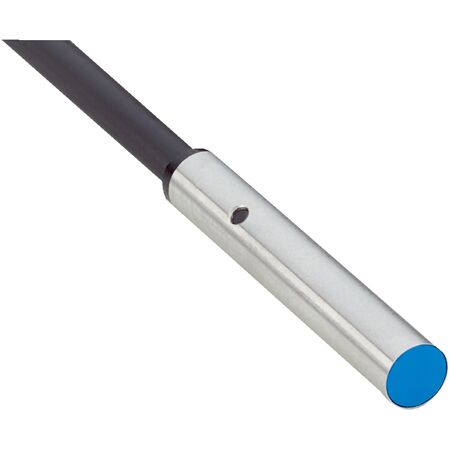

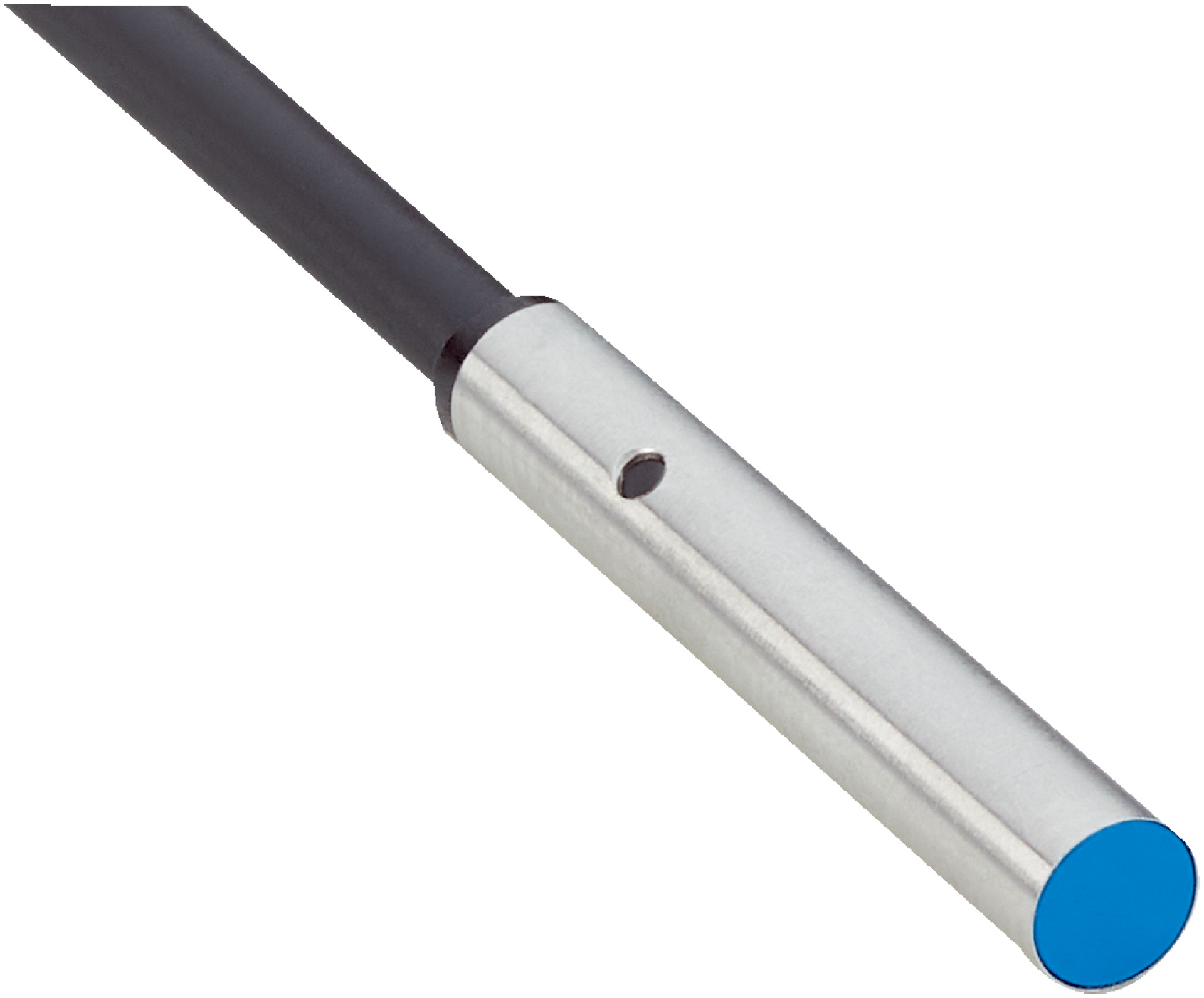

Inductive Proximity Sensor | NPN Normally Open | IP67 Rated | 1.5mm Sensing Range | by SICK
The Inductive Proximity Sensor IHM04-1B5NSVU2S is designed for reliable object detection in industrial automation. With a sensing range of 1.5 mm and an IP67 rated enclosure, it ensures durability in harsh environments. Ideal for metal detection and position sensing, this sensor features a high switching frequency of 4,800 Hz and a robust stainless steel housing, making it perfect for manufacturing lines and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Cable material: PUR, diameter Ø 2.9 mm, conductor size 0.14 mm²
- Switching output: NPN, normally open
- Switching frequency: 4,800 Hz
- Enclosure rating: IP67
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Operating temperature: -25 °C to +70 °C
- Cable length: 2 m
- Dimensions (H x L x W): 4mm x 25mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- High switching frequency of 4,800 Hz
- NPN switching output with normally open function
- Cable connection type, 3-wire, 2 m length
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption contributes to energy efficiency
- Robust design minimizes replacement frequency and material use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM04-1B5NSVU2S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
