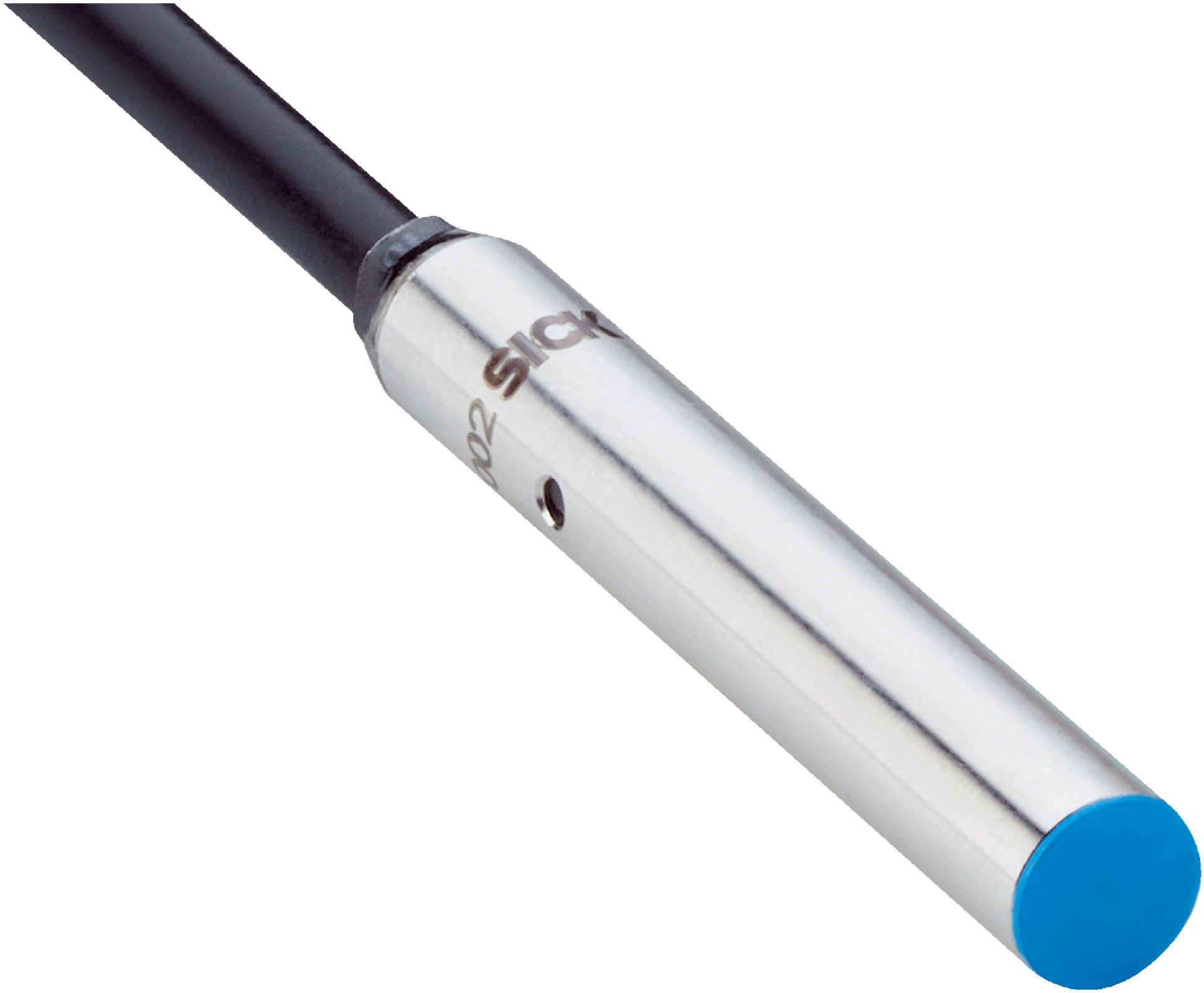

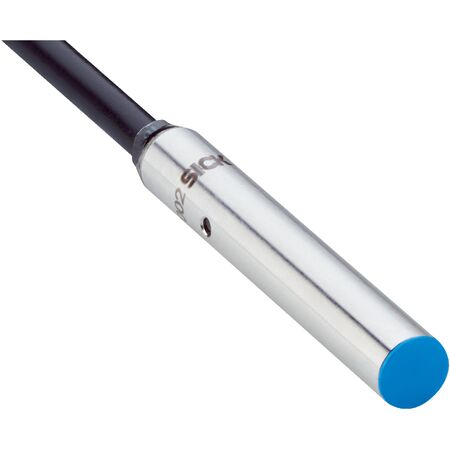

Inductive Proximity Sensor | NPN Normally Open Output | IP67 Rated | Flush Mount Design | by SICK
The Inductive Proximity Sensor IHM06-02BNSVW2S is designed for reliable object detection in industrial automation. With a high switching frequency of 5,000 Hz and an IP67 rated enclosure, it ensures durability and performance in harsh environments. Ideal for metal detection and position sensing, this sensor features a stainless steel housing and a sensing range of 2 mm, making it perfect for seamless integration into machinery and production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 5,000 Hz
- Switching output: NPN, normally open (NO)
- Connection type: 3-wire cable, 2 m length
- Enclosure rating: IP67
- Voltage drop: ≤ 2 V
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current: ≤ 200 mA
- Cable diameter: 3.7 mm
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 6.5mm x 42.3mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type for seamless integration
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- High switching frequency of 5,000 Hz
- NPN normally open switching output
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation systems to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Metal detection in manufacturing processes
- Position sensing in machinery
- Safety and control systems in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-02BNSVW2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
