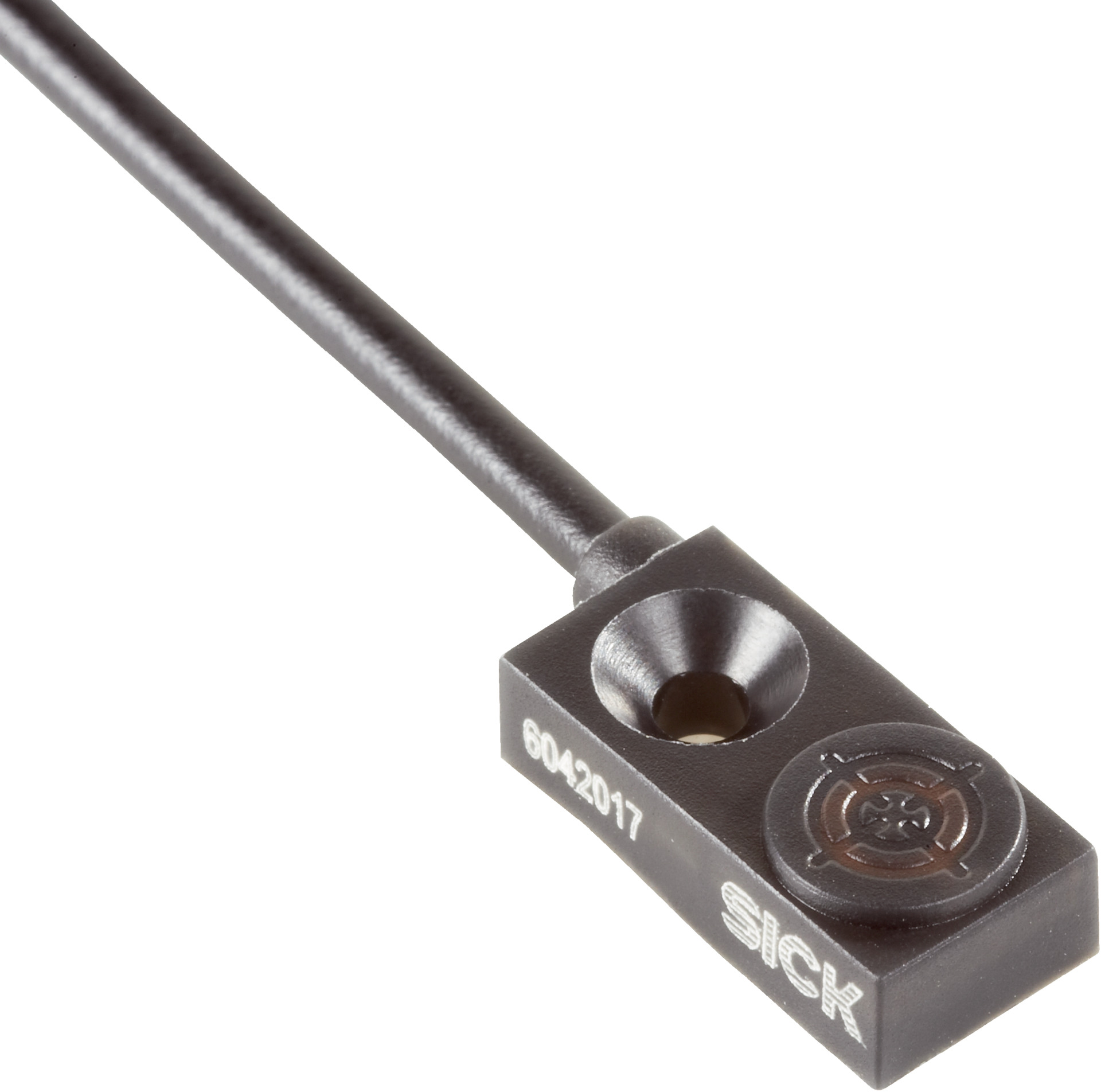

Inductive Proximity Sensor | PNP Output | IP67 Rated | 1.5mm Sensing Range | by SICK
The Inductive Proximity Sensor is designed for industrial automation, featuring a PNP output and a sensing range of 1.5 mm. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection and position sensing in manufacturing lines. Its high switching frequency of 600 Hz and robust design provide precision and durability for safety and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, normally open
- Switching frequency: 600 Hz
- Sensing range (Sn): 1.5 mm
- Safe sensing range (Sa): 1.215 mm
- Electrical wiring: DC 3-wire
- Connection type: Cable with M8, 3-pin plug, 0.3 m length
- Enclosure rating: IP67
- Ripple: ≤ 10%
- Voltage drop: < 1.5 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ±1%
- Temperature drift of sensing range: ±10%
- Continuous current: ≤ 100 mA
- Cable material: PVC
- Cable diameter: 2.5 mm
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Housing and sensing face material: Plastic PA6
- Tightening torque max: ≤ 0.06 Nm
- Dimensions (H x L x W): 16mm x 4mm x 8mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with flush installation
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- High switching frequency of 600 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQ04-1B5PSKRDS inductive sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
