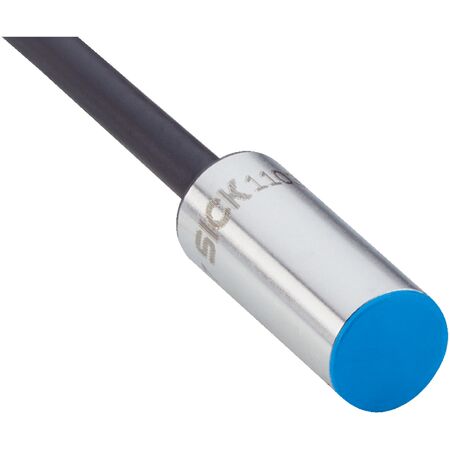

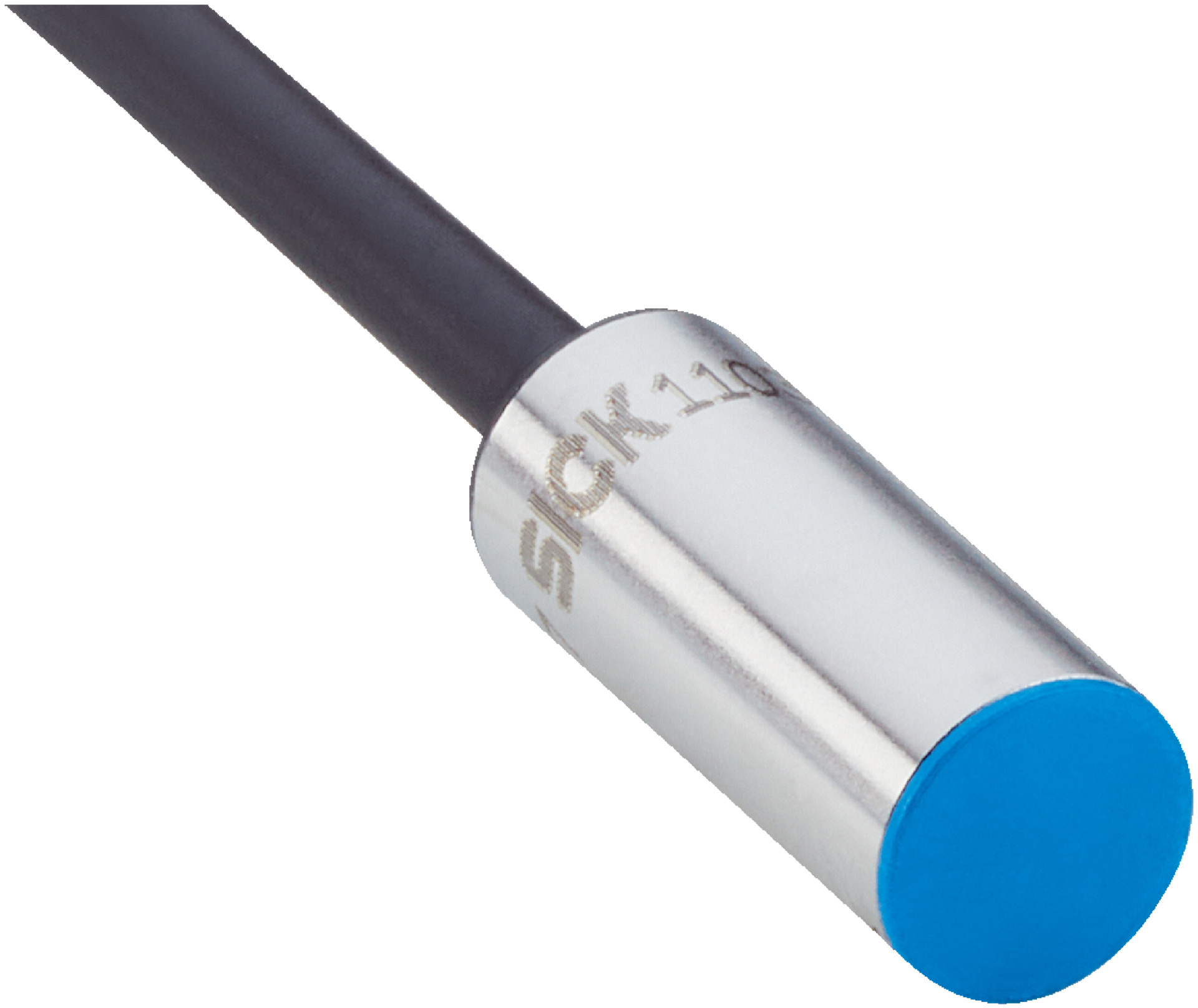

Inductive Proximity Sensor | PNP Output | IP67 Rated | 5,000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor IHM06-1B5POVW2G features a PNP output and an impressive switching frequency of 5,000 Hz, making it ideal for industrial automation and safety control applications. With an IP67 rated enclosure for dust and water protection, this sensor ensures reliable performance in challenging environments. Its extremely short 16 mm housing allows for flush installation, perfect for tight spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 5,000 Hz
- Switching output: PNP, NC function
- Connection type: 3-wire cable, 2 m length
- Enclosure rating: IP67
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Voltage drop: ≤ 2 V
- Ripple: ≤ 20%
- Continuous current Ia: ≤ 200 mA
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ 10%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Cable diameter: Ø 2.9 mm
- Conductor size: 0.14 mm²
- Short-circuit and power-up pulse protection included
- Operating temperature range: -25 °C to +70 °C
- EMC compliant with EN 60947-5-2
- Dimensions (H x L x W): 6.5mm x 16mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Extremely short model with 16 mm housing length
- Flush installation type
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- High switching frequency of 5,000 Hz
- PNP switching output with NC output function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring flush installation sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IHM06-1B5POVW2G inductive sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
