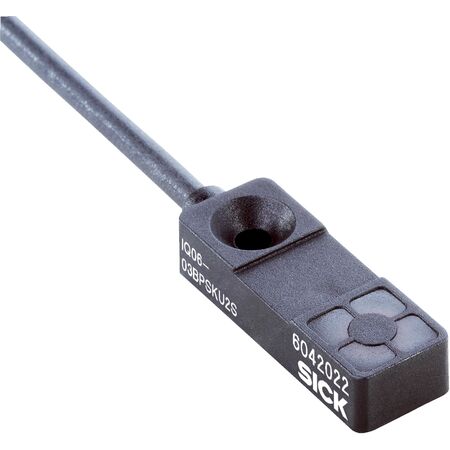

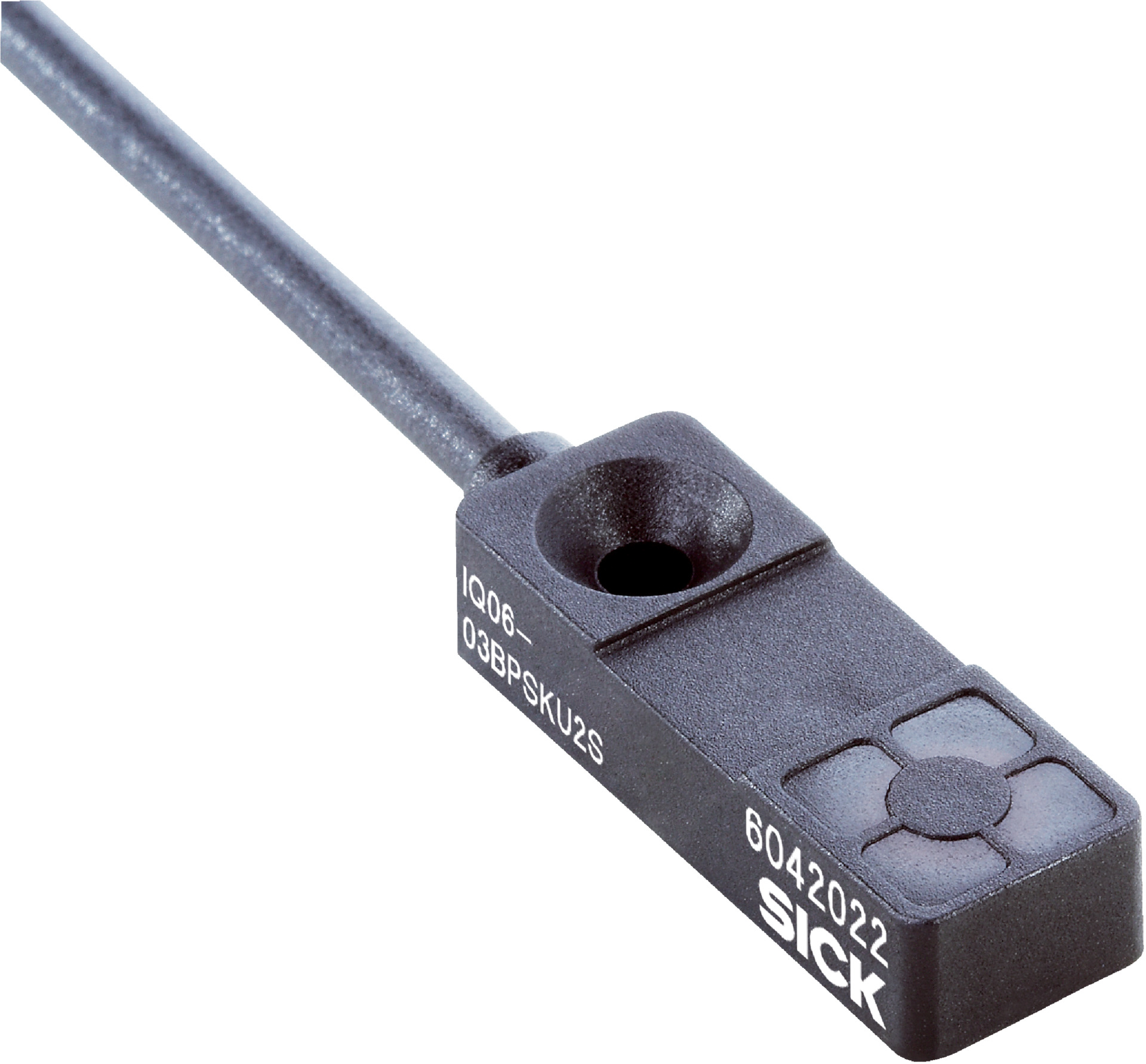

Inductive Proximity Sensor | PNP Normally Open | IP67 Rated | 3mm Sensing Range | by SICK
The Inductive Proximity Sensor is designed for industrial automation, featuring a PNP normally open output and a high switching frequency of 1,000 Hz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection and position sensing in manufacturing lines. Its durable design and low power consumption contribute to energy efficiency and reduced waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 1,000 Hz
- Switching output: PNP, normally open
- Connection type: 3-wire cable, 10 m length, PUR material
- Enclosure rating: IP67
- Voltage drop: < 1.5 V
- Ripple: ≤ 10%
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ±1%
- Temperature drift: ±10%
- Continuous current: ≤ 100 mA
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Operating temperature range: -25 °C to +70 °C
- Housing and sensing face material: Plastic PA6
- Tightening torque max: 0.6 Nm
- Dimensions (H x L x W): 30mm x 6mm x 10mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with flush installation
- Sensing range of 3 mm with safe sensing range of 2.43 mm
- High switching frequency of 1,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Cable connection with 3-wire, 10 m PUR cable
- Short-circuit protection and shock/vibration resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor systems to ensure proper flush mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQ06-03BPSKU6S inductive sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise object detection.
