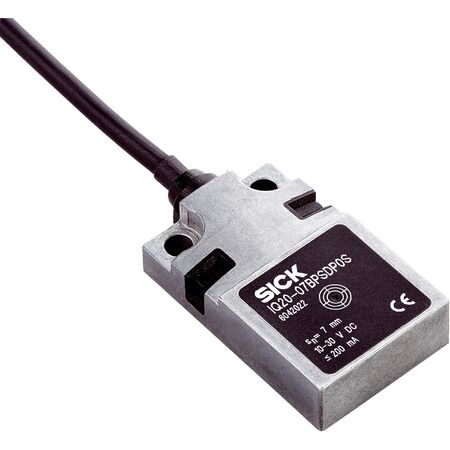

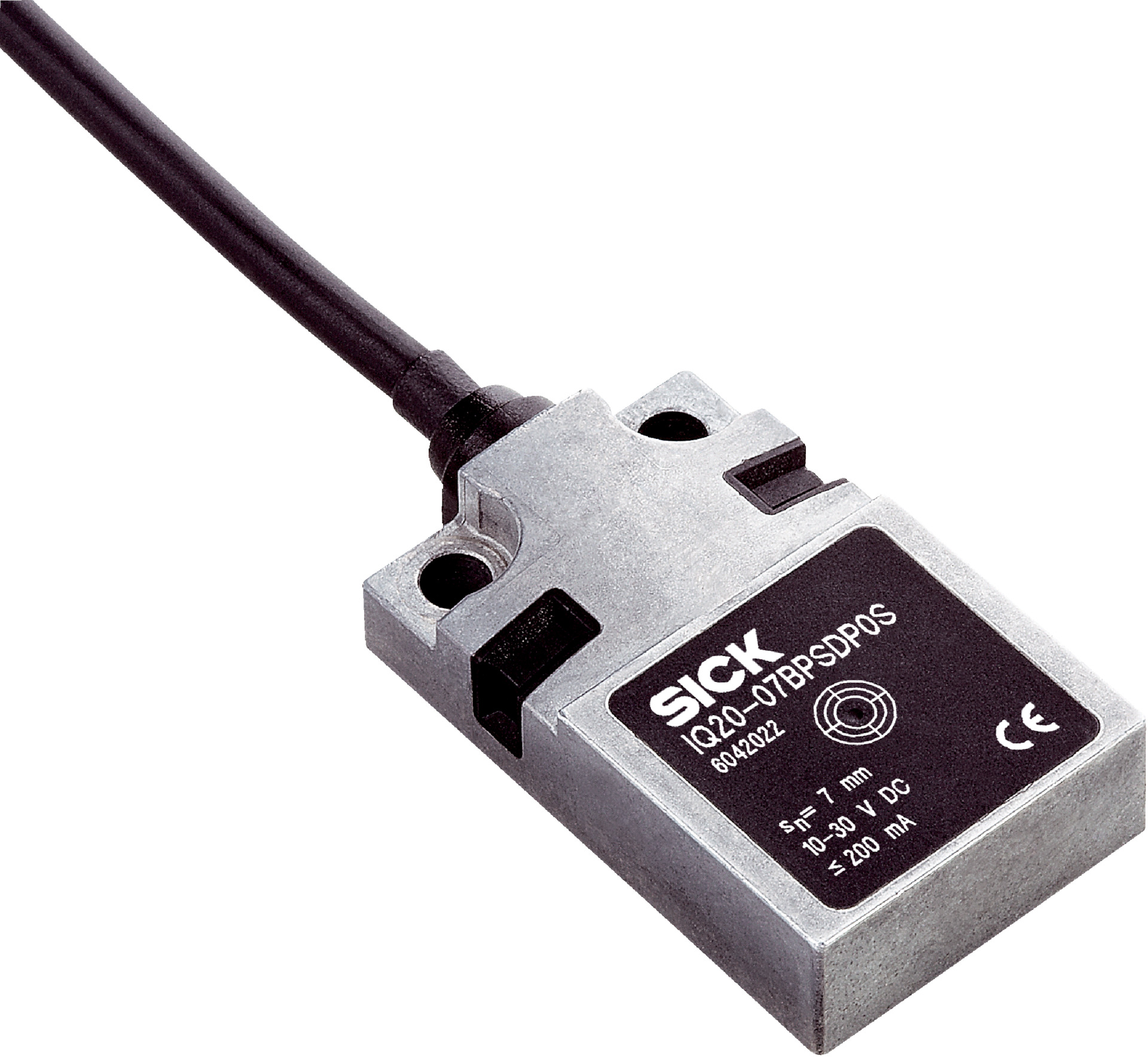

Inductive Proximity Sensor | PNP Output | IP67 Rated | 7mm Sensing Range | by SICK
The Inductive Proximity Sensor IQ20-07BPPDQ0S is designed for reliable object detection in industrial automation. With a PNP complementary output and a sensing range of 7 mm, it ensures high performance in manufacturing process control and safety monitoring. Its IP67 rated enclosure provides excellent dust and water protection, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: < 2.5 V
- Time delay before availability: ≤ 20 ms
- Hysteresis: 1% to 15%
- Reproducibility: ± 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- Cable material: PUR
- Electrical wiring: DC 4-wire
- Switching output: PNP complementary
- Switching frequency: 150 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Housing material: Zinc diecast (GD Zn)
- Sensing face material: Plastic PA12
- MTTFD: 1,080 years
- Mission time: 20 years
- EMC: According to EN 60947-5-2
- Dimensions (H x L x W): 32mm x 8mm x 20mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with flush installation
- Sensing range of 7 mm with safe sensing range of 5.67 mm
- High switching frequency of 150 Hz
- PNP complementary switching output
- Cable with M12 male connector, 4-pin, 0.3 m length
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Robotics and assembly lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable zinc diecast housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage and current consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQ20-07BPPDQ0S inductive sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
