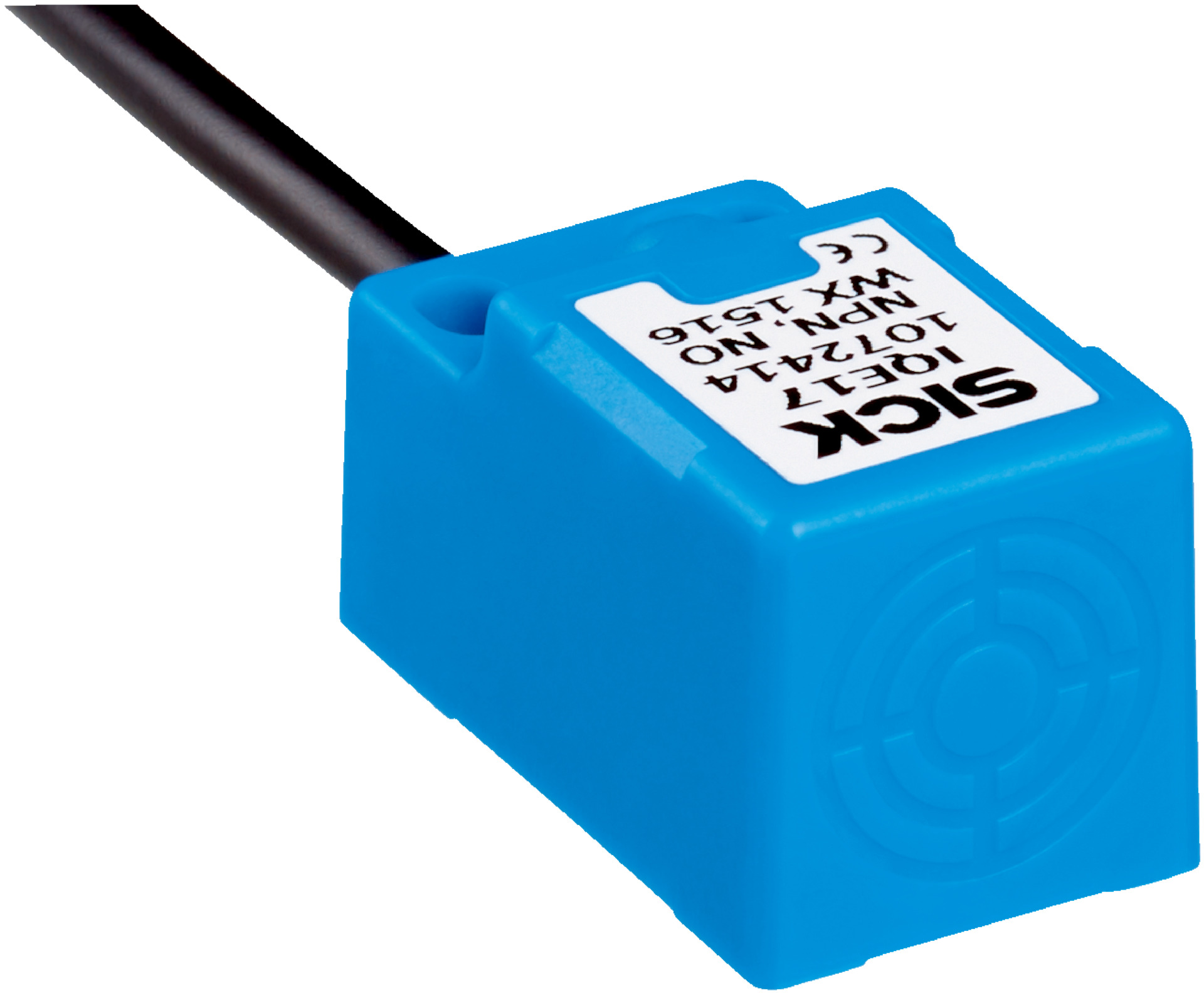

Inductive Proximity Sensor | Rectangular Design | 5mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a 5mm sensing range and a robust rectangular housing. With an IP67 rating for dust and water protection, this sensor is perfect for non-flush mounting applications in manufacturing lines, ensuring reliable performance even in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Rectangular plastic
- Sensing range Sn: 5 mm
- Safe sensing range Sa: 4.05 mm
- Installation type: Non-flush
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: 10 mA
- Cable material: PVC
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Ambient operating temperature: -25 °C to +75 °C
- Tightening torque max: 0.9 Nm
- Dimensions (H x L x W): 17mm x 29.5mm x 17mm
- Weight: 0.1 kg
Key Features
- Rectangular housing design
- Non-flush installation type
- Sensing range of 5 mm with safe sensing range of 4.05 mm
- Switching frequency up to 1,000 Hz
- NPN normally open switching output
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection
- Wide supply voltage range from 10 V DC to 30 V DC
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and secure mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-flush mounting applications requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements, minimizing waste
- Low power consumption with efficient DC 3-wire electrical wiring
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

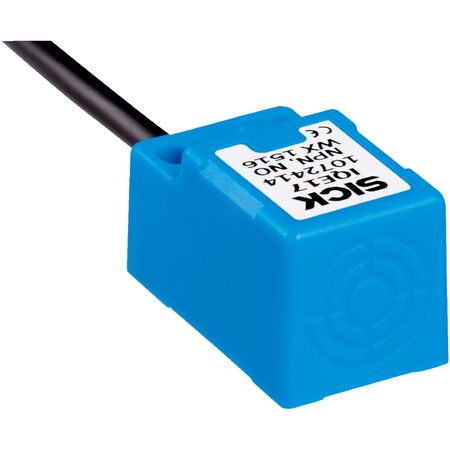

The SICK IQE17-05NNSKW2S inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring reliable object detection.
