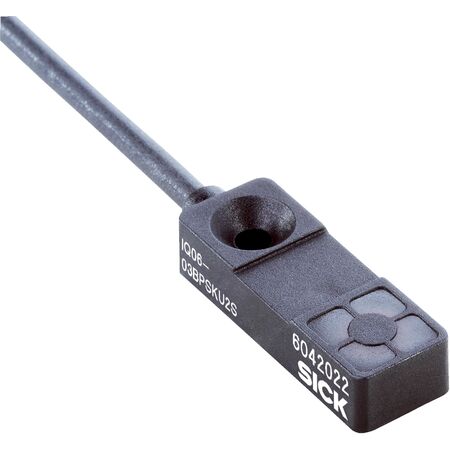

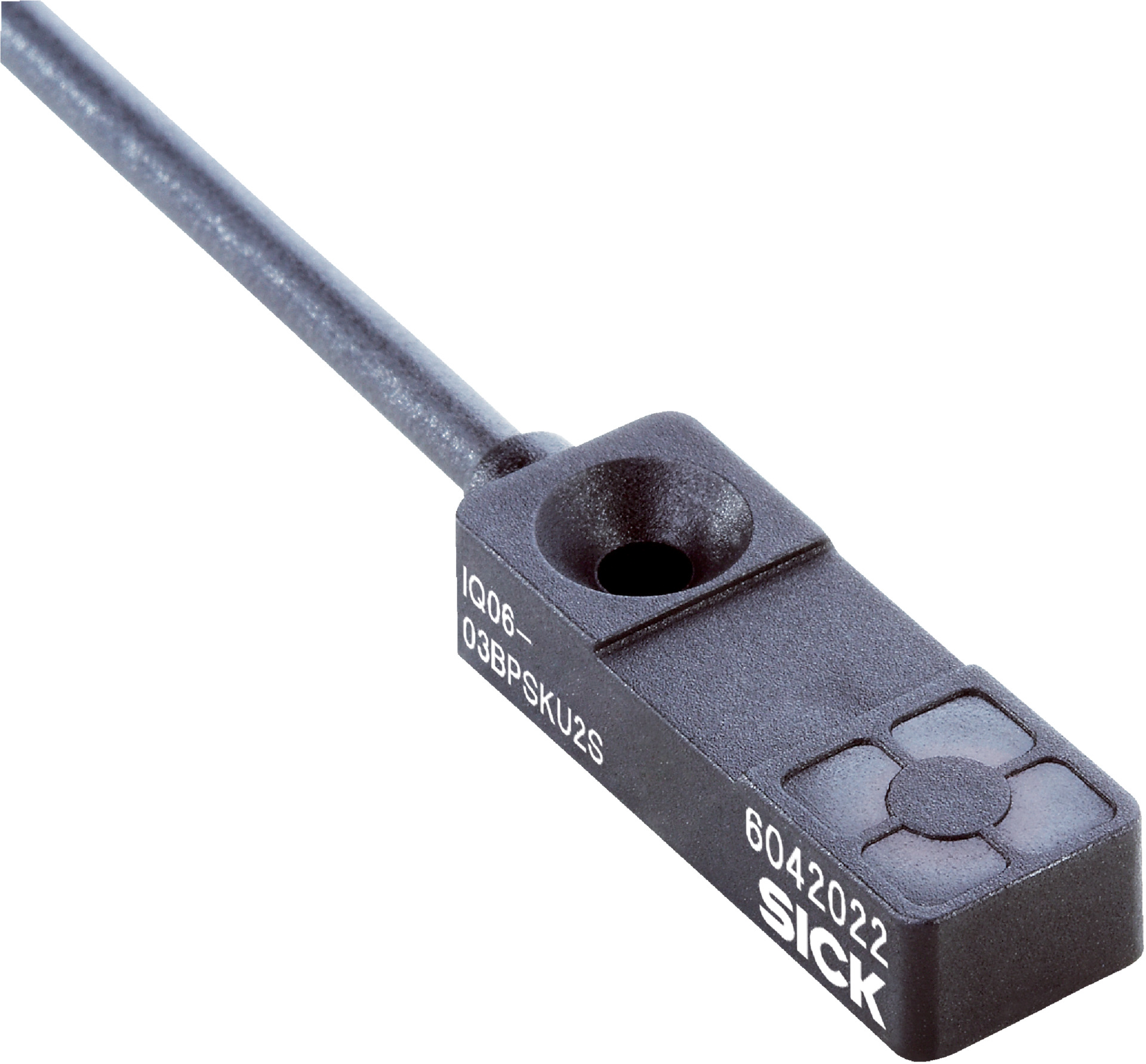

Inductive Proximity Sensor | Rectangular Flush Mount | 3mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a 3mm sensing range and a high switching frequency of 1,000 Hz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing lines and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 1,000 Hz
- Sensing range Sn: 3 mm
- Safe sensing range Sa: 2.43 mm
- Output type: PNP, NC function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Cable: 3-wire, 5 m PUR cable, 0.14 mm² conductor size, 3 mm diameter
- Voltage drop: < 1.5 V
- Ripple: ≤ 10%
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ± 1%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 100 mA
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- Housing material: Plastic PA6
- Sensing face material: Plastic PA6
- Tightening torque max: 0.6 Nm
- MTTFD: 1,328 years
- Mission time: 20 years
- Dimensions (H x L x W): 30mm x 6mm x 10mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with flush installation
- Sensing range of 3 mm with safe sensing range of 2.43 mm
- High switching frequency of 1,000 Hz
- PNP switching output with NC output function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes environmental impact through extended service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IQ06-03BPOKU5S inductive sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise object detection.
