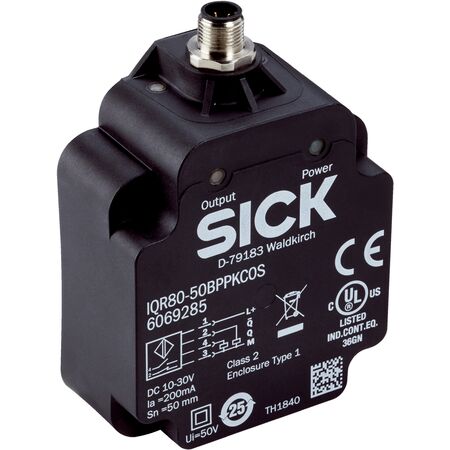

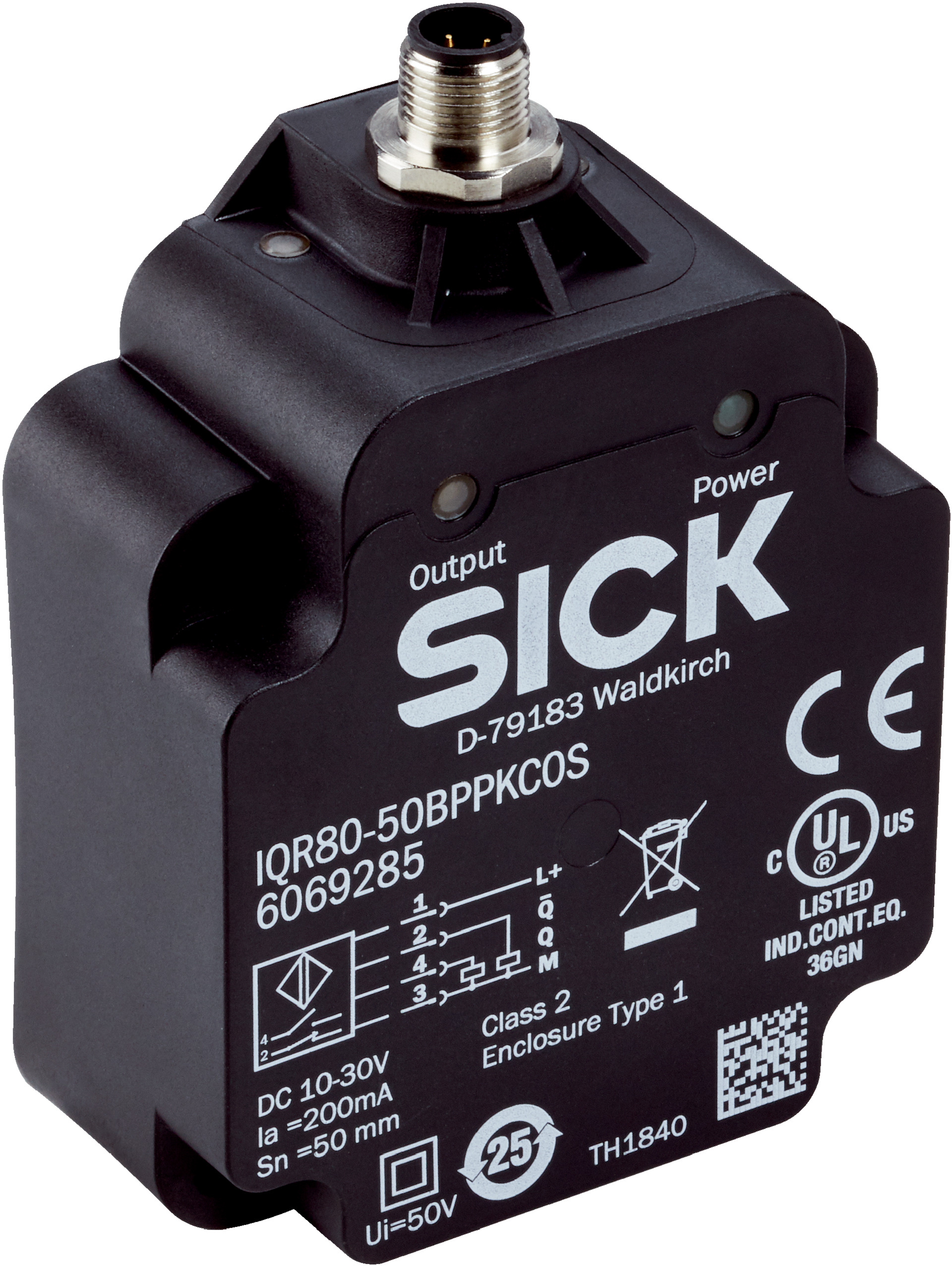

Inductive Proximity Sensor | Rectangular Flush Mount | 50mm Sensing Range | IP68 Rated | by SICK
The Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a rectangular flush mount design and a sensing range of 50 mm. With a high switching frequency of 250 Hz and IP68 protection, it's perfect for harsh environments and welding applications, ensuring durability and efficiency in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 1.8 V
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ ±10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 15 mA
- Off-state current: ≤ 0.1 mA
- Magnetic field strength tolerance: ≤ 100 mT
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Housing material: Plastic, PBT
- Sensing face material: Plastic, PBT
- Tightening torque max: 4 Nm
- Protection class: II
- Switching output: PNP complementary
- Connection type: Male connector M12, 4-pin
- Switching frequency: 250 Hz
- Enclosure rating: IP68
- MTTFD: 139 years
- Mission time: 20 years
- Dimensions (H x L x W): 40mm x 114mm x 80mm
- Weight: 0.2 kg
Key Features
- Rectangular housing with flush installation
- Sensing range of 50 mm with safe sensing range of 40.5 mm
- High switching frequency of 250 Hz
- PNP complementary switching output
- Male connector M12, 4-pin connection
- Magnetic-field-resistant with reduction factor 1
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature from –25 °C to +70 °C
- Protection class II and enclosure rating IP68
- Short-circuit protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper flush mounting and electrical connection.
Applications
- Industrial automation for object detection
- Welding range applications
- Harsh environments requiring IP68 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IQR80-50BPPKC0S inductive sensor is available for immediate purchase, ideal for industrial automation and welding range applications.
