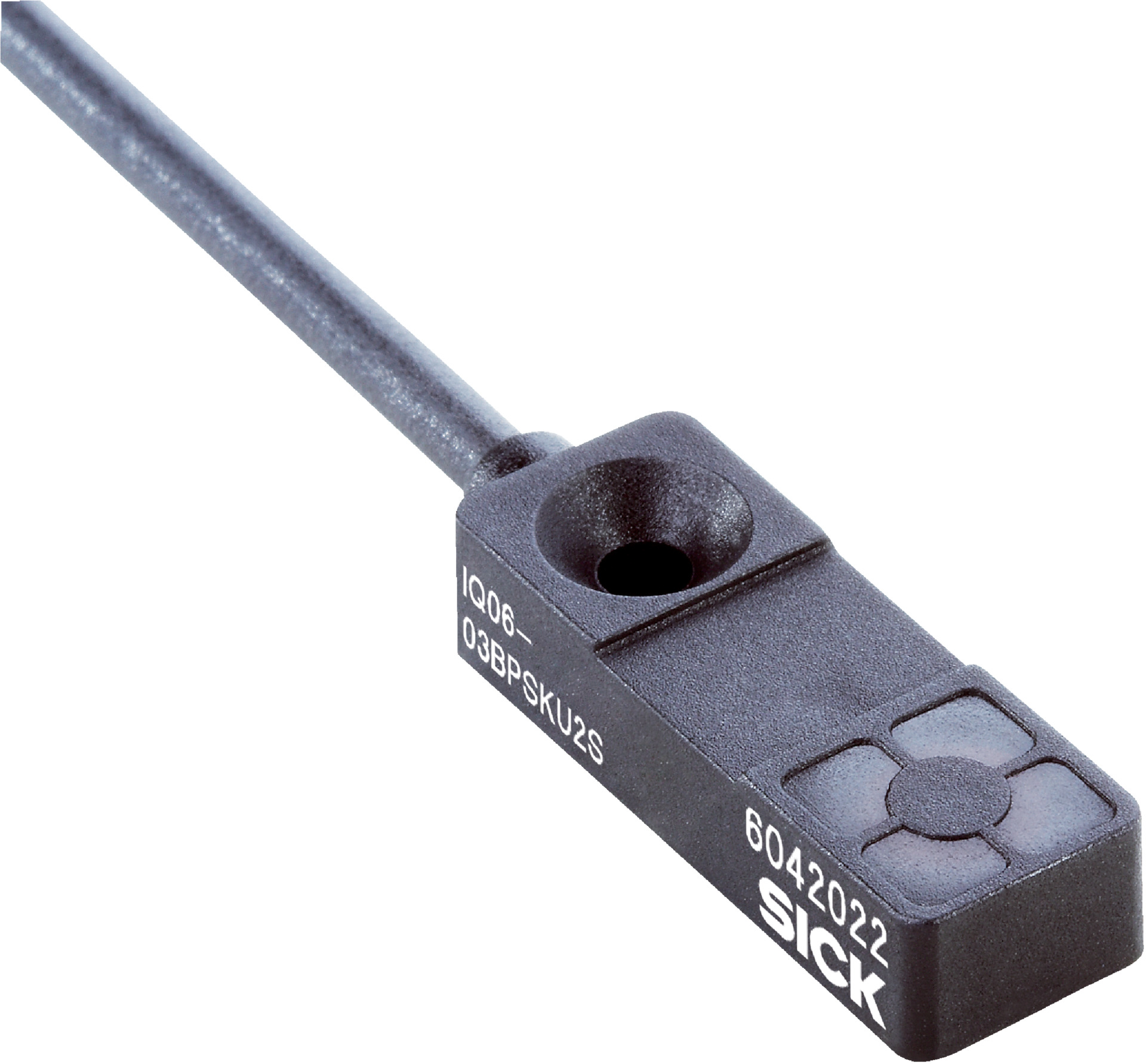

Inductive Proximity Sensor | Rectangular Housing | 3mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a 3mm sensing range and a high switching frequency of 1,000 Hz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing lines and safety systems. Built for durability and efficiency, this sensor is a must-have for any control application.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Rectangular plastic PA6
- Sensing range Sn: 3 mm
- Safe sensing range Sa: 2.43 mm
- Installation type: Flush
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 10 m PUR cable
- Switching output: PNP, NC function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: < 1.5 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ± 1%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 100 mA
- Cable diameter: Ø 3 mm
- Short-circuit protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Tightening torque max: 0.6 Nm
- Dimensions (H x L x W): 30mm x 6mm x 10mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with flush installation
- Sensing range of 3 mm with safe sensing range of 2.43 mm
- High switching frequency of 1,000 Hz
- PNP switching output with NC output function
- IP67 rated enclosure for dust and water protection
- Cable connection type with 3-wire, 10 m PUR cable
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQ06-03BPOKU6S inductive sensor is available for immediate purchase, ideal for industrial automation and control applications.
