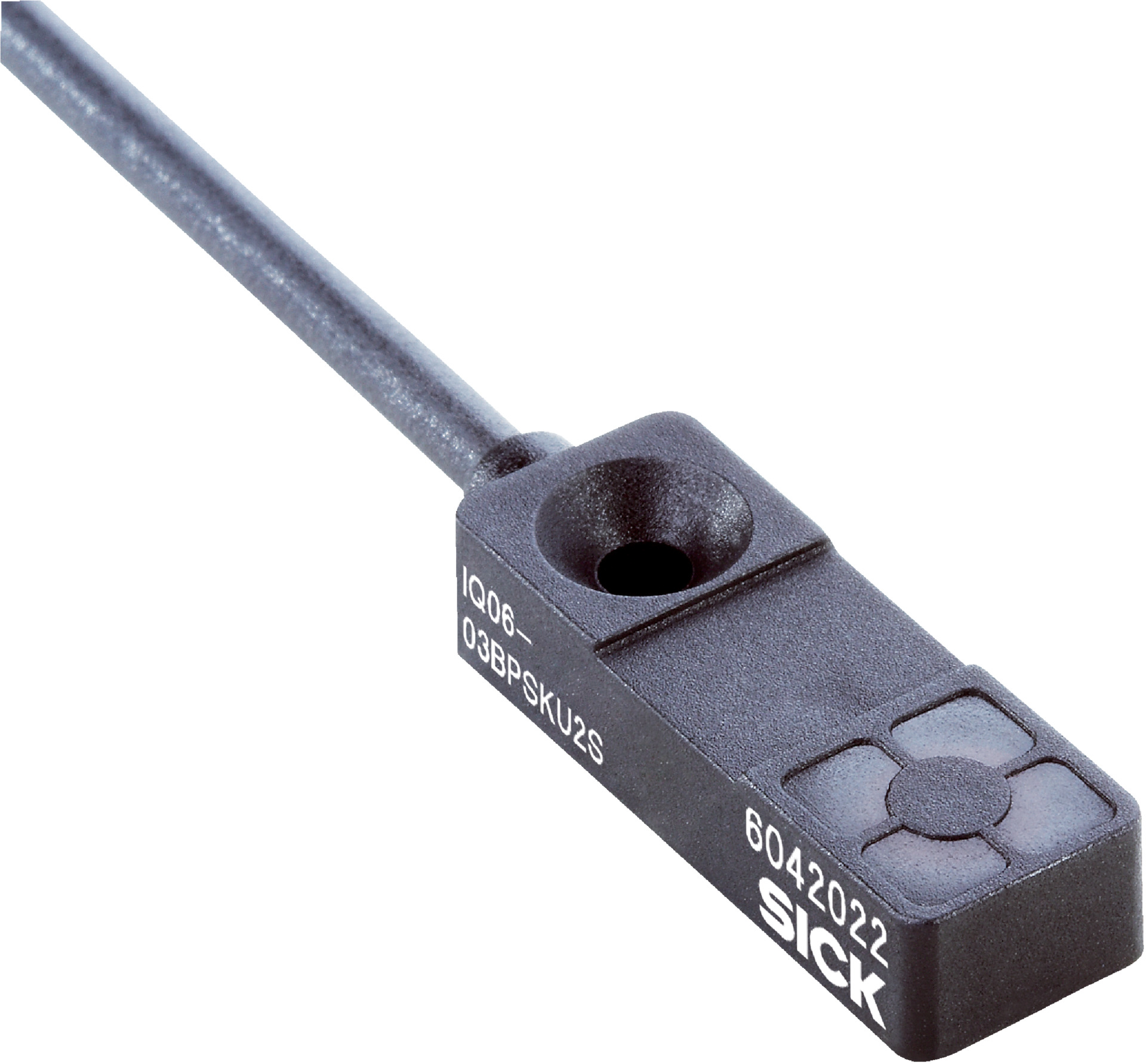

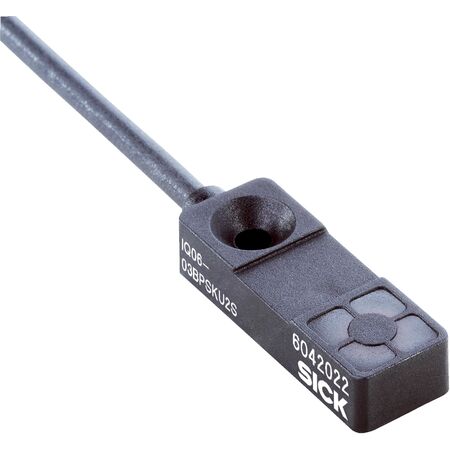

Inductive Proximity Sensor | Rectangular Housing | IP67 Rated | 3mm Sensing Range | by SICK
The Inductive Proximity Sensor IQ06-03BPOKU2S features a rectangular housing designed for flush installation, with a sensing range of 3 mm and an IP67 rated enclosure for dust and water protection. Ideal for industrial automation and safety applications, this sensor operates within a wide temperature range of -25 °C to +70 °C, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: < 1.5 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ± 1%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 100 mA
- Cable: PUR, 3-wire, 2 m length, 0.14 mm² conductor size, 3 mm diameter
- Housing material: Plastic PA6
- Sensing face material: Plastic PA6
- Tightening torque max: 0.6 Nm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 30mm x 6mm x 10mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with flush installation
- Sensing range of 3 mm with safe sensing range of 2.43 mm
- High switching frequency of 1,000 Hz
- PNP switching output with NC function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit protection included
- Wide operating temperature range from –25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQ06-03BPOKU2S inductive sensor is available for immediate purchase, ideal for industrial automation and safety applications.
