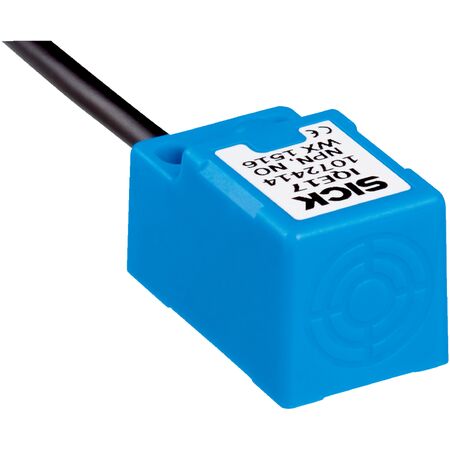

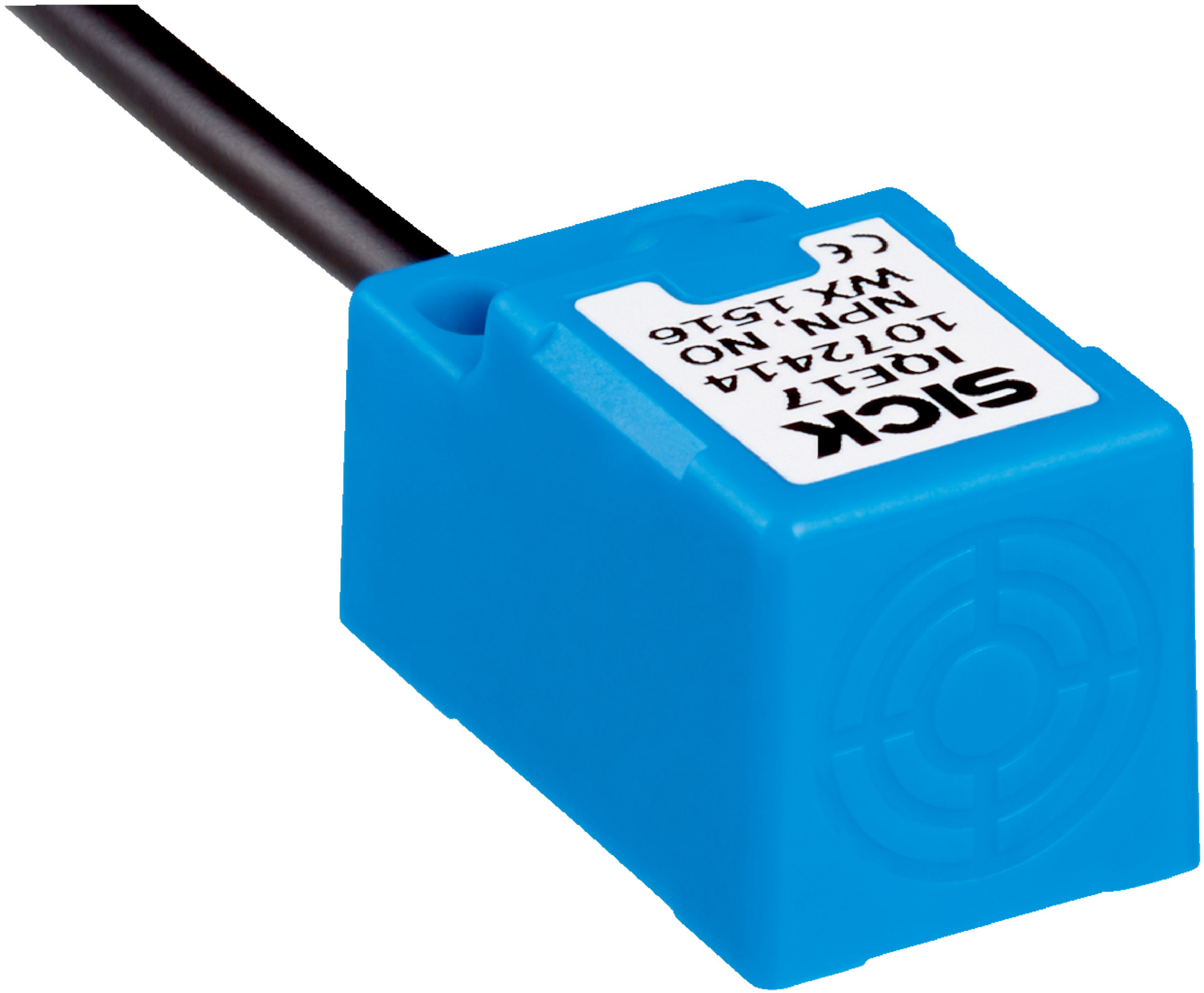

Inductive Proximity Sensor | Rectangular Housing | IP67 Rated | 7mm Sensing Range | 1000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor is designed for industrial automation, featuring a robust rectangular housing with an IP67 rating for superior protection. With a sensing range of 7 mm and a high switching frequency of 1,000 Hz, it ensures fast and reliable object detection. Ideal for manufacturing process control and safety monitoring, this sensor is built to withstand harsh environments, making it perfect for material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Rectangular plastic
- Sensing range Sn: 7 mm
- Safe sensing range Sa: 5.67 mm
- Installation type: Non-flush
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 2 m PVC
- Switching output: NPN, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: < 3%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Ambient operating temperature: -25 °C to +75 °C
- Tightening torque max: 0.9 Nm
- Dimensions (H x L x W): 17mm x 29.5mm x 17mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP67 enclosure rating for robust protection
- Non-flush installation type with 7 mm sensing range
- High switching frequency of 1,000 Hz for fast response
- NPN normally open (NO) switching output
- Cable connection with 3-wire, 2 m PVC cable
- Short-circuit and power-up pulse protection included
- Wide supply voltage range from 10 V DC to 30 V DC
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces environmental damage and extends product life
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQE17-07NNSKW2S inductive sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
