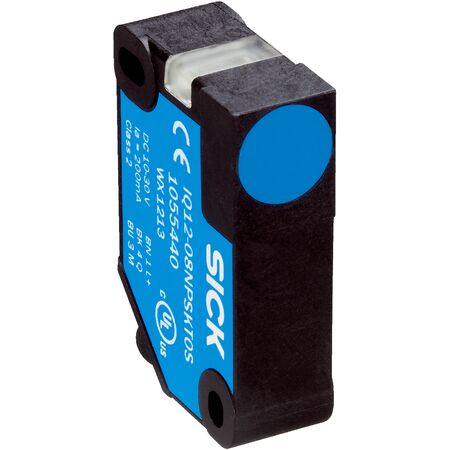

Inductive Proximity Sensor | Rectangular IP68 Housing | 8mm Sensing Range | 2000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a robust rectangular IP68 housing and an 8mm sensing range. With a high switching frequency of 2000 Hz, it ensures fast response times, making it ideal for position sensing in manufacturing lines and harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Rectangular plastic VISTAL® material
- Sensing range Sn: 8 mm
- Safe sensing range Sa: 6.48 mm
- Installation type: Non-flush
- Switching frequency: 2,000 Hz
- Connection type: Cable with M12 male connector, 4-pin, 2 m
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 3 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: 10 mA
- Cable material: PVC
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +75 °C
- Tightening torque max: ≤ 1 Nm
- Dimensions (H x L x W): 40mm x 26mm x 12mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP68 rated enclosure for robust protection
- Non-flush installation type with 8 mm sensing range
- High switching frequency of 2,000 Hz for fast response
- PNP switching output with normally open (NO) function
- Cable with M12 male connector, 4-pin, 2 m length
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact detection in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP68 housing reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQ12-08NPSKQ2SS09 inductive sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
