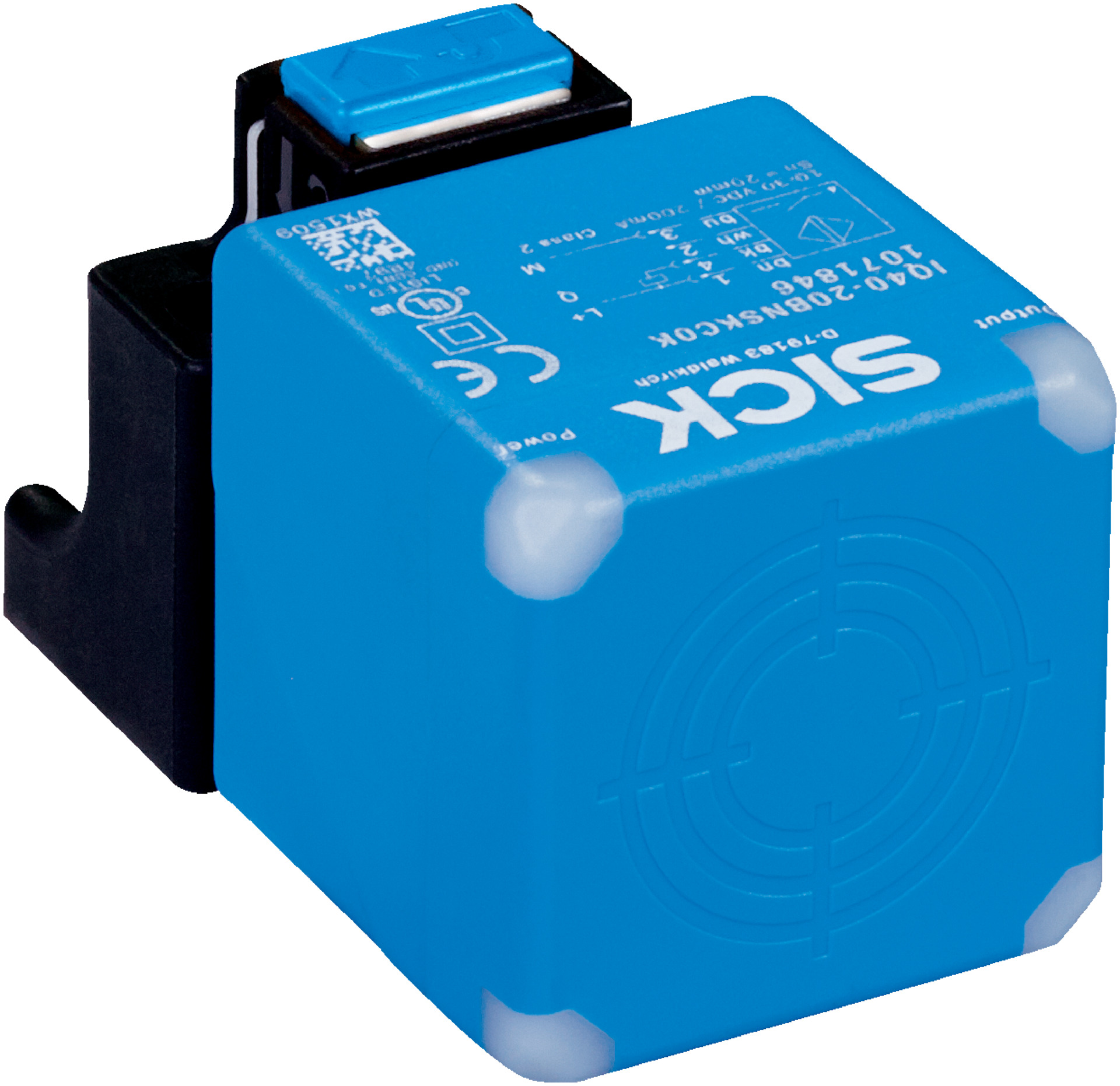

Inductive Proximity Sensor | Short-Body Design | 40mm Sensing Range | PNP Output | by SICK
The Inductive Proximity Sensor is designed for industrial automation, featuring a short-body housing and a sensing range of 40 mm. With a PNP output and high protection ratings of IP67, IP68, and IP69K, it excels in harsh environments. Ideal for non-flush mounting applications, this sensor ensures reliable object detection and is built to withstand extreme temperatures from -25 °C to +85 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10 V pp
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 6%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: 12.5 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +85 °C
- Ambient storage temperature: –40 °C to +85 °C
- Housing material: Plastic, PA 66
- Sensing face material: Plastic, PA 66
- Tightening torque max: 1.8 Nm
- Protection class: II
- Switching output: PNP, NC function
- Connection type: Male connector M12, 4-pin
- Switching frequency: 100 Hz
- Sensing range Sn: 40 mm
- Safe sensing range Sa: 32.4 mm
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Sensing range of 40 mm with safe sensing range of 32.4 mm
- Non-flush installation type
- Switching frequency of 100 Hz
- PNP switching output with NC function
- Male connector M12, 4-pin connection
- High protection rating: IP67, IP68, IP69K
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +85 °C
- Plastic PA 66 housing and sensing face material
- Short-circuit and power-up pulse protection included
- Push-lock mounting system supplied
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Harsh environment sensing with IP67, IP68, IP69K protection
- Non-flush mounting applications requiring short sensing range
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Robust protection ratings minimize environmental damage risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQ40-40NPOKC0K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
