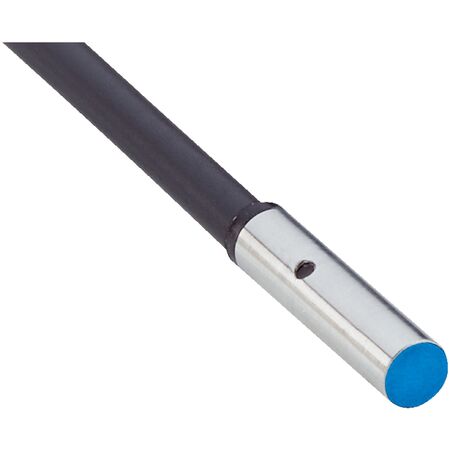

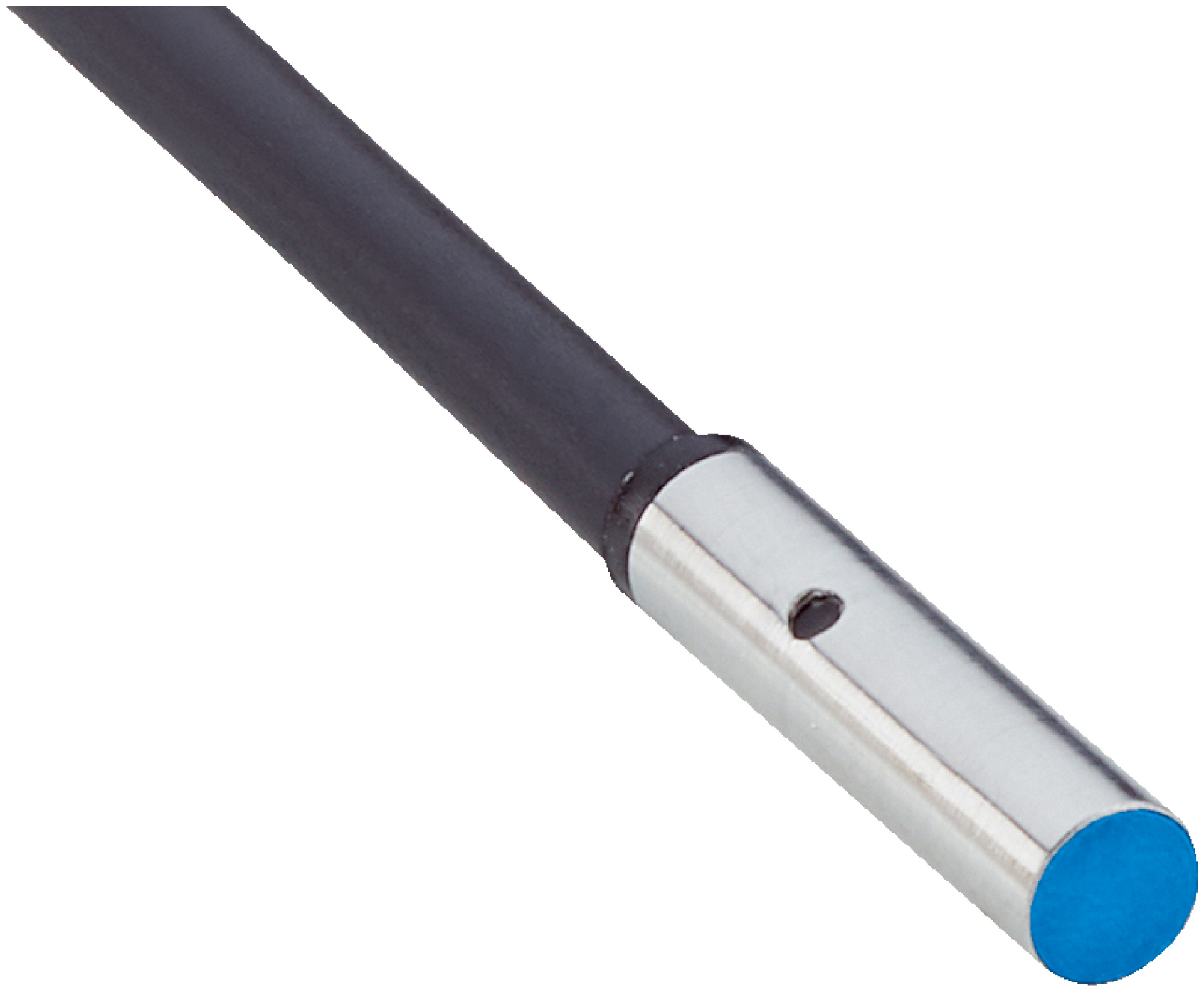

Inductive Proximity Sensor | Short-body Design | 4,200 Hz Switching Frequency | IP67 Rated | by SICK
The Inductive Proximity Sensor is designed for precision in industrial automation, featuring a short-body design with a sensing range of 1 mm and a high switching frequency of 4,200 Hz. Ideal for applications like object detection and metal sensing, this sensor is built to withstand harsh environments with its IP67 rated enclosure and durable stainless steel housing, ensuring reliable performance in manufacturing lines and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range Sn: 1 mm
- Safe sensing range Sa: 0.81 mm
- Switching frequency: 4,200 Hz
- Connection type: Cable, 3-wire, 2 m PUR cable
- Switching output: NPN, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Supply voltage: 10 V DC to 30 V DC
- Voltage ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift: ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Cable diameter: 2.5 mm
- Cable conductor size: 0.08 mm²
- Dimensions (H x L x W): 3mm x 12mm x 3mm
- Weight: 0.1 kg
Key Features
- Short-body housing with 3 mm diameter
- Flush installation type
- High switching frequency of 4,200 Hz
- NPN normally open switching output
- Visual adjustment indicator for easy setup
- IP67 rated enclosure for dust and water protection
- Cable connection with 3-wire, 2 m PUR cable
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
- Stainless steel V2A housing for durability
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with inductive sensors and industrial electrical standards to ensure proper wiring and safety compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage and current consumption
- Long service life minimizes environmental impact from disposal
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IHM03-01BNSVU2K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
