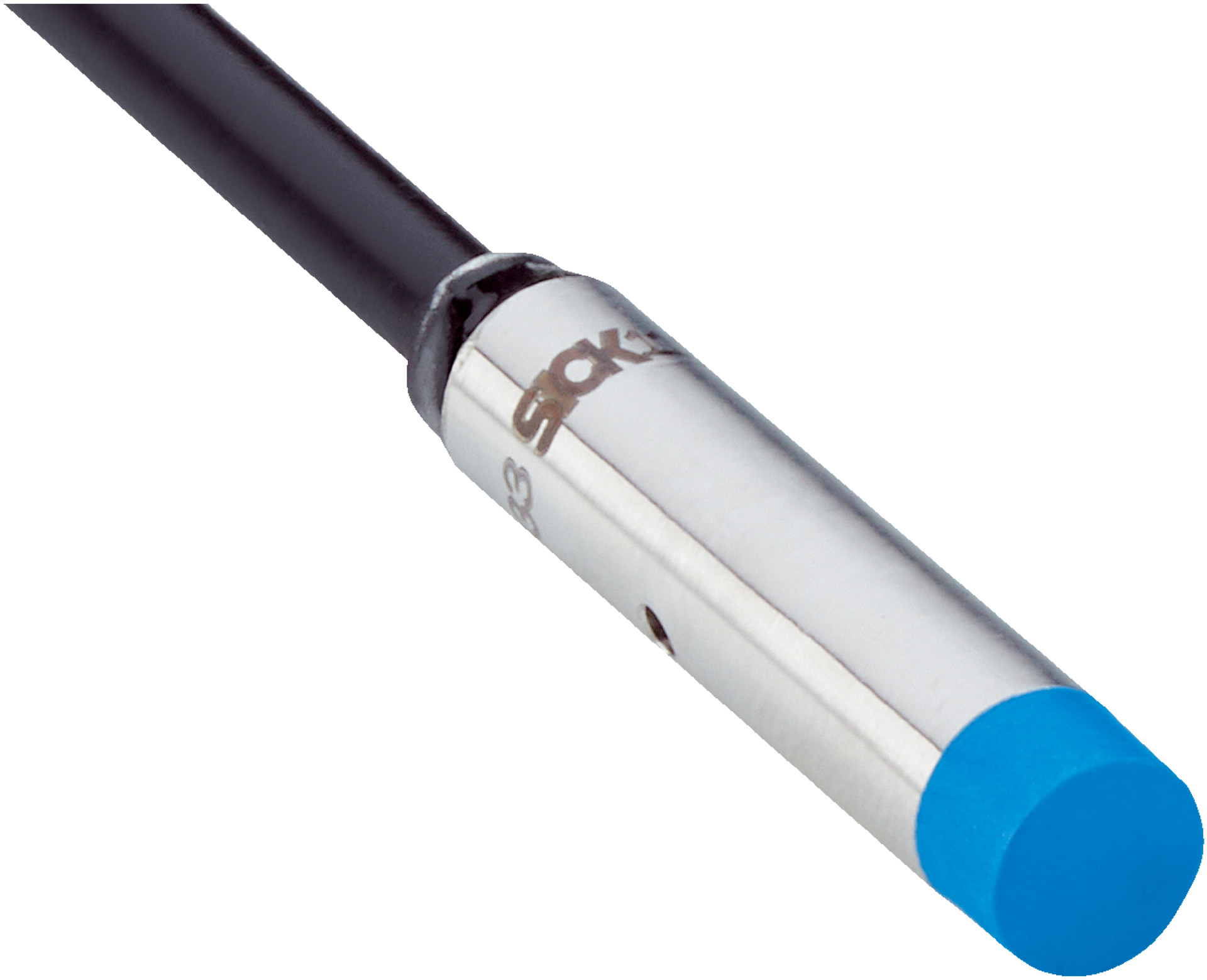

Inductive Proximity Sensor | Short-body Design | 6 mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor is designed for industrial automation, featuring a short-body design with a 6 mm sensing range and high switching frequency of 1,000 Hz. Ideal for non-flush mounting applications, this sensor is built to withstand harsh environments with its IP67 rated enclosure, ensuring reliable performance in object detection and position sensing tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Switching frequency: 1,000 Hz
- Continuous current: ≤ 200 mA
- Electrical wiring: DC 3-wire
- Switching output: PNP, normally open
- Cable diameter: 3.7 mm, PVC material
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25°C to +70°C
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 31.5mm x 31.5mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing with 6.5 mm diameter
- Sensing range of 6 mm with safe sensing range of 4.86 mm
- Non-flush installation type
- High switching frequency of 1,000 Hz
- PNP switching output with normally open function
- Cable with M8, 3-pin connector, 0.2 m length
- Visual adjustment indicator and IO-Link communication
- Triple sensing range capability
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Non-flush mounting sensing applications
- Use in harsh environments requiring IP67 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency
- Energy-efficient operation with low power consumption
- Long service life minimizes electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

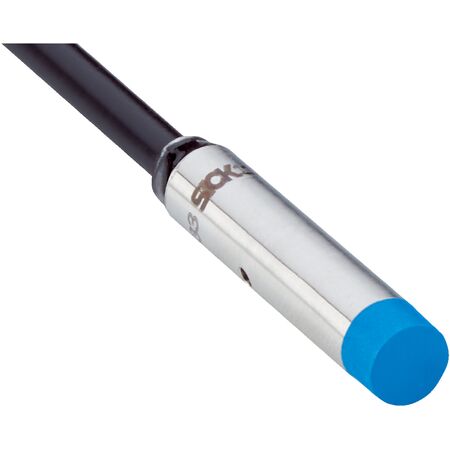

The SICK IHM06-06NPSVR8K inductive sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable and precise detection.
