Inductive Proximity Sensor | Short-body Housing | PNP Output | IP68 & IP69K Rated | by SICK

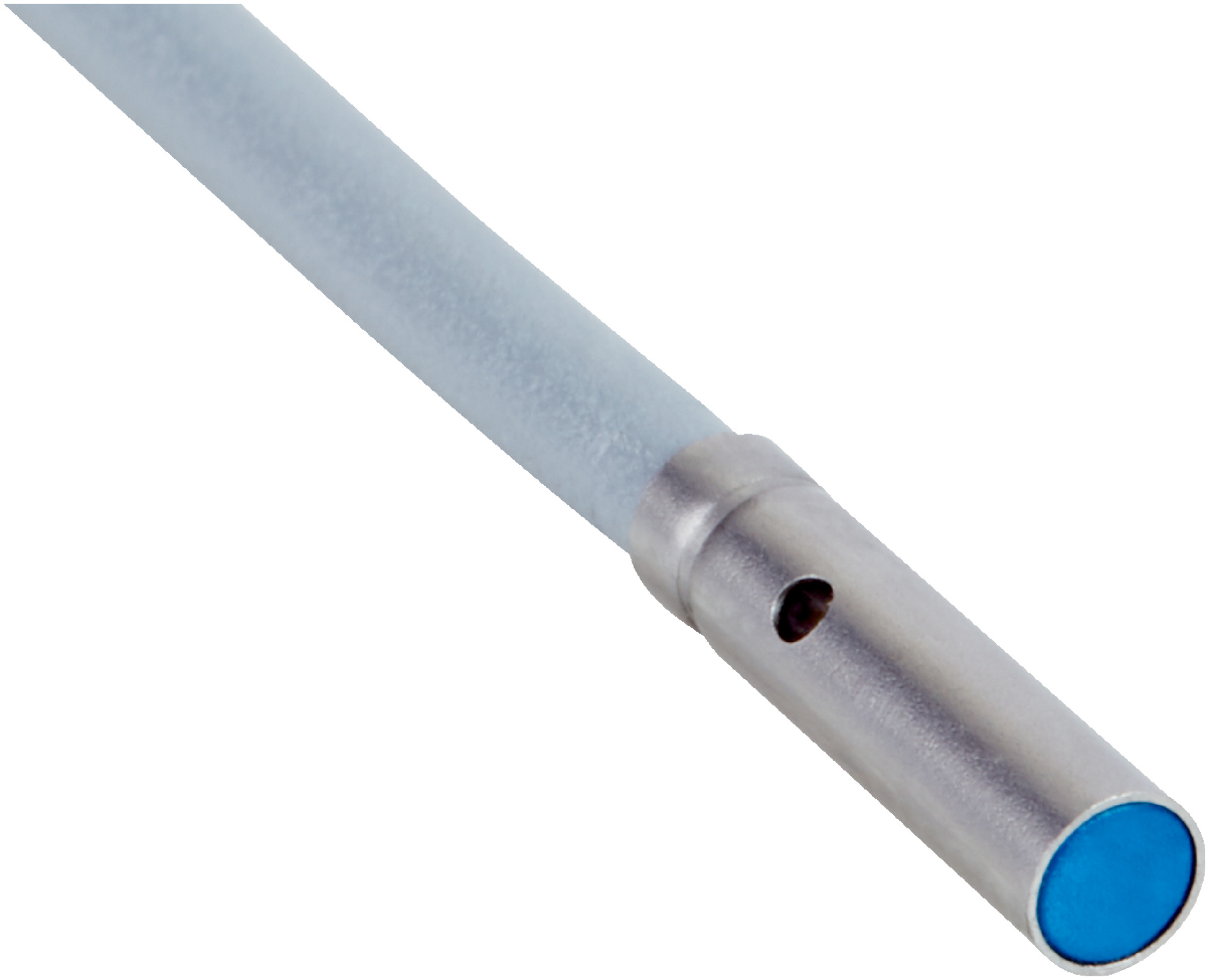

The Inductive Proximity Sensor is designed for industrial automation, featuring a short-body housing with a 3 mm diameter and a high switching frequency of 8,000 Hz. With PNP output and IP68/IP69K ratings, it excels in harsh environments, making it ideal for machine safety and control systems. Built with durable stainless steel and ceramics, this sensor ensures reliable performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range Sn: 0.8 mm
- Safe sensing range Sa: 0.648 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of Sr: ± 10%
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR, diameter Ø 2.6 mm
- Conductor size: 0.055 mm²
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Pressure resistance: ≤ 150 bar
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Ceramics, ZrO2
- Short-circuit protection: Yes
- EMC compliance: EN 60947-5-2, IEC 61000-4-2 (Testlevel 2), IEC 61000-4-4 (Testlevel 2)
- Dimensions (H x L x W): 12mm x 12mm x 3mm
- Weight: 0.1 kg
Key Features
- Short-body housing with 3 mm diameter
- Flush installation type
- High switching frequency of 8,000 Hz
- PNP switching output with normally open function
- Cable connection, 3-wire, 2 m length
- High pressure resistance up to 150 bar
- Enclosure rating IP68 and IP69K for harsh environments
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of ceramics (ZrO2)
- Short-circuit protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper function and compliance.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

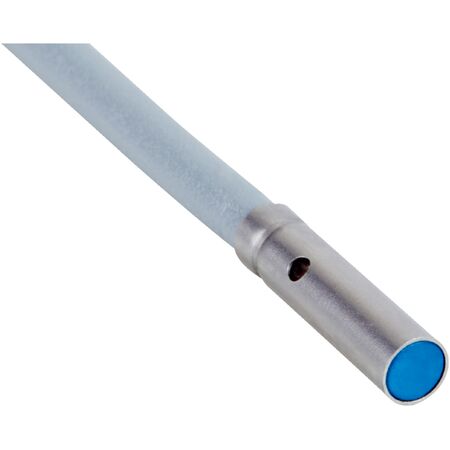

The SICK IHP03-0B8PSVU2K inductive proximity sensor is available for immediate purchase. Ideal for industrial automation and machine safety applications.
