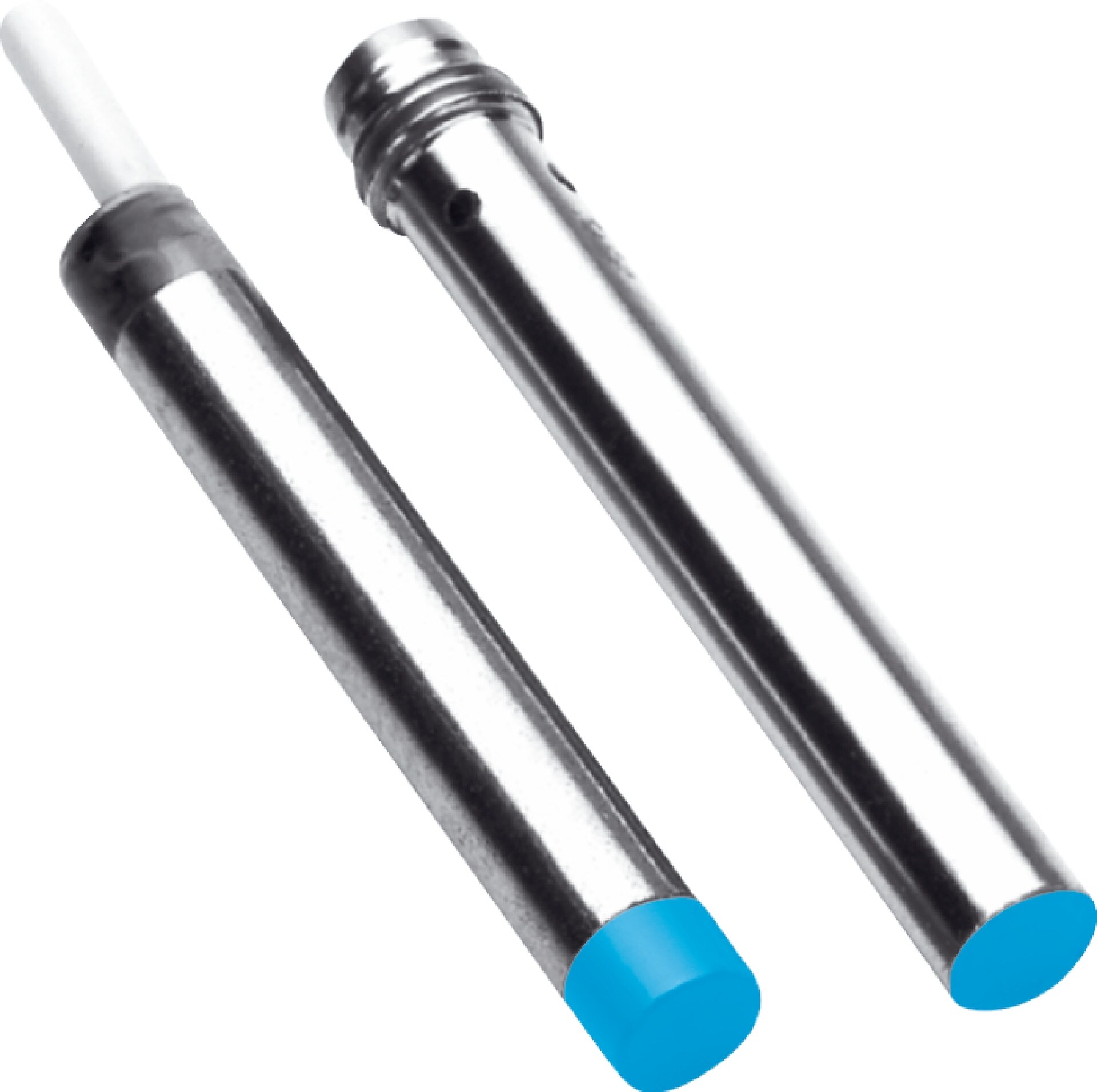

Inductive Proximity Sensor | Short-Body Design | IP67 Rated | 3000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor is designed for precision in industrial automation, featuring a short-body housing and an impressive switching frequency of 3000 Hz. With an IP67 rating for dust and water protection, this sensor is perfect for metal detection and position sensing in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 3,000 Hz
- Switching output: NPN, normally open
- Connection: 3-wire cable, 2 m length, PVC material
- Enclosure rating: IP67
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, POM
- Voltage drop: ≤ 2 V
- Ripple: ≤ 10%
- Continuous current: ≤ 200 mA
- Shock resistance: 30 g, 11 ms
- Operating temperature: -25 °C to +70 °C
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 6.5mm x 35.5mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Quasi-flush installation type
- High switching frequency of 3,000 Hz
- NPN switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable connection type with 3-wire, 2 m PVC cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Metal detection in assembly lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation with low voltage DC supply
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IH06-02BNS-VWK inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
