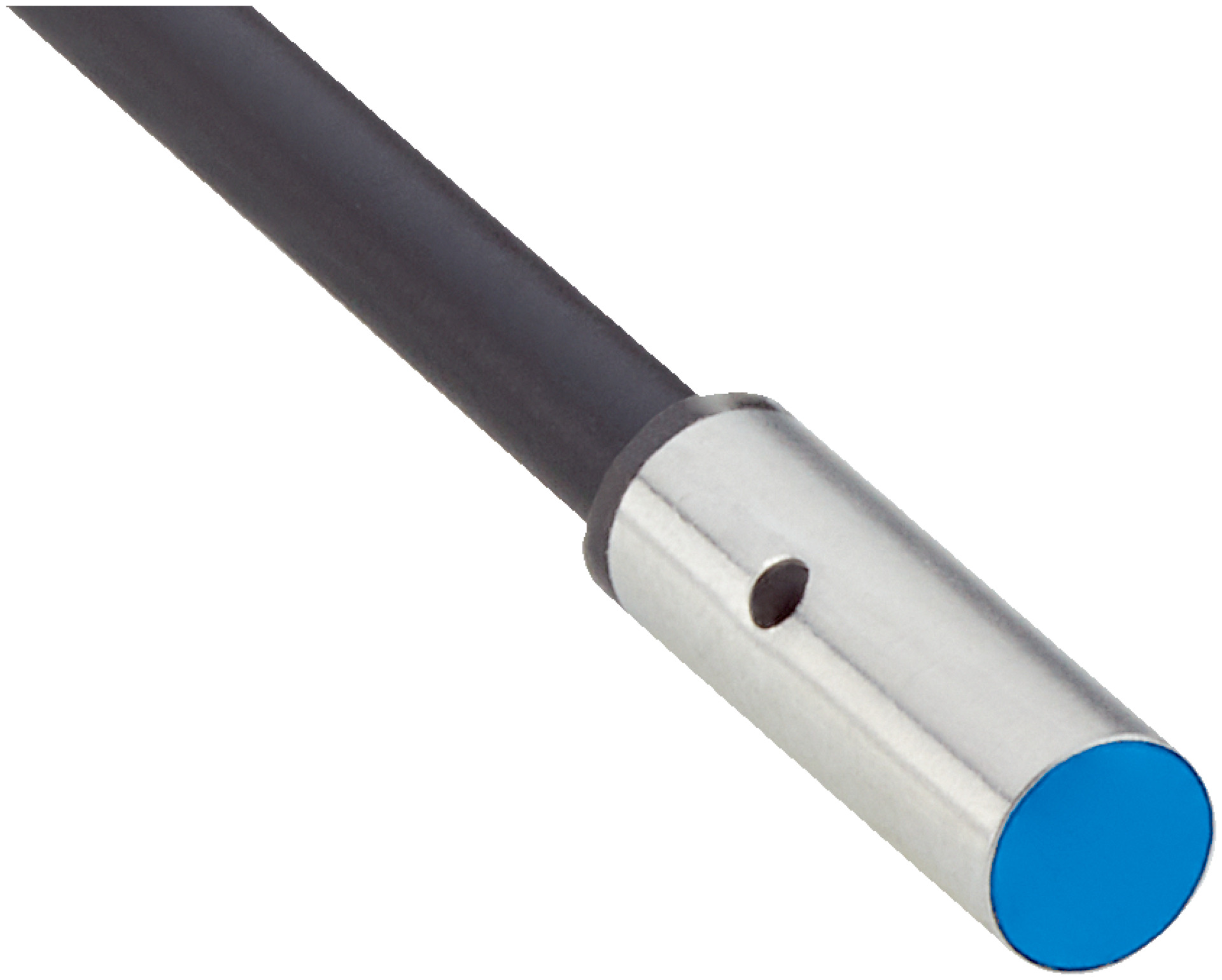

4mm Inductive Proximity Sensor | Short-Body Design | IP67 Rated | High Switching Frequency | by SICK
The 4mm Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a short-body design and an IP67 rated enclosure for dust and water protection. With a high switching frequency of 4,000 Hz and PNP normally open output, it's perfect for applications requiring reliable position sensing and metal detection in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 4,000 Hz
- Switching output: PNP, normally open
- Connection type: 3-wire cable, 2 m length
- Enclosure rating: IP67
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Cable diameter: 2.9 mm, PUR material
- Short-circuit and power-up pulse protection included
- Operating temperature range: -10 °C to +60 °C
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Dimensions (H x L x W): 12mm x 12mm x 4mm
- Weight: 0.1 kg
Key Features
- Short-body housing with 4 mm diameter
- Sensing range of 2.5 mm with safe sensing range of 2.025 mm
- Quasi-flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication
- Triple sensing range capability
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring precise sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

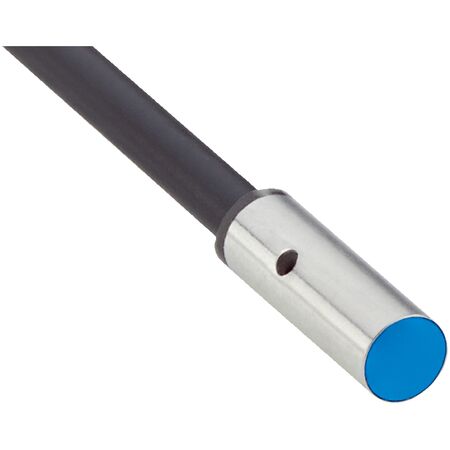

The SICK IHM04-2B5PSVU2K inductive sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
