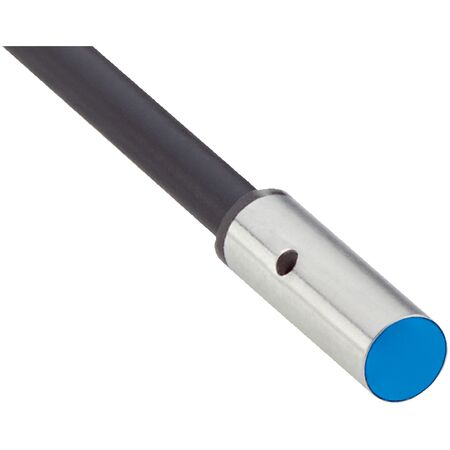

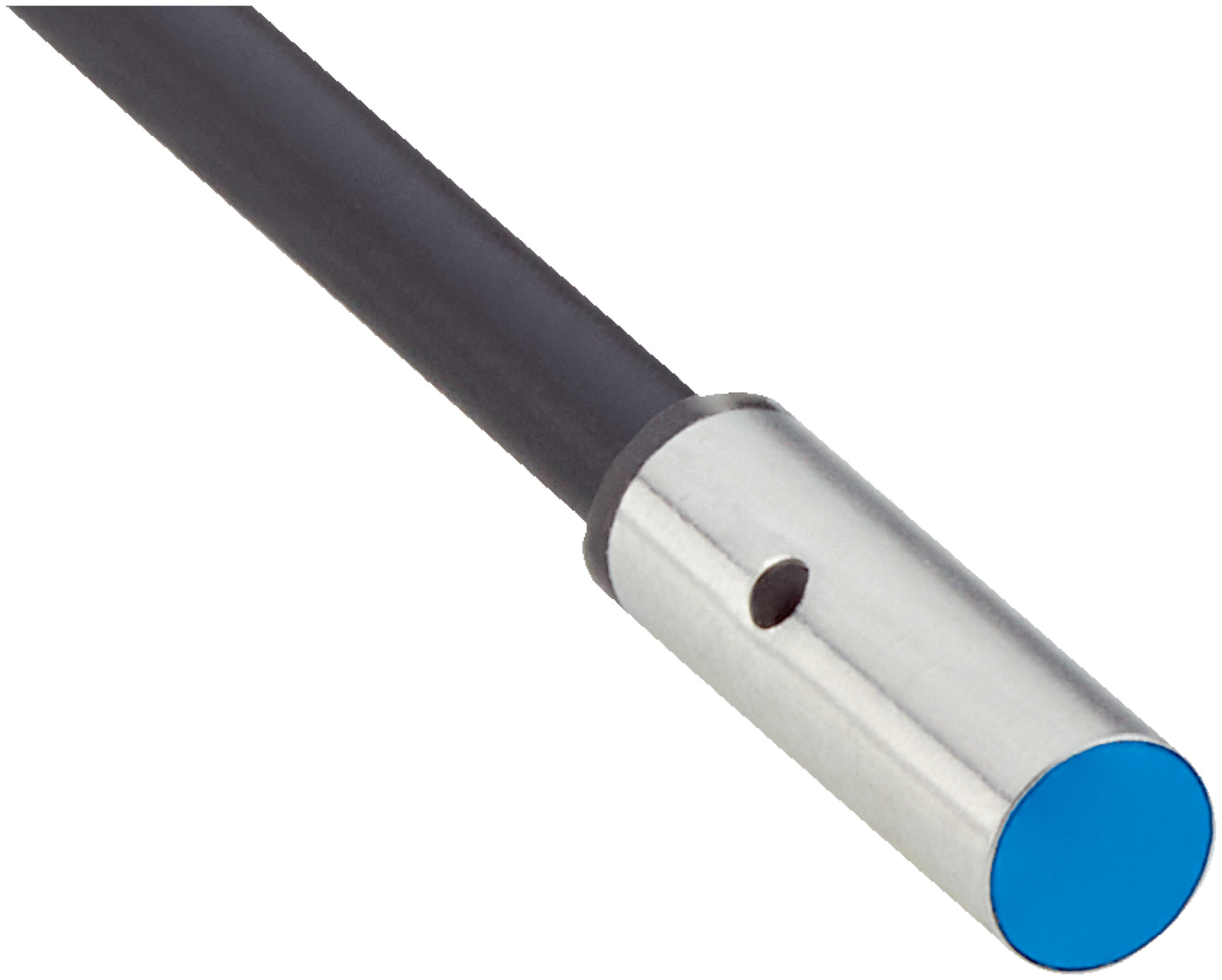

Inductive Proximity Sensor IHM04-2B5NSVU2K | Short-Body Design | IP67 Rated | High Switching Frequency | by SICK
The Inductive Proximity Sensor IHM04-2B5NSVU2K features a short-body design with a sensing range of 2.5 mm and a high switching frequency of 4,000 Hz, making it ideal for industrial automation and metal detection applications. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, while its stainless steel housing provides durability and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range Sn: 2.5 mm
- Safe sensing range Sa: 2.025 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 30 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR, diameter Ø 2.9 mm
- Conductor size: 0.14 mm²
- Short-circuit and power-up pulse protection included
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- EMC compliant with EN 60947-5-2
- Operating temperature range: -10 °C to +60 °C
- Switching output: NPN, normally open (NO)
- Switching frequency: 4,000 Hz
- Dimensions (H x L x W): 4mm x 12mm x 4mm
- Weight: 0.1 kg
Key Features
- Short-body housing with Ø 4 mm diameter
- Quasi-flush installation type
- High switching frequency of 4,000 Hz
- NPN normally open (NO) switching output
- Visual adjustment indicator with triple sensing range
- IP67 rated enclosure for dust and water protection
- Cable connection, 3-wire, 2 m length
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes environmental impact through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK IHM04-2B5NSVU2K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
