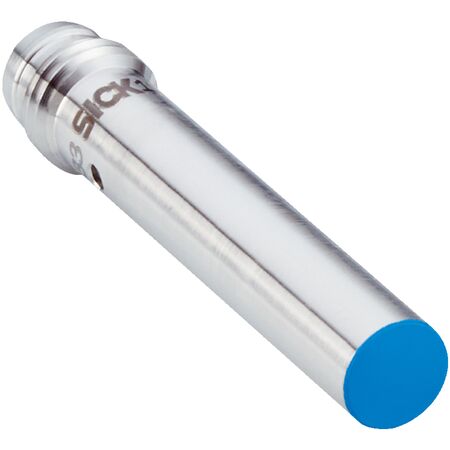

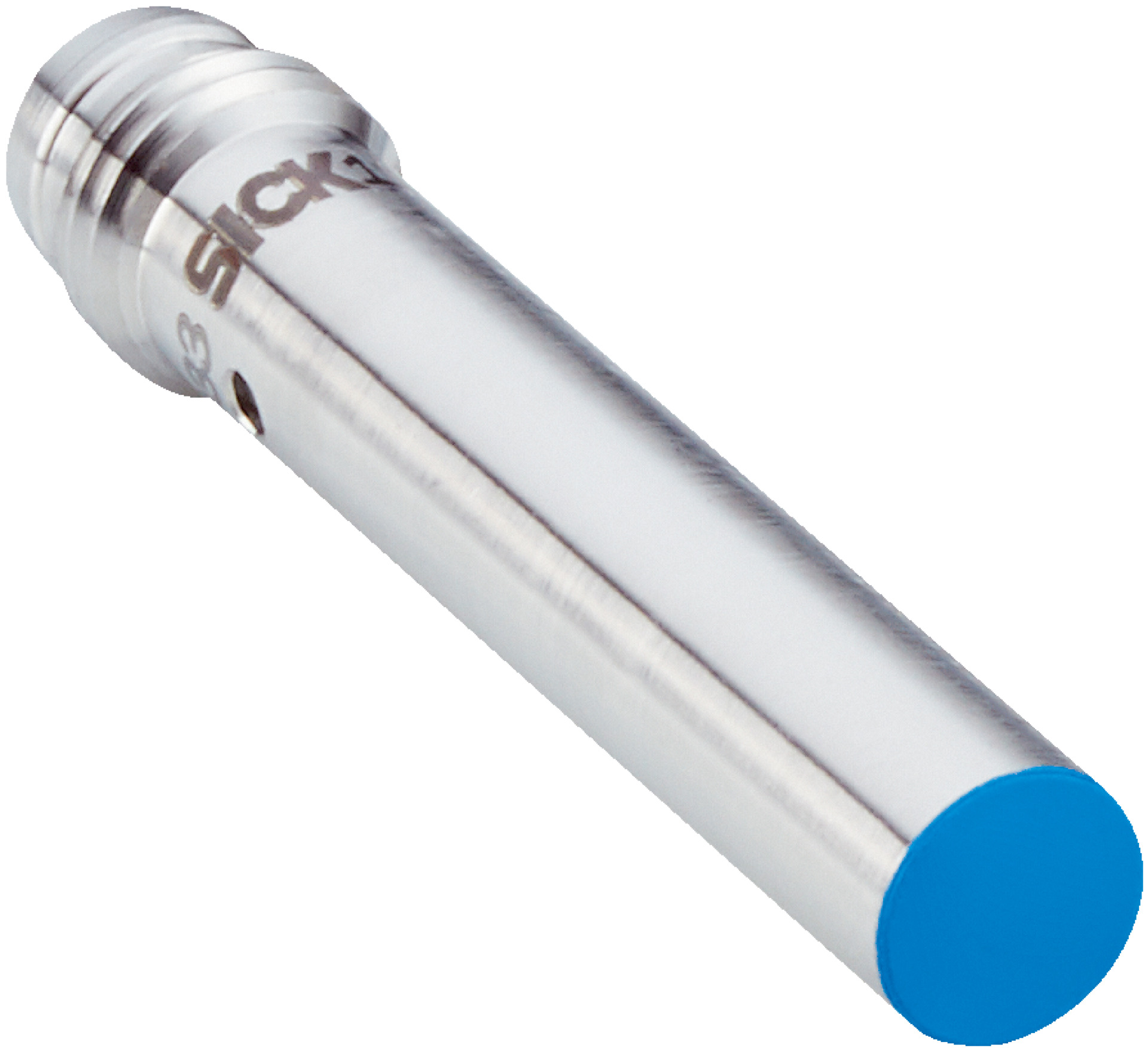

Inductive Proximity Sensor | Short-body Metal Design | IP67 Rated | High Switching Frequency | by SICK
The Inductive Proximity Sensor IHM06-1B5PSVT0K features a short-body metal design with a sensing range of 1.5 mm and a high switching frequency of 5,000 Hz. Ideal for industrial automation and metal detection, this sensor is built for flush installation and offers robust IP67 protection against dust and water, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Switching frequency: 5,000 Hz
- Communication interface: IO-Link V1.1 COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- EMC standard: EN 60947-5-2
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Dimensions (H x L x W): 6.5mm x 40mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing with Ø 6.5 mm diameter
- Flush installation type
- Sensing range Sn of 1.5 mm with safe sensing range Sa of 1.215 mm
- High switching frequency of 5,000 Hz
- PNP switching output with normally open (NO) function
- Connector M8, 3-pin connection type
- Visual adjustment indicator and IO-Link communication interface
- Enclosure rating IP67 for dust and water protection
- Robust stainless steel V2A housing and plastic sensing face
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +70 °C
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring flush installation sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-1B5PSVT0K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
