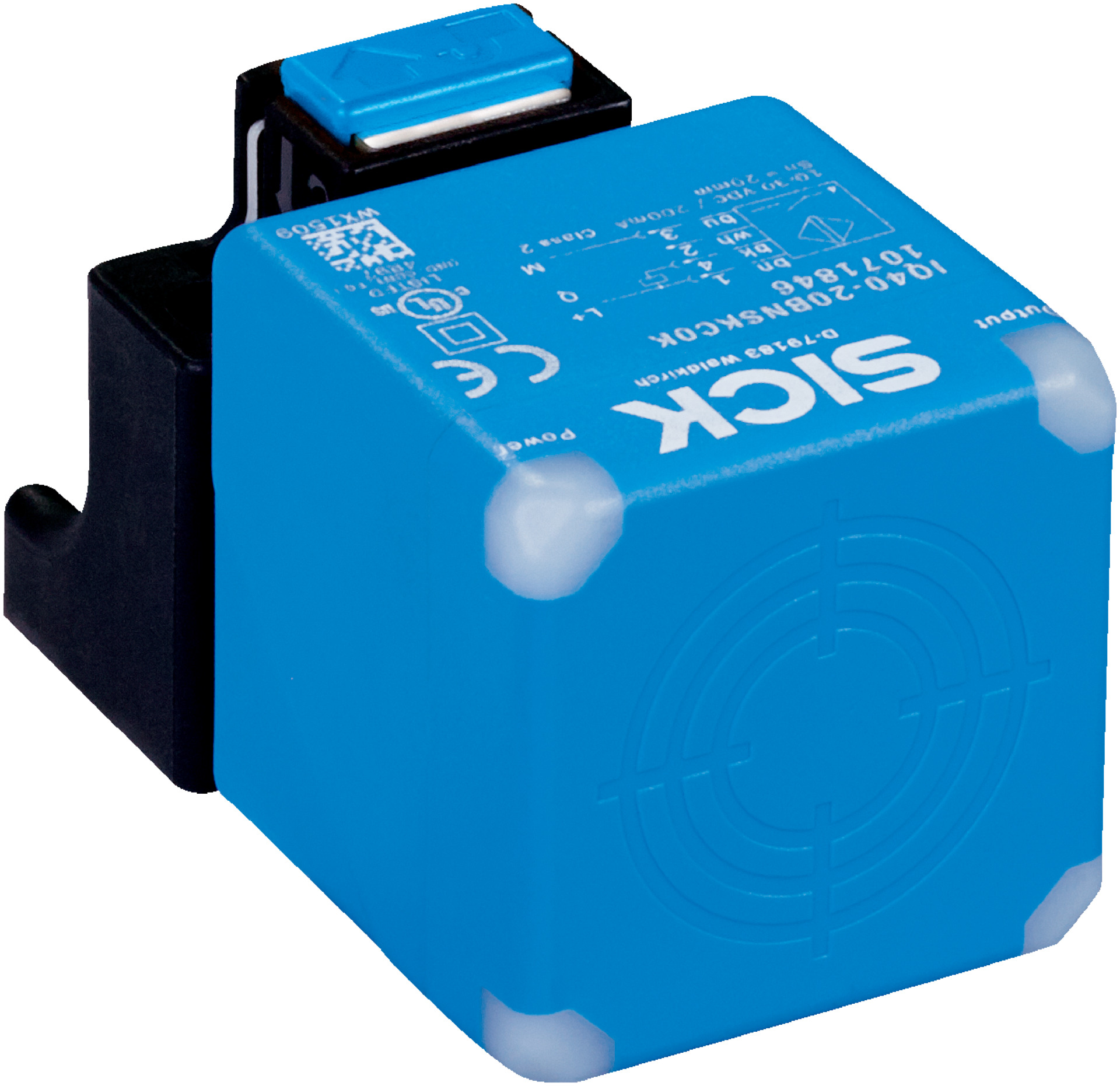

Inductive Proximity Sensor | Short-body Design | IP67, IP68, IP69K Rated | 20mm Sensing Range | by SICK
The Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body housing and a sensing range of 20 mm. With a robust IP67, IP68, and IP69K protection rating, it excels in harsh environments, ensuring durability and high performance. Ideal for applications requiring dependable sensing under challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10 V pp
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: 12.5 mA
- Switching frequency: 150 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, normally open
- Enclosure rating: IP67, IP68, IP69K
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +85 °C
- Housing material: Plastic, PA 66
- Protection class: II
- MTTFD: 1,125 years
- Mission time: 20 years
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- High switching frequency of 150 Hz
- PNP switching output with normally open function
- Male connector M12, 4-pin connection
- Robust plastic PA 66 housing and sensing face
- High protection rating IP67, IP68, IP69K
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +85 °C
- Short-circuit and power-up pulse protection included
- Push-lock mounting system supplied
Professional Installation Requirements
- Installation should be performed by qualified personnel following the push-lock mounting system instructions and ensuring proper electrical connections with M12 connector.
Applications
- Industrial automation for object detection
- Harsh environment sensing with IP67, IP68, IP69K protection
- Difficult application conditions requiring reliable sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IQ40-20BPSKC0K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
