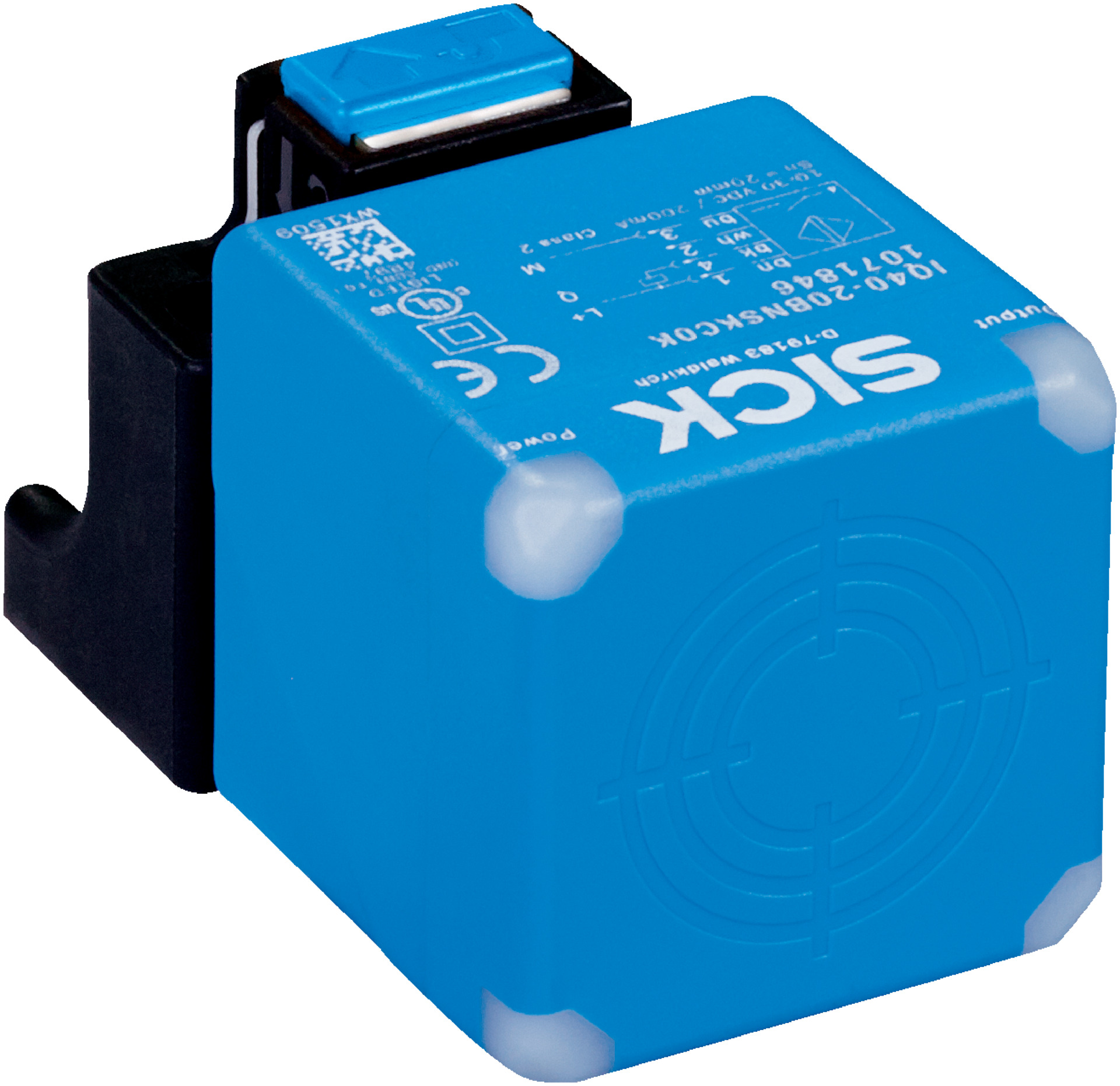

Inductive Proximity Sensor | Short-Body Design | IP67, IP68, IP69K Rated | 20mm Sensing Range | by SICK
The Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body housing for flush installation and a sensing range of 20 mm. With an IP67, IP68, and IP69K rating, it excels in harsh environments, ensuring durability and high performance even under challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10 V pp
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: 12.5 mA
- Switching output: NPN complementary
- Switching frequency: 150 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: II
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Housing material: Plastic PA 66
- Sensing face material: Plastic PA 66
- Tightening torque max: 1.8 Nm
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- High switching frequency of 150 Hz
- NPN complementary switching output
- Male connector M12, 4-pin connection
- Electrical wiring: DC 4-wire
- Enclosure rating IP67, IP68, IP69K for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +85 °C
- Short-circuit and power-up pulse protection
- Housing and sensing face made of durable Plastic PA 66
Professional Installation Requirements
- Installation should be performed by qualified personnel following manufacturer guidelines to ensure proper flush mounting and electrical connections.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Harsh environment sensing with IP67, IP68, IP69K protection
- Difficult application conditions requiring robust sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQ40-20BNPKC0K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
