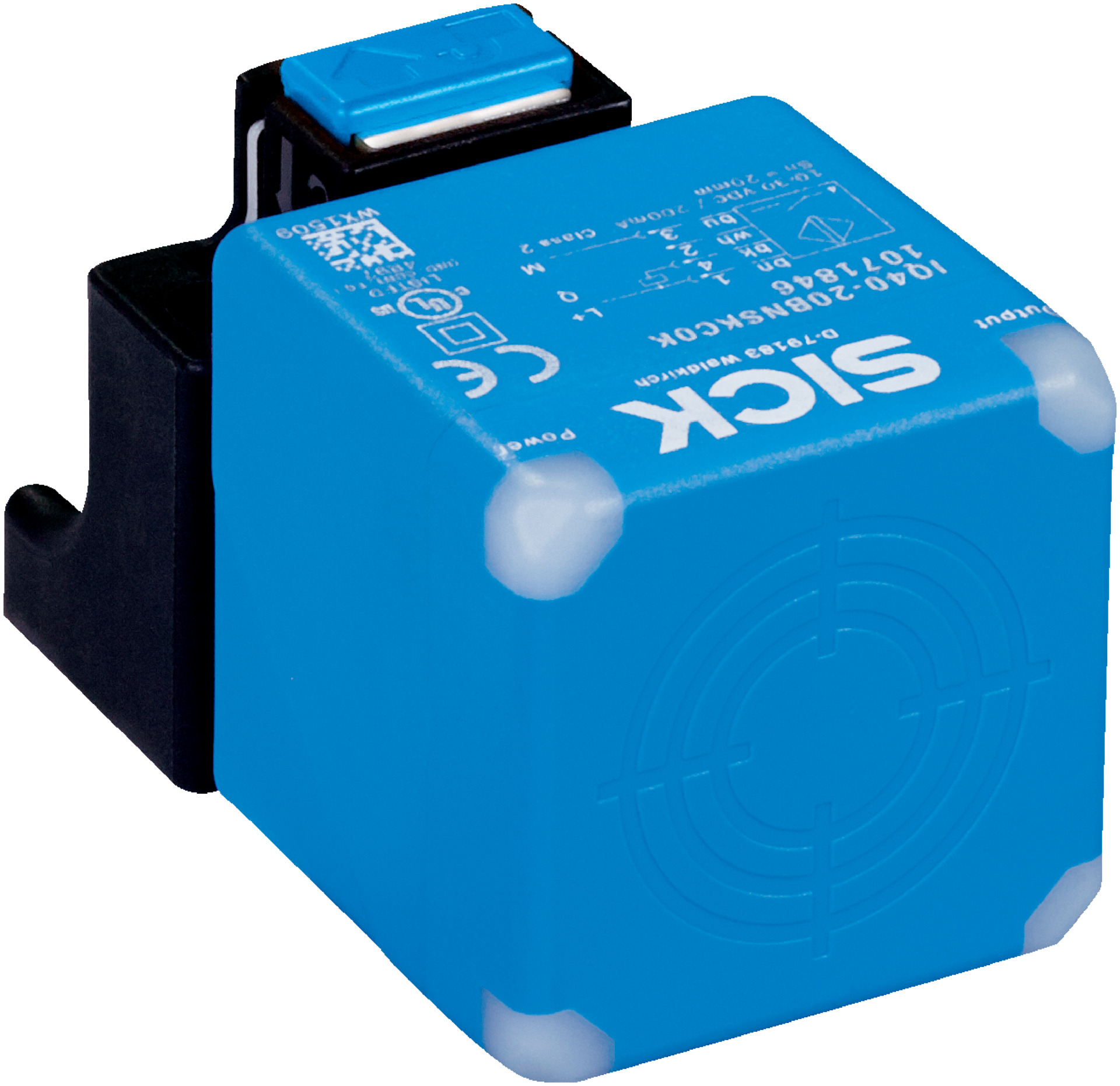

Inductive Proximity Sensor | Short Body Design | IP67, IP68, IP69K Rated | 20mm Sensing Range | by SICK
The Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short body design and a sensing range of 20 mm. With an IP67, IP68, and IP69K rating, it excels in harsh environments, ensuring durability and performance. Ideal for manufacturing lines and applications requiring robust sensors, this sensor also includes short-circuit and power-up pulse protection for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10 V pp
- Voltage drop: ≤ 4 V to 4.5 V
- Time delay before availability: < 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 100 mA
- Off-state current: ≤ 0.8 mA
- Minimum load current: ≥ 3 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +85 °C
- Ambient storage temperature: -40 °C to +85 °C
- Housing material: Plastic PA 66
- Sensing face material: Plastic PA 66
- Tightening torque max: 1.8 Nm
- Protection class: II
- Switching frequency: 150 Hz
- Connection type: Male connector M12, 2-pin
- Output function: Normally Open (NO)
- Electrical wiring: DC 2-wire
- Enclosure rating: IP67, IP68, IP69K
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- High switching frequency of 150 Hz
- Male connector M12, 2-pin connection
- Output function: Normally Open (NO)
- DC 2-wire electrical wiring
- Enclosure rating IP67, IP68, IP69K for dust and water resistance
- Push-lock mounting system included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +85 °C
- Short-circuit and power-up pulse protection
- Housing and sensing face made of durable Plastic PA 66
Professional Installation Requirements
- Installation should be performed by qualified personnel following the push-lock mounting system instructions and ensuring proper electrical connections to maintain IP ratings and sensor performance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Harsh environment sensing with IP67, IP68, IP69K protection
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQ40-20BDSKC0K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
