Inductive Proximity Sensor | Short-body Design | IP67/IP68/IP69K Rated | 20mm Sensing Range | by SICK
The Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body housing and a sensing range of 20 mm. With a high switching frequency of 150 Hz and robust IP67/IP68/IP69K ratings, it excels in harsh environments, ensuring safety and efficiency in machine control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10 V pp
- Voltage drop: ≤ 4 V to 4.5 V
- Time delay before availability: < 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 100 mA
- Off-state current: ≤ 0.8 mA
- Minimum load current: ≥ 3 mA
- Short-circuit protection and power-up pulse protection included
- Housing and sensing face material: Plastic, PA 66
- Protection class: II
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Operating temperature: -25 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- High switching frequency of 150 Hz
- Male connector M12, 2-pin connection
- Output function: Normally Closed (NC)
- DC 2-wire electrical wiring
- High enclosure rating: IP67, IP68, IP69K for harsh environments
- Push-lock mounting system included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +85 °C
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with flush mount inductive sensors and electrical safety standards.
Applications
- Industrial automation for object detection
- Harsh and difficult application conditions
- Machine safety and control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

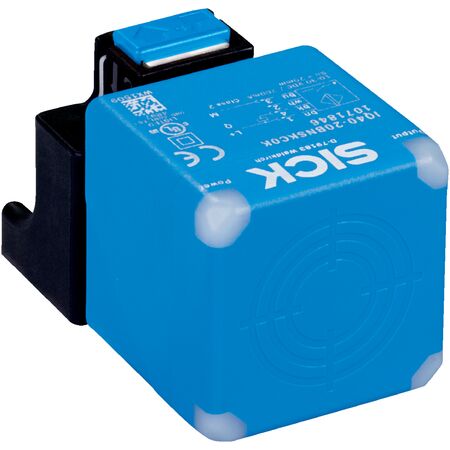

The SICK IQ40-20BDOKC0K inductive sensor is available for immediate purchase, ideal for industrial automation and safety applications in harsh environments.
