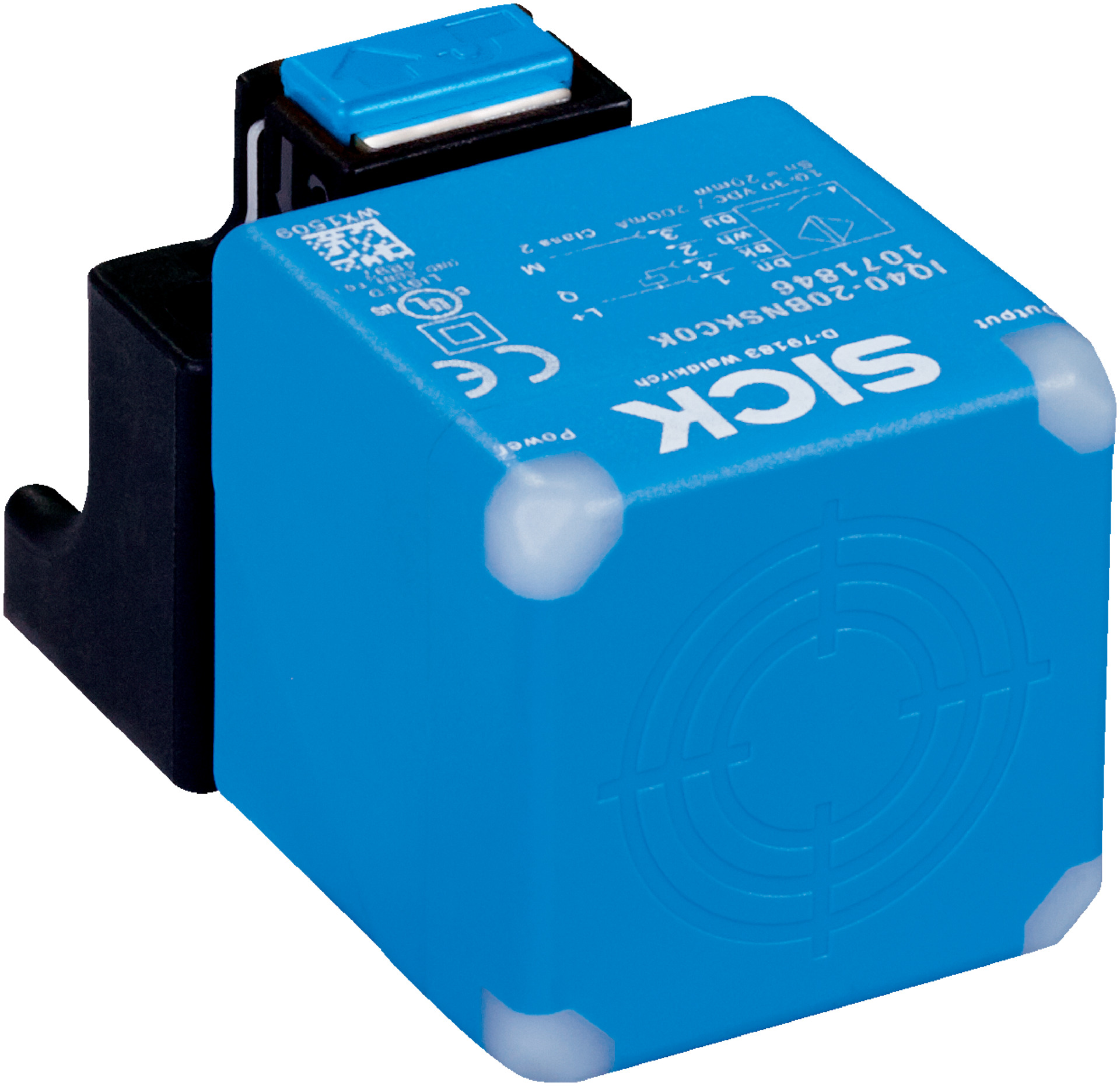

Inductive Proximity Sensor | Short-body Design | IP67, IP68, IP69K Rated | 40mm Sensing Range | by SICK
The Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body housing and a sensing range of 40 mm. With a robust IP67, IP68, and IP69K rating, it excels in harsh environments, ensuring dependable performance even under challenging conditions. Ideal for applications requiring high switching frequency and durability, this sensor is built to last.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10 V pp
- Voltage drop: ≤ 4 V to 4.5 V
- Time delay before availability: < 200 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 20%
- Continuous current: ≤ 100 mA
- Off-state current: ≤ 0.8 mA
- Minimum load current: ≥ 3 mA
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Housing and sensing face material: Plastic, PA 66
- Protection class: II
- Switching frequency: 150 Hz
- Connection type: Male connector M12, 2-pin
- Output function: Normally Open (NO)
- Electrical wiring: DC 2-wire
- Enclosure rating: IP67, IP68, IP69K
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Non-flush installation type
- Sensing range of 40 mm with safe sensing range of 32.4 mm
- High switching frequency of 150 Hz
- Male connector M12, 2-pin connection
- Output function: Normally Open (NO)
- DC 2-wire electrical wiring
- Robust enclosure rating: IP67, IP68, IP69K
- Push-lock mounting system included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +85 °C
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Harsh environment sensing with IP67, IP68, IP69K protection
- Difficult application conditions requiring reliable sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IQ40-40NDSKC0K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
