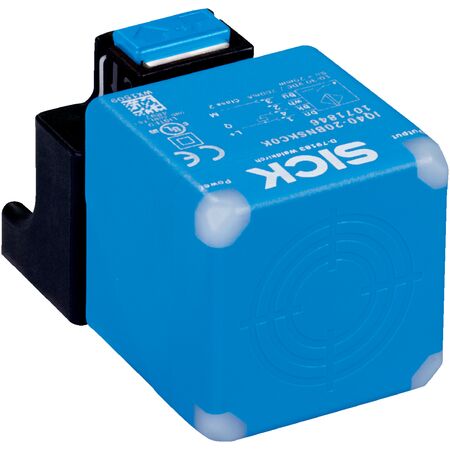

Inductive Proximity Sensor | Short-body Design | IP67, IP68, IP69K Rated | 40mm Sensing Range | by SICK
The Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body housing and a sensing range of 40 mm. With high protection ratings of IP67, IP68, and IP69K, it excels in harsh environments, ensuring durability and performance. Ideal for applications requiring dependable sensing under challenging conditions, this sensor is built to last with energy-efficient operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10 V pp
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 6%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: 12.5 mA
- Switching output: PNP, Normally Open (NO)
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67, IP68, IP69K
- Housing material: Plastic, PA 66
- Sensing face material: Plastic, PA 66
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +85 °C
- Protection class: II
- MTTFD: 1,125 years
- Mission time: 20 years
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Non-flush installation type
- Sensing range of 40 mm with safe sensing range of 32.4 mm
- Switching frequency of 7.5 Hz
- PNP switching output with NO function
- Male connector M12, 4-pin connection
- High protection rating: IP67, IP68, IP69K
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature from –25 °C to +85 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Harsh environment sensing with IP67, IP68, IP69K protection
- Difficult application conditions requiring reliable sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IQ40-40NPSKC0KS02 proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
