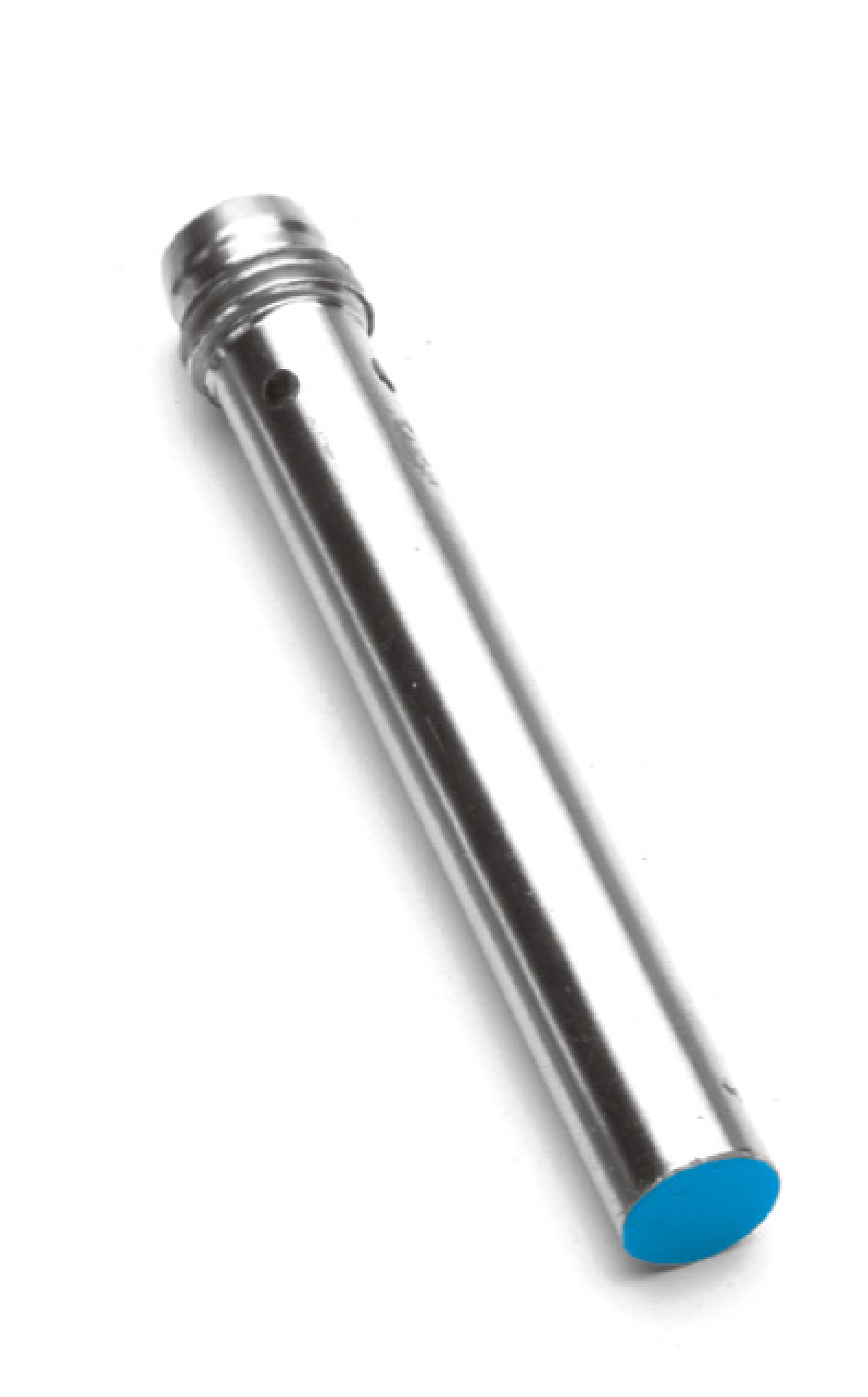

Inductive Proximity Sensor | Short-Body Design | IP67 Rated | PNP Output | by SICK
The Inductive Proximity Sensor is designed for precision in industrial automation, featuring a short-body housing and an IP67 rating for dust and water protection. With a sensing range of 2 mm and a high switching frequency of 3,000 Hz, it's perfect for applications like metal detection and position sensing in manufacturing lines. Built with durable stainless steel and a plastic sensing face, this sensor ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- EMC compliant with EN 60947-5-2 and IEC 61000-4-2/4-4
- Connection type: Connector M8, 3-pin
- Switching output: PNP, normally open (NO)
- Enclosure rating: IP67
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, POM
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Operating temperature: –25 °C to +70 °C
- Dimensions (H x L x W): 6.5mm x 40mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Quasi-flush installation type
- High switching frequency of 3,000 Hz
- PNP switching output with NO function
- Connector M8, 3-pin connection type
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +70 °C
- Stainless steel V2A housing and plastic POM sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor installation and wiring standards to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

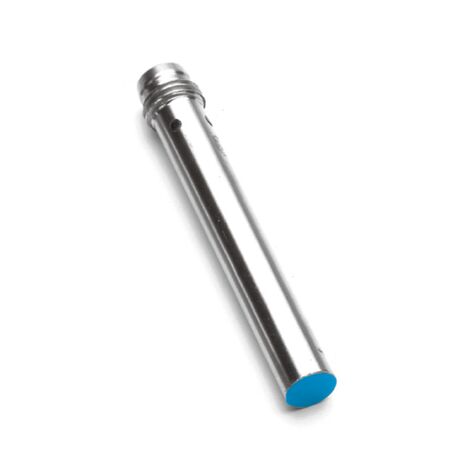

The SICK IH06-02BPS-VTK inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
