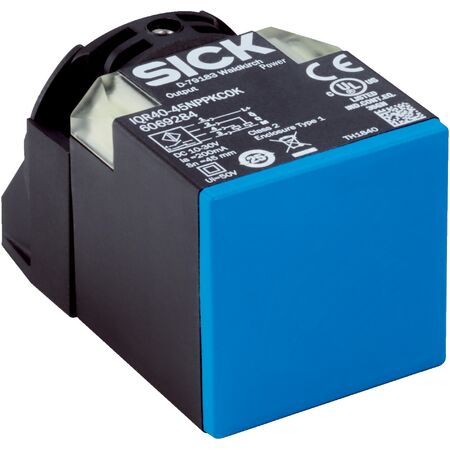

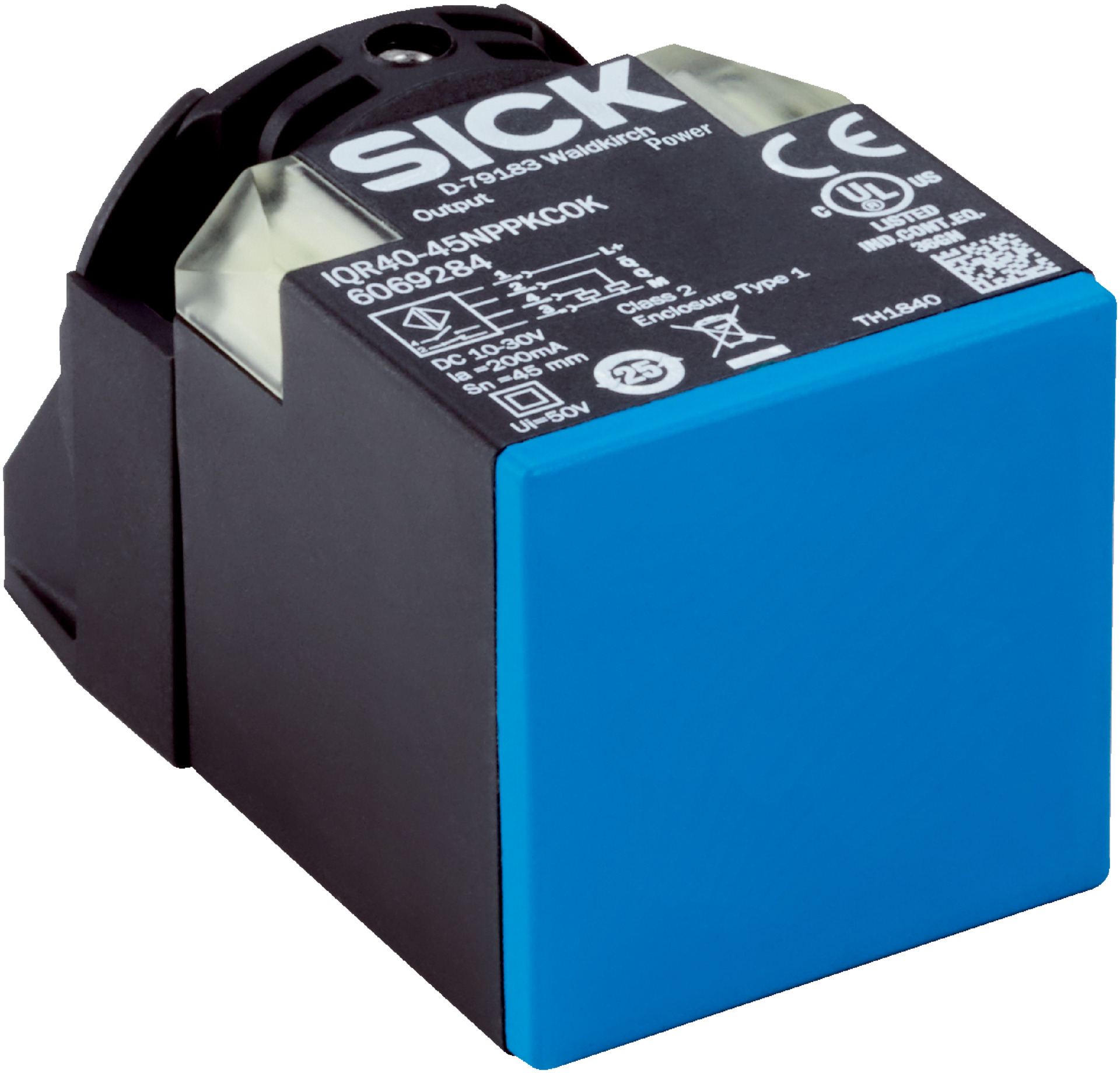

Inductive Proximity Sensor | Short-Body Design | IP68 Rated | 45mm Sensing Range | by SICK
The Inductive Proximity Sensor IQR40-45NPPKC0K features a short-body design and an impressive sensing range of 45 mm, making it ideal for industrial automation and object detection in challenging environments. With an IP68 rated enclosure, it offers superior dust and water protection, ensuring reliable performance even in harsh conditions. This sensor is perfect for non-flush mounting applications and is built to withstand shock and vibration, providing long-lasting durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 1.8 V
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ ±10% to ±15%
- Continuous current: ≤ 200 mA
- No load current: ≤ 15 mA
- Off-state current: ≤ 0.1 mA
- Short-circuit protection included
- Magnetic field strength tolerance: ≤ 100 mT
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Housing and sensing face material: Plastic, PBT
- Protection class: II
- Connection type: Male connector M12, 4-pin
- Switching output: PNP complementary
- Switching frequency: 250 Hz
- Dimensions (H x L x W): 40mm x 65mm x 40mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Non-flush installation type
- Sensing range of 45 mm with safe sensing range of 36.4 mm
- High switching frequency of 250 Hz
- PNP complementary switching output
- IP68 rated enclosure for dust and water protection
- Magnetic-field-resistant with reduction factor 1
- Clamp-lock mounting system included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –30 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Welding range and difficult application conditions
- Non-flush mounting sensing applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP68 housing reduces need for frequent replacements
- Energy-efficient operation with low current consumption
- Magnetic-field resistance enhances reliability, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IQR40-45NPPKC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and sensing applications in harsh environments.
