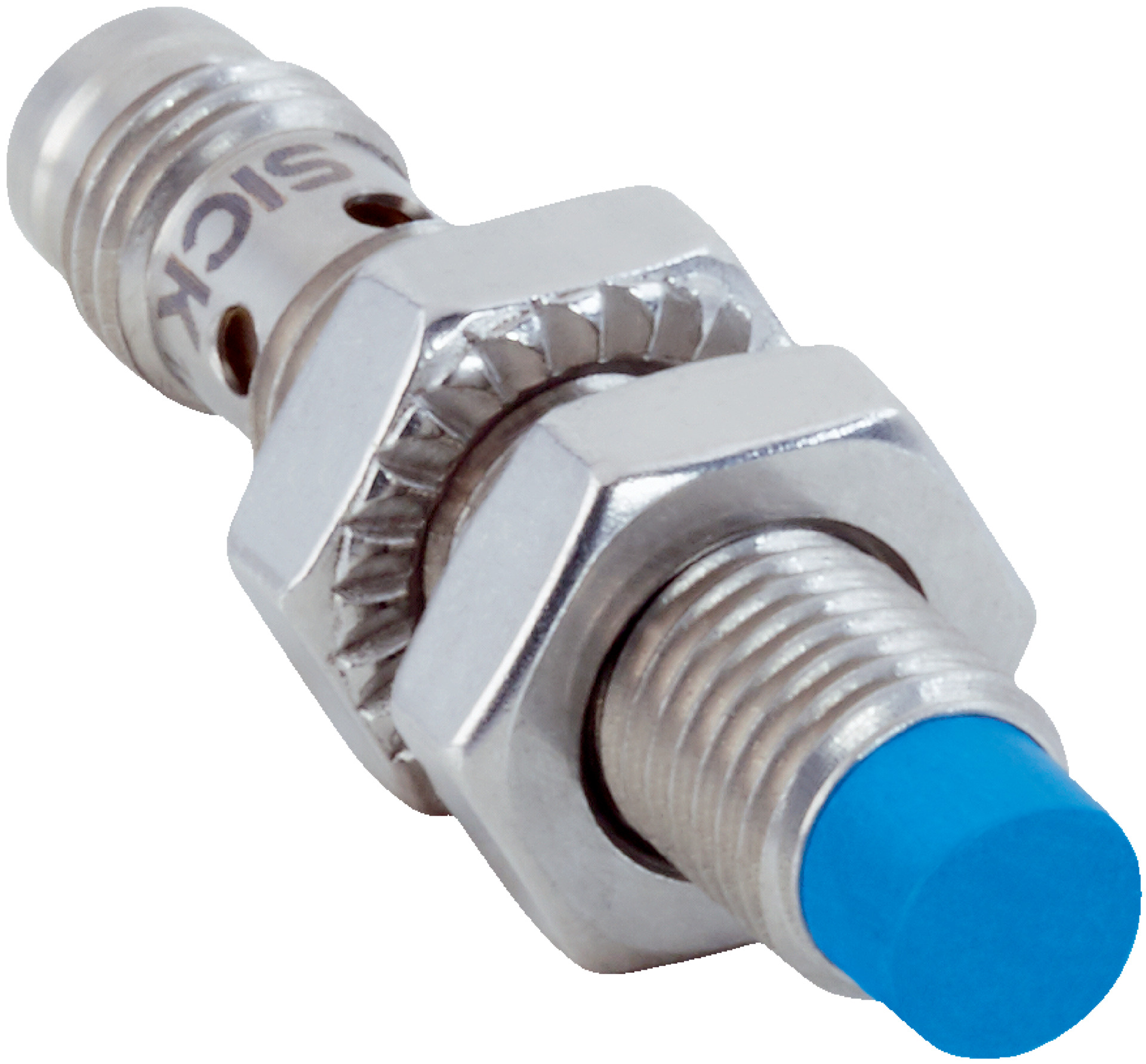

Inductive Proximity Sensor | Short-Body M8 | IP68 & IP69K Rated | 4mm Sensing Range | by SICK
Inductive proximity sensor designed for industrial automation, featuring a short-body M8 design with a sensing range of 4 mm and an IP68/IP69K enclosure rating. Ideal for harsh environments, this sensor is built for durability and reliability, ensuring optimal performance in applications involving coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor | Short-Body M8 | IP68 & IP69K Rated | 4mm Sensing Range | by SICK
Brand: SICK
SKU: 1072696
Alternatively Known As: M8 Inductive Proximity Sensor, Short Body Proximity Sensor, NPN Inductive Sensor, IP68 Proximity Sensor
Technical Specifications
- Housing: Short-body, M8 x 1 thread size, Ø 8 mm diameter
- Sensing range Sn: 4 mm, Safe sensing range Sa: 3.24 mm
- Installation type: Non-flush
- Switching frequency: 4000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: NPN, Normally Closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz / 15 g
- Ambient operating temperature: -40°C to +100°C
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Protection class: III
- Dimensions (H x L x W): 40mm x 40mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body M8 x 1 threaded housing
- Non-flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- High switching frequency of 4000 Hz
- NPN normally closed output with DC 3-wire electrical wiring
- Connector M8, 3-pin connection type
- Enclosure rating IP68 and IP69K for high protection
- Resistant against coolant lubricants and temperature resistant
- Visual adjustment indicator for easy setup
- Shock and vibration resistant with high durability
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of plastic LCP
- Wide ambient operating temperature range from -40°C to +100°C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to industrial safety standards.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments minimizes sensor failure and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMB08-04NNOVT0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
