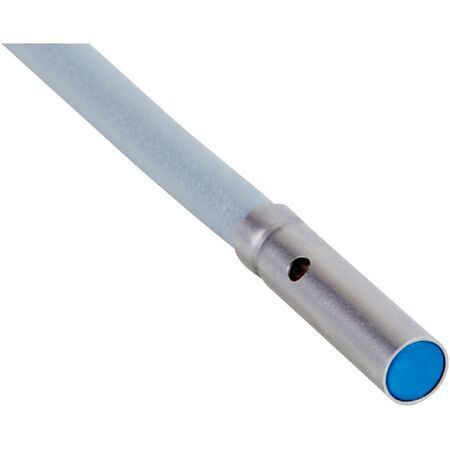

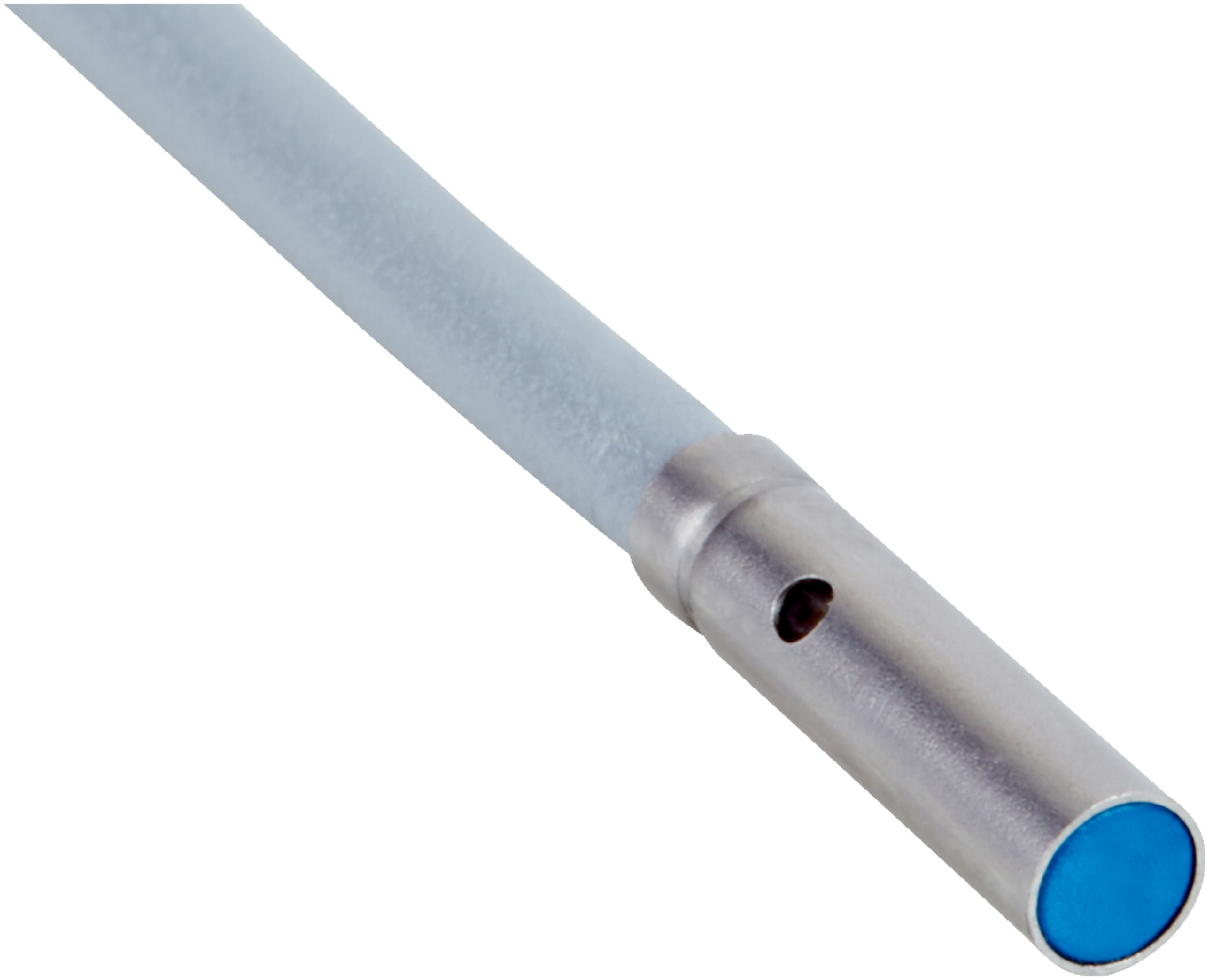

Inductive Proximity Sensor | Short-body NPN | 8,000 Hz Switching Frequency | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor is designed for industrial automation, featuring a short-body housing and NPN normally open output. With a high switching frequency of 8,000 Hz and robust IP68/IP69K ratings, it excels in harsh environments, making it ideal for machine safety and control systems. Built for reliability, this sensor ensures precise object detection in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: NPN, normally open (NO)
- Switching frequency: 8,000 Hz
- Sensing range (Sn): 0.8 mm
- Safe sensing range (Sa): 0.648 mm
- Pressure resistance: ≤ 150 bar
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 100 mA
- Cable: PUR, 3-wire, 2 m length, diameter Ø 2.6 mm
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Ceramics, ZrO2
- Short-circuit protection: Yes
- EMC compliance: EN 60947-5-2, IEC 61000-4-2 (Test level 2), IEC 61000-4-4 (Test level 2)
- Dimensions (H x L x W): 12mm x 12mm x 3mm
- Weight: 0.1 kg
Key Features
- Short-body housing with Ø 3 mm diameter
- Flush installation type
- High switching frequency of 8,000 Hz
- NPN normally open (NO) switching output
- Cable connection, 3-wire, 2 m length
- Pressure resistance up to 150 bar
- Enclosure rating IP68 and IP69K for harsh environments
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of ceramics (ZrO2)
- Short-circuit protection included
- Wide ambient operating temperature range from –25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel following the manufacturer’s guidelines to ensure proper flush mounting and electrical connections.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Robotics and manufacturing processes requiring precise sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments minimizes environmental impact from sensor failures
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IHP03-0B8NSVU2K inductive proximity sensor is available for immediate purchase. Ideal for industrial automation and machine safety applications.
