Inductive Proximity Sensor | Short-body Design | NPN Output | IP67/IP68/IP69K Rated | by SICK
The Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body housing and NPN normally closed output. With an impressive sensing range of 20 mm and robust IP67/IP68/IP69K protection, it's perfect for harsh environments and manufacturing lines, ensuring durability and efficiency in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10 V pp
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: 12.5 mA
- Switching output: NPN, normally closed
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67, IP68, IP69K
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +85 °C
- Housing material: Plastic PA 66
- Protection class: II
- MTTFD: 1,125 years
- Mission time: 20 years
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- High switching frequency of 150 Hz
- NPN normally closed switching output
- Male connector M12, 4-pin connection
- Enclosure rating IP67, IP68, IP69K for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +85 °C
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Harsh environment sensing with IP67, IP68, IP69K protection
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

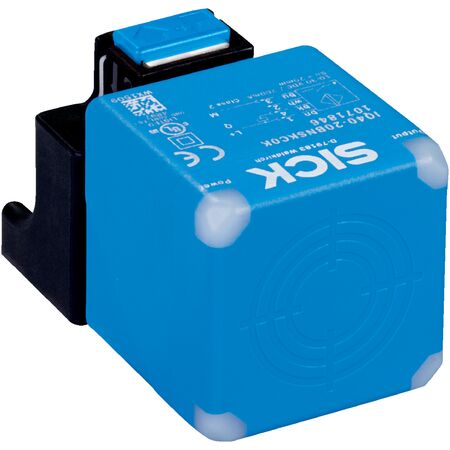

The SICK IQ40-20BNOKC0K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
