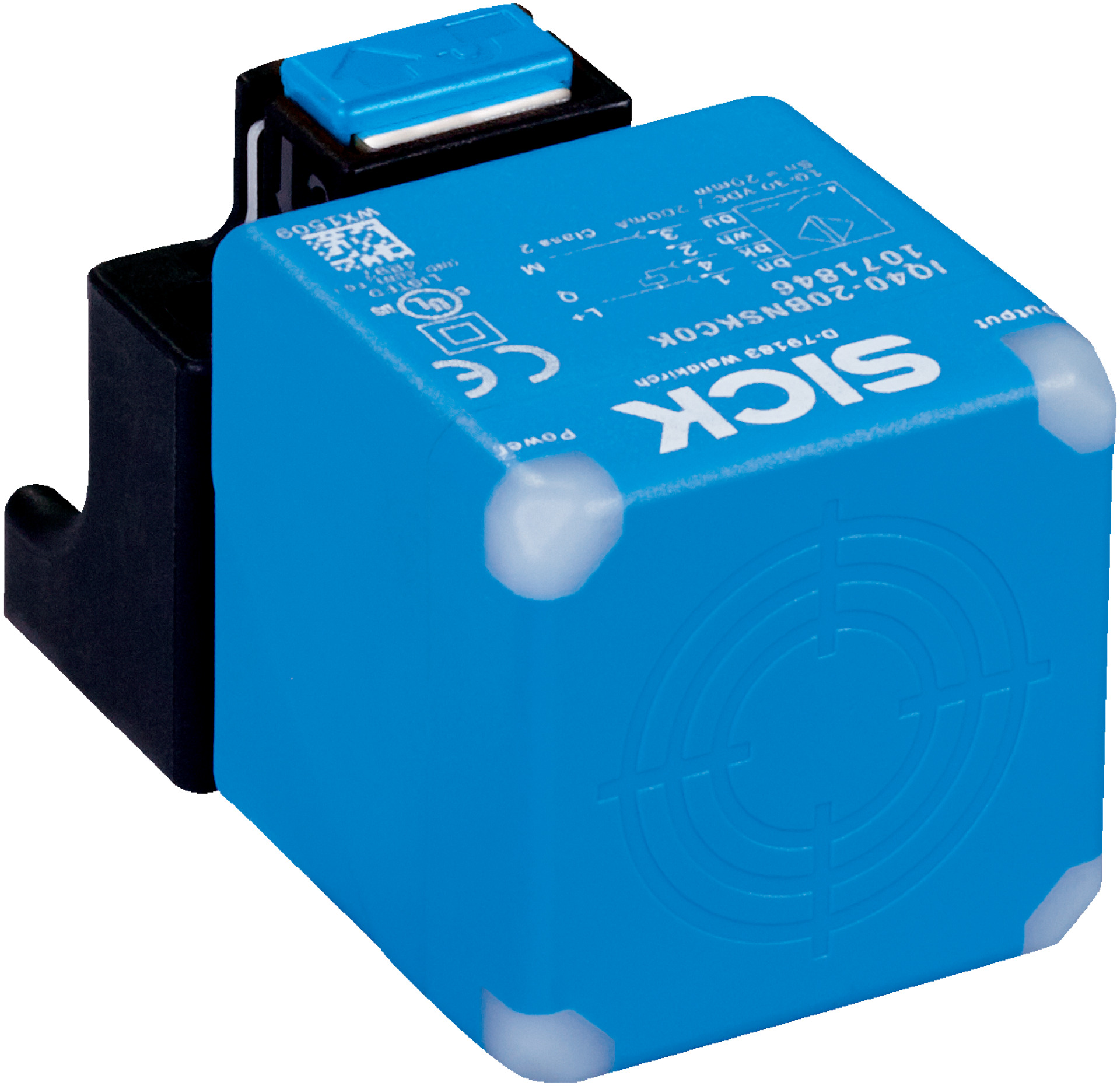

Inductive Proximity Sensor | Short-Body Design | NPN Output | IP67, IP68, IP69K Rated | by SICK
The Inductive Proximity Sensor IQ40-40NNSKC0K features a short-body design and NPN normally open output, making it ideal for industrial automation and object detection in harsh environments. With a sensing range of 40 mm and high protection ratings of IP67, IP68, and IP69K, this sensor is built to withstand challenging conditions while ensuring reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10 V pp
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 6%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: 12.5 mA
- Switching output: NPN, normally open
- Switching frequency: 100 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: II
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Housing material: Plastic PA 66
- Sensing face material: Plastic PA 66
- Tightening torque max: 1.8 Nm
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Non-flush installation type
- Sensing range of 40 mm with safe sensing range of 32.4 mm
- Switching frequency of 100 Hz
- NPN normally open switching output
- Male connector M12, 4-pin connection
- Electrical wiring: DC 3-wire
- High protection rating: IP67, IP68, IP69K
- Push-lock mounting system included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +85 °C
- Short-circuit and power-up pulse protection
- Housing and sensing face made of durable Plastic PA 66
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Harsh environment sensing with IP67, IP68, IP69K protection
- Difficult application conditions requiring robust sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IQ40-40NNSKC0K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
