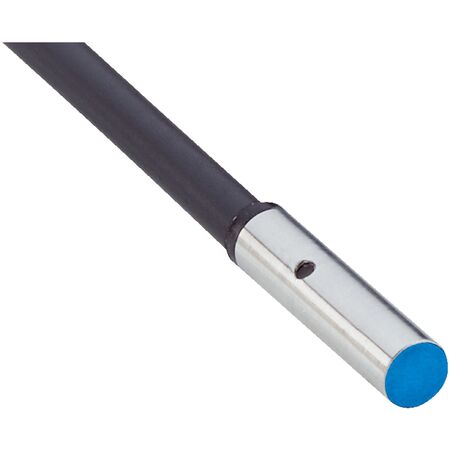

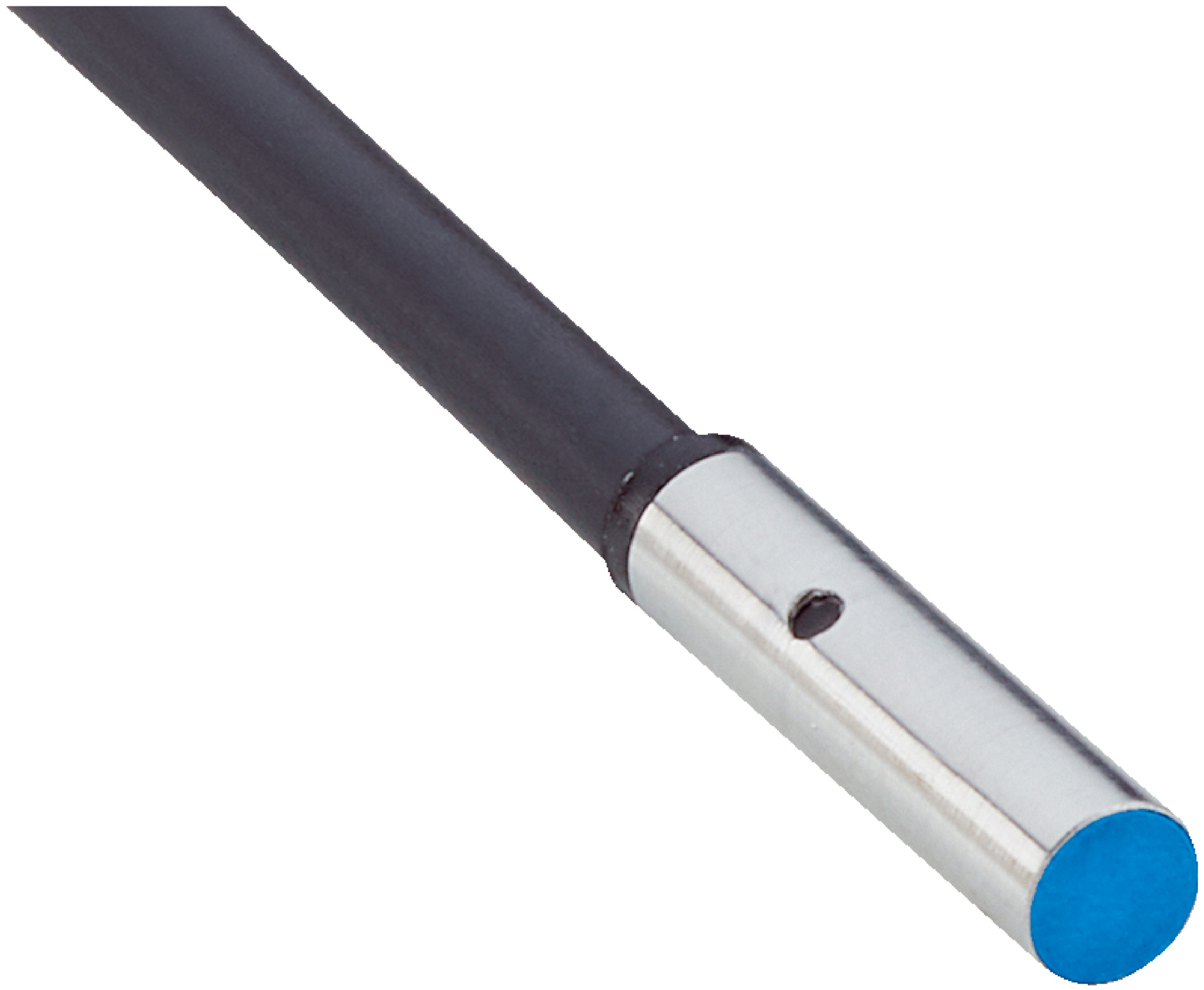

Inductive Proximity Sensor | Short-body Stainless Steel | 1mm Sensing Range | IP67 Rated | by SICK
Inductive Proximity Sensor designed for industrial automation, featuring a short-body stainless steel housing and a sensing range of 1 mm. With a high switching frequency of 4,200 Hz and an IP67 rating for dust and water protection, this sensor is perfect for precise object detection and position sensing in manufacturing lines. Built for reliability, it includes a visual adjustment indicator and IO-Link communication interface, making it ideal for automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 3 mm
- Sensing range Sn: 1 mm
- Safe sensing range Sa: 0.81 mm
- Installation type: Flush
- Switching frequency: 4,200 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Visual adjustment indicator included
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift (of Sr): ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR, diameter 2.5 mm
- Short-circuit and power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 12 mm
- Dimensions (H x L x W): 3mm x 12mm x 3mm
- Weight: 0.1 kg
Key Features
- Short-body housing with 3 mm diameter
- Flush installation type
- Sensing range of 1 mm with safe sensing range of 0.81 mm
- High switching frequency of 4,200 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Cable connection, 3-wire, 2 m length
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring precise sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IHM03-01BPSVU2K inductive sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
