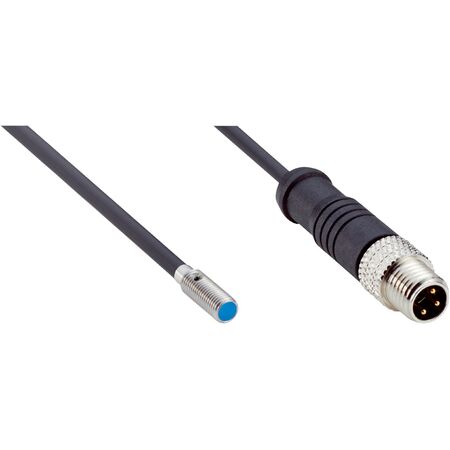

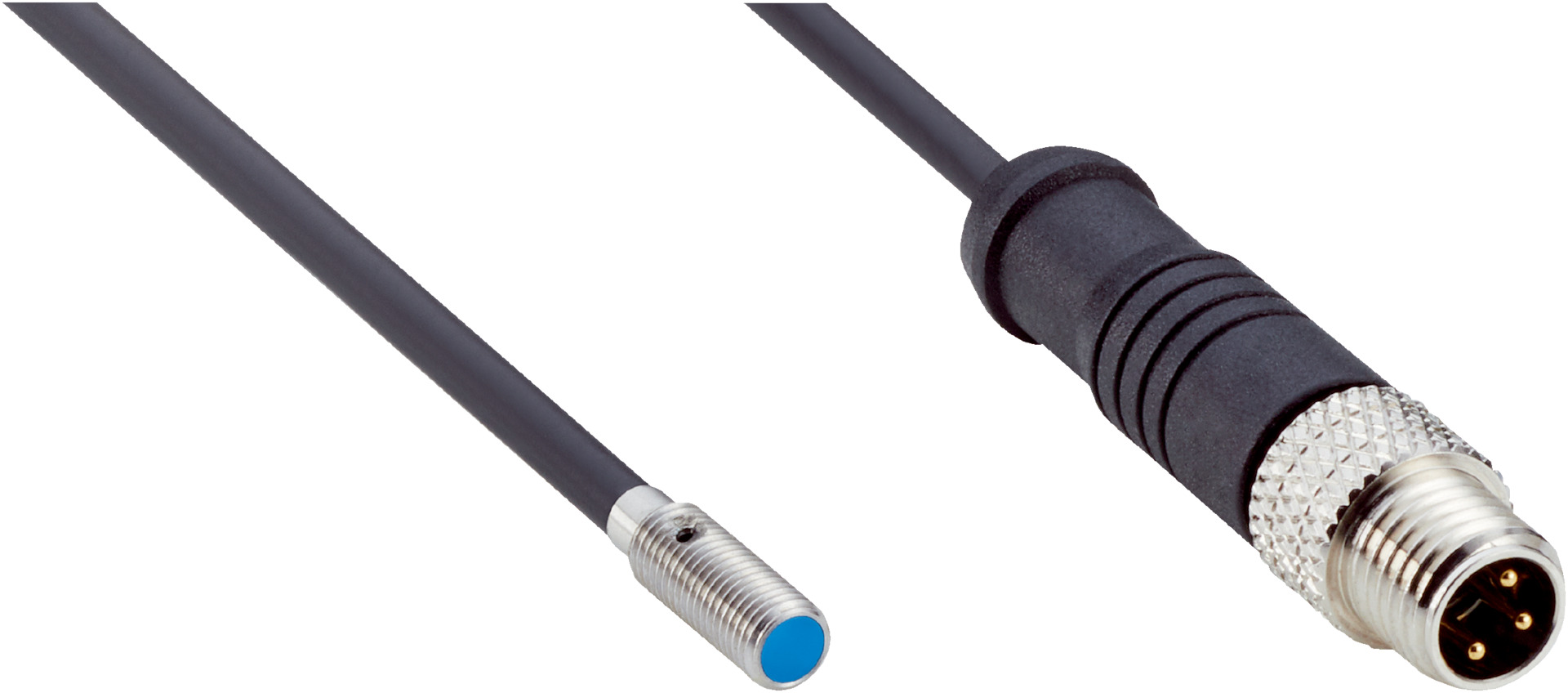

Inductive Proximity Sensor | Short-body Stainless Steel | 1mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a short-body stainless steel housing and a sensing range of 1 mm. With a high switching frequency of 4200 Hz and an IP67 rating for dust and water protection, this sensor is perfect for dynamic processes requiring reliable performance and flexible installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M4 x 0.5
- Diameter: 4 mm
- Sensing range Sn: 1 mm
- Safe sensing range Sa: 0.81 mm
- Installation type: Flush
- Switching frequency: 4200 Hz
- Connection type: Cable with M8 3-pin connector, 0.2 m PUR cable
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Visual adjustment indicator included
- IO-Link V1.1 communication interface, COM2 (38.4 kBaud)
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift: ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Ambient operating temperature: -25°C to +70°C
- Housing length: 12 mm
- Thread length: 10 mm
- Tightening torque max: ≤ 0.8 Nm
- Dimensions (H x L x W): 12mm x 12mm x 4mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M4 x 0.5 thread size
- Sensing range of 1 mm with safe sensing range of 0.81 mm
- High switching frequency of 4200 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication
- Highly flexible PUR cable with M8 3-pin connector
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Stainless steel V2A housing and plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Use in dynamic processes requiring flexible cabling
- Flush installation in machinery and equipment
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
- Long service life reduces environmental impact of manufacturing and disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMM04-01BPSVR8KS05 inductive sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
