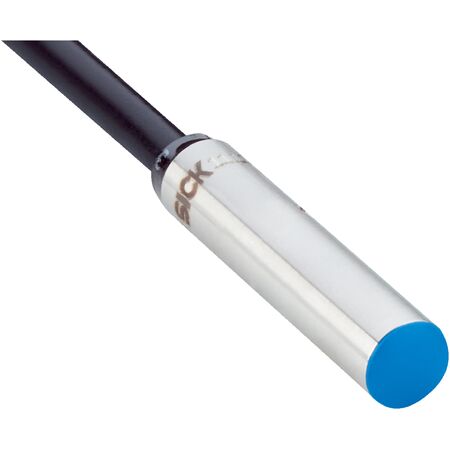

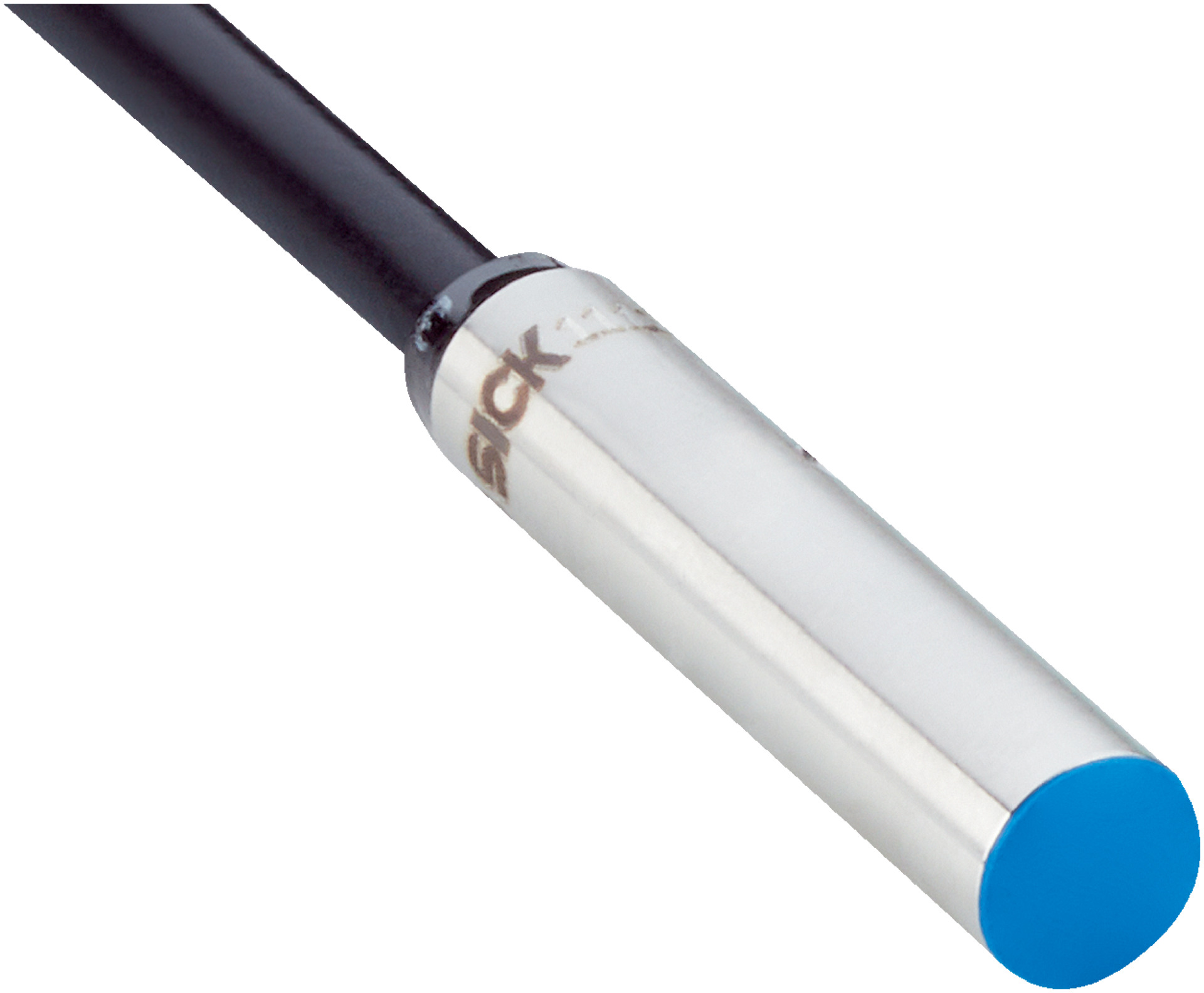

Inductive Proximity Sensor | Short-body Stainless Steel | 2mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor IHM06-02BPSVW2K features a short-body design made from durable stainless steel, offering a sensing range of 2 mm and a safe sensing range of 1.62 mm. With a high switching frequency of 5,000 Hz and an IP67 rated enclosure, this sensor is perfect for industrial automation, machine safety, and metal detection applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: Ø 6.5 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable material: PVC
- Conductor size: 0.25 mm²
- Cable diameter: Ø 3.7 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 6.5mm x 31.3mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing with stainless steel V2A material
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- High switching frequency of 5,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable connection type, 3-wire, 2 m length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with flush mounting inductive sensors and electrical wiring standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Metal detection in manufacturing processes
- Flush installation in confined spaces
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-02BPSVW2K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
