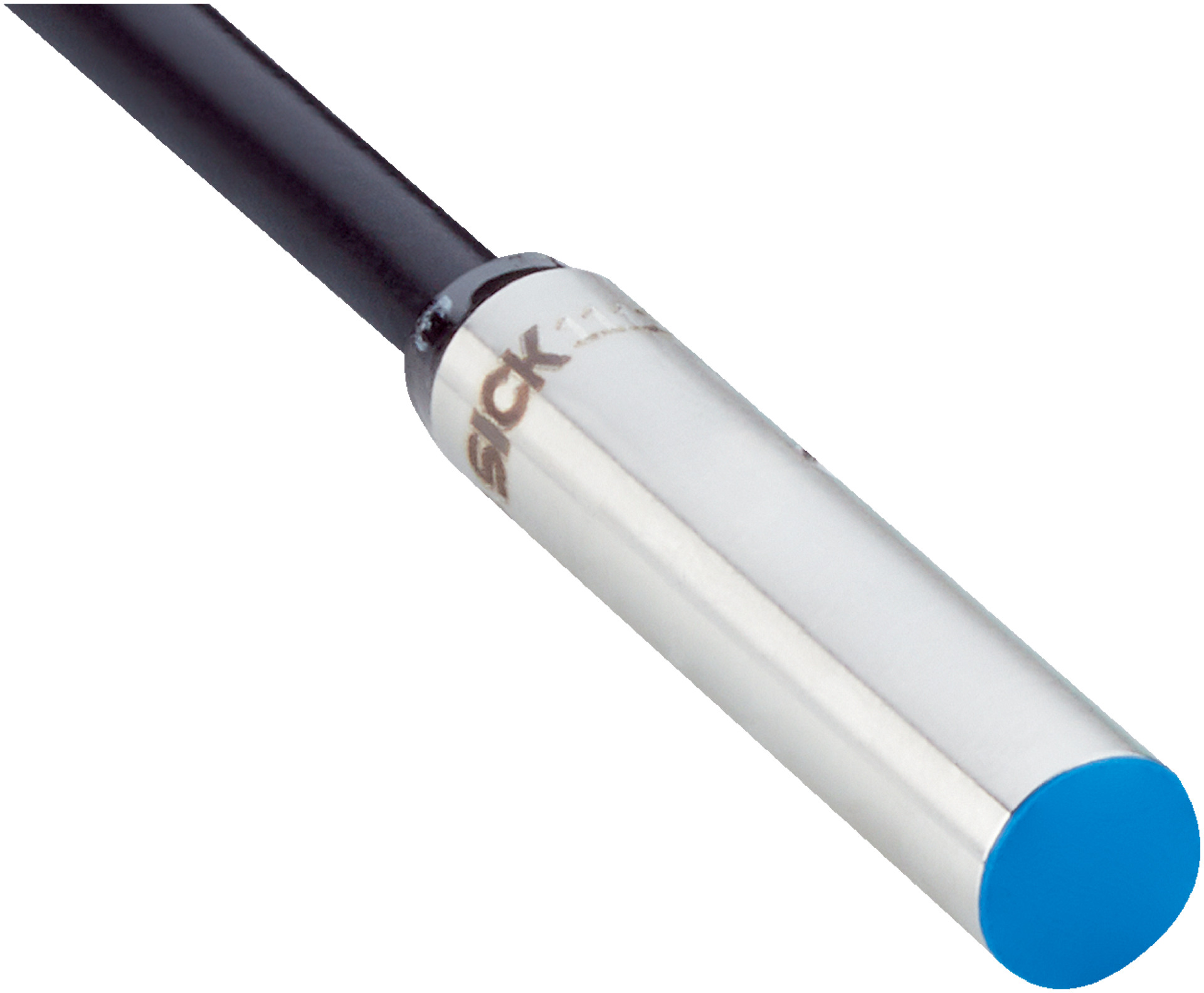

Inductive Proximity Sensor | Short-body Stainless Steel | 2mm Sensing Range | IP67 Rated | by SICK
Inductive Proximity Sensor designed for industrial automation, featuring a short-body stainless steel housing and a sensing range of 2 mm. With a high switching frequency of 5,000 Hz and an IP67 rating for dust and water protection, this sensor is perfect for machine safety and control systems, ensuring reliable object detection in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: Ø 6.5 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: NPN, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift (of Sr): ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable material: PVC
- Conductor size: 0.25 mm²
- Cable diameter: Ø 3.7 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 31.3 mm
- Dimensions (H x L x W): 6.5mm x 31.3mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing with stainless steel V2A material
- Flush installation type with Ø 6.5 mm diameter
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- High switching frequency of 5,000 Hz
- NPN normally open switching output
- Cable connection type, 3-wire, 2 m length
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +70 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Metal detection in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation with low voltage DC supply
- Robust design minimizes replacement frequency and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

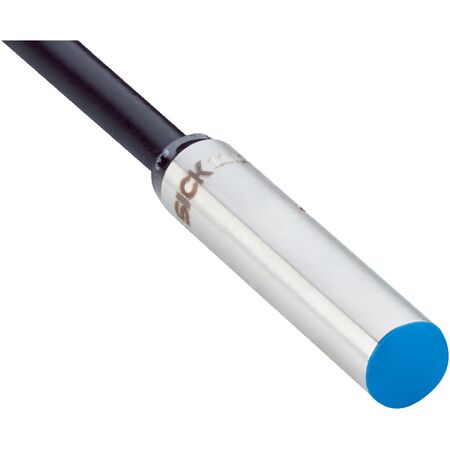

The SICK IHM06-02BNSVW2K inductive sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
