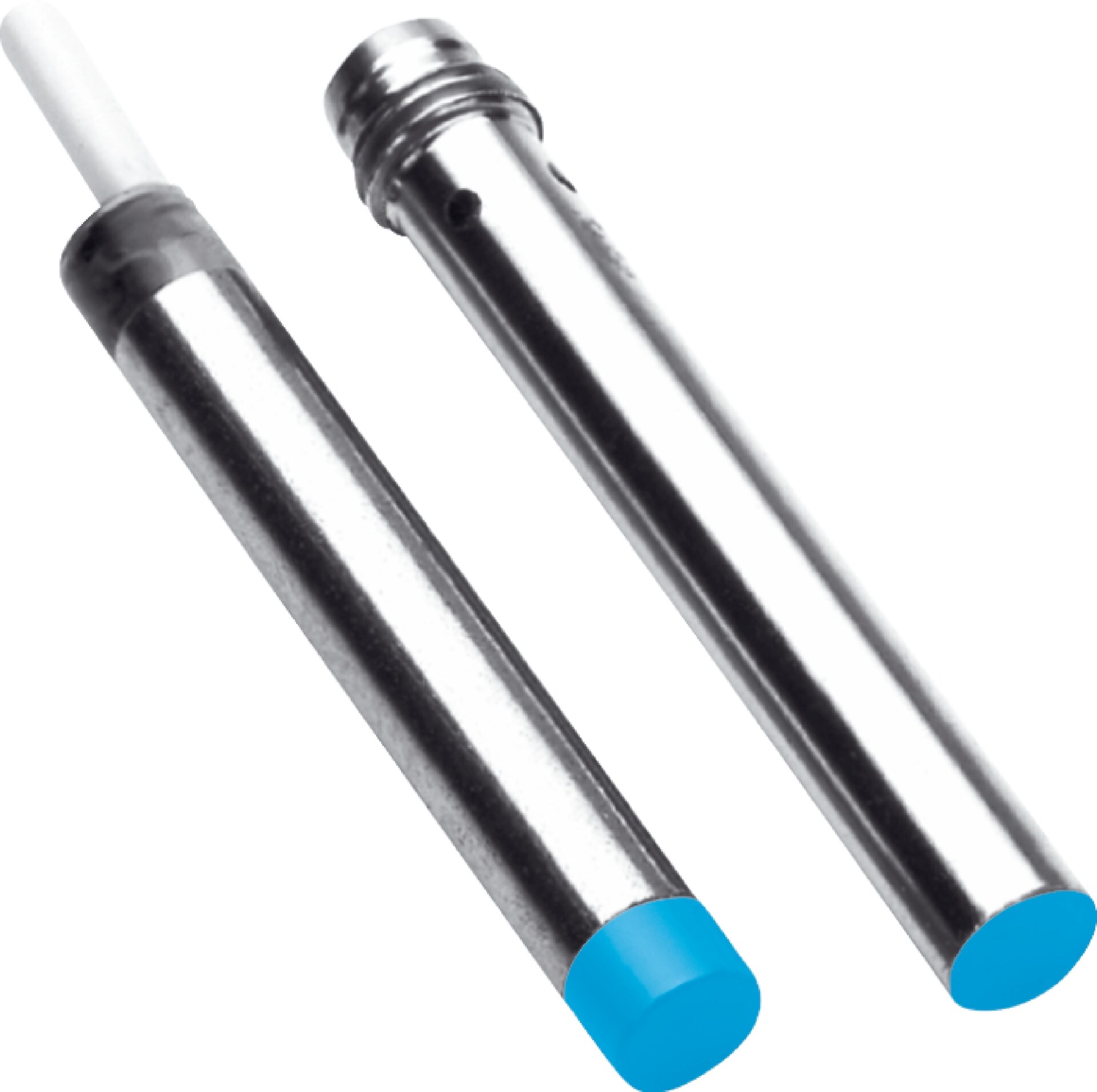

Inductive Proximity Sensor | Short-body Stainless Steel | 2mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor is designed for industrial automation, featuring a compact short-body stainless steel housing and a sensing range of 2 mm. With a high switching frequency of 3,000 Hz and an IP67 rating for dust and water protection, this sensor is perfect for object detection and position sensing in manufacturing lines, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 6.5 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Quasi-flush
- Switching frequency: 3,000 Hz
- Connection type: Cable, 3-wire, 2 m PVC
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC compliance: EN 60947-5-2, IEC 61000-4-2 (Test level 2), IEC 61000-4-4 (Test level 3)
- Continuous current Ia: ≤ 200 mA
- Cable diameter: 3.1 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, POM
- Dimensions (H x L x W): 6.5mm x 35.5mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing design for compact installation
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Quasi-flush installation type
- High switching frequency of 3,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable connection type with 3-wire, 2 m PVC cable
- Stainless steel V2A housing for durability
- Operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring compact sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IH06-02BPS-VWK inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
