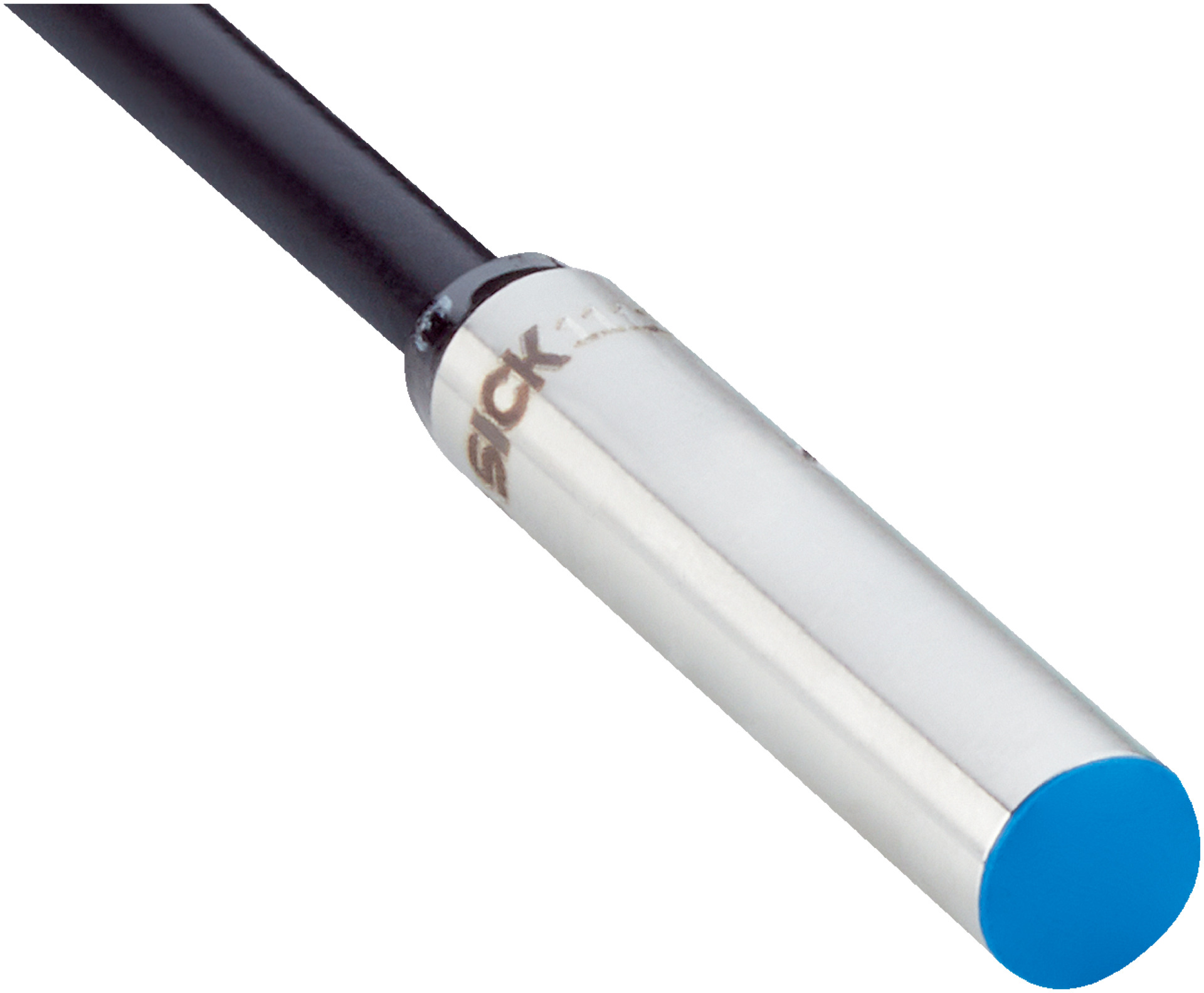

Inductive Proximity Sensor | Short-Body Stainless Steel | 3mm Sensing Range | IP67 Rated | by SICK
Inductive proximity sensor designed for industrial automation, featuring a short-body stainless steel housing and a 3mm sensing range. With an IP67 rating for dust and water protection, this sensor is perfect for metal detection and position sensing in machinery, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 6.5 mm
- Sensing range Sn: 3 mm
- Safe sensing range Sa: 2.43 mm
- Installation type: Flush
- Switching frequency: 1,500 Hz
- Connection type: Cable, 3-wire, 2 m PVC
- Switching output: NPN, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Cable diameter: 3.7 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Dimensions (H x L x W): 6.5mm x 31.3mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing with stainless steel V2A material
- Flush installation type with 3 mm sensing range
- NPN normally open switching output with 1,500 Hz switching frequency
- Visual adjustment indicator and triple sensing range
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable connection type: 3-wire, 2 m PVC cable
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation sensor systems to ensure correct wiring and mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Metal detection in manufacturing processes
- Position sensing in machinery
- Automation systems requiring flush installation sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

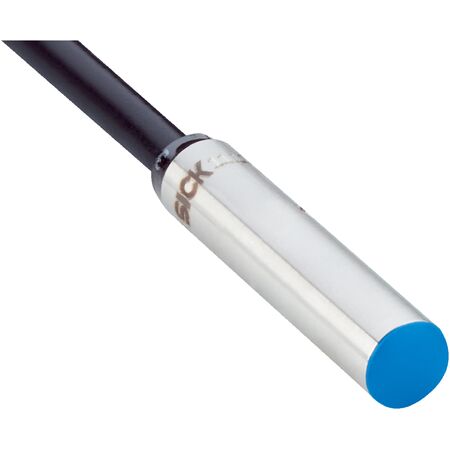

The SICK IHM06-03BNSVW2K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications requiring reliable flush mount sensors.
