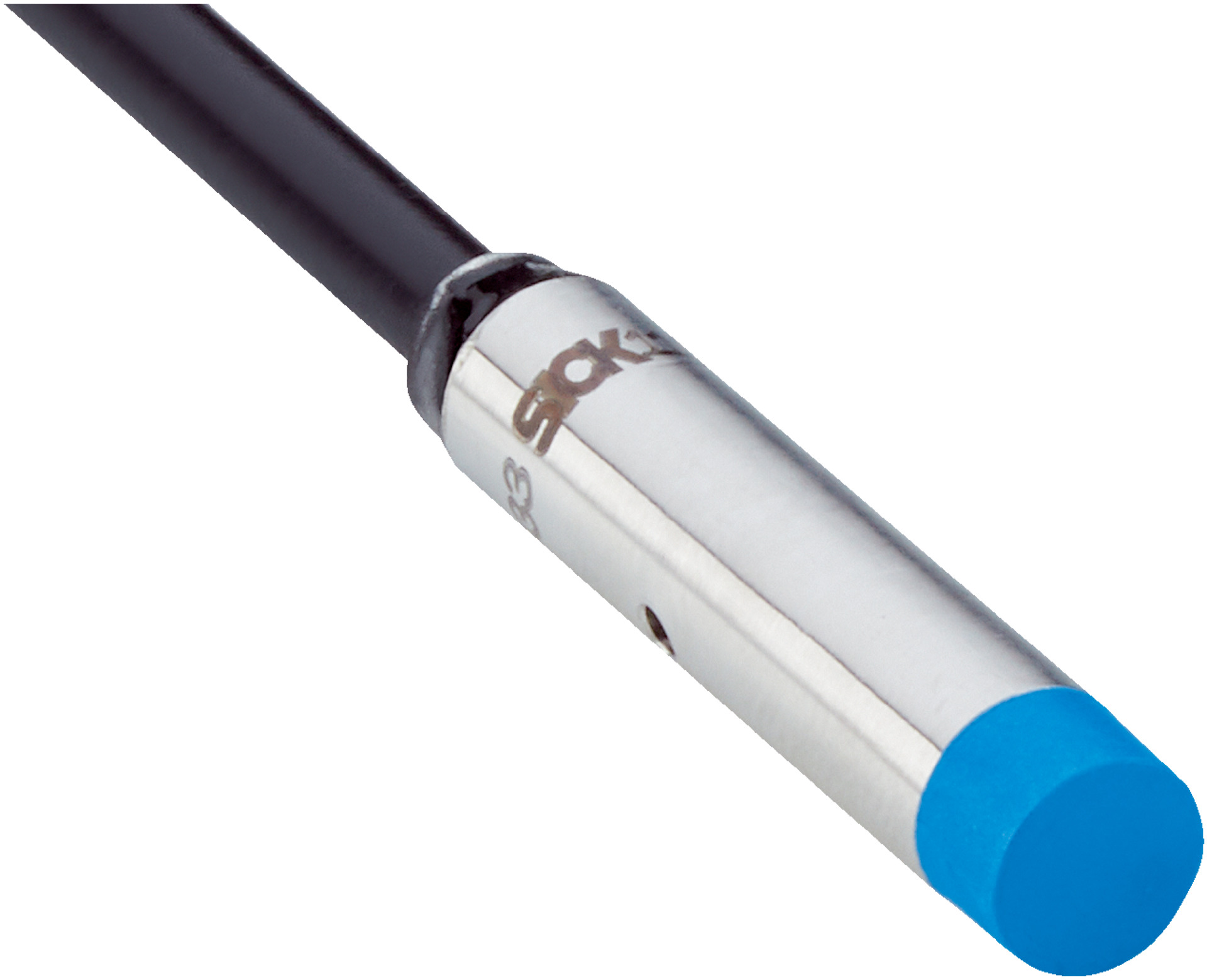

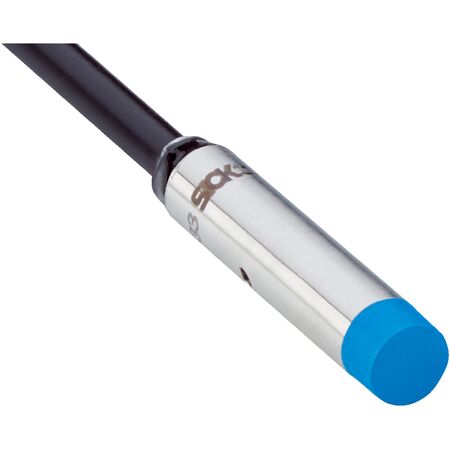

Inductive Proximity Sensor IHM06-04NNSVW2K | Short-Body Stainless Steel | 4mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor IHM06-04NNSVW2K features a short-body design made from durable stainless steel, ensuring reliability in industrial automation applications. With a sensing range of 4 mm and a high switching frequency of 3,500 Hz, this sensor is perfect for non-contact detection in harsh environments. Its IP67 rating provides excellent protection against dust and water, making it ideal for manufacturing lines and object detection tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: Ø 6.5 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Non-flush
- Switching frequency: 3,500 Hz
- Connection type: Cable, 3-wire, 2 m PVC
- Switching output: NPN, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 80 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift (of Sr): ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable diameter: Ø 3.7 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 31.5 mm
- Dimensions (H x L x W): 6.5mm x 31.5mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing with stainless steel V2A material
- Non-flush installation type with 4 mm sensing range
- High switching frequency of 3,500 Hz
- NPN normally open switching output
- Visual adjustment indicator for easy setup
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable connection with 3-wire, 2 m PVC cable
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact detection in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable stainless steel housing extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IHM06-04NNSVW2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
