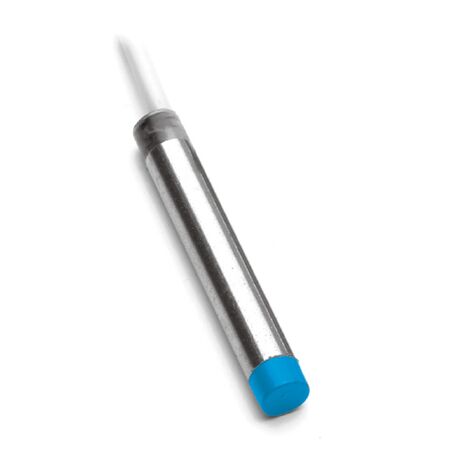

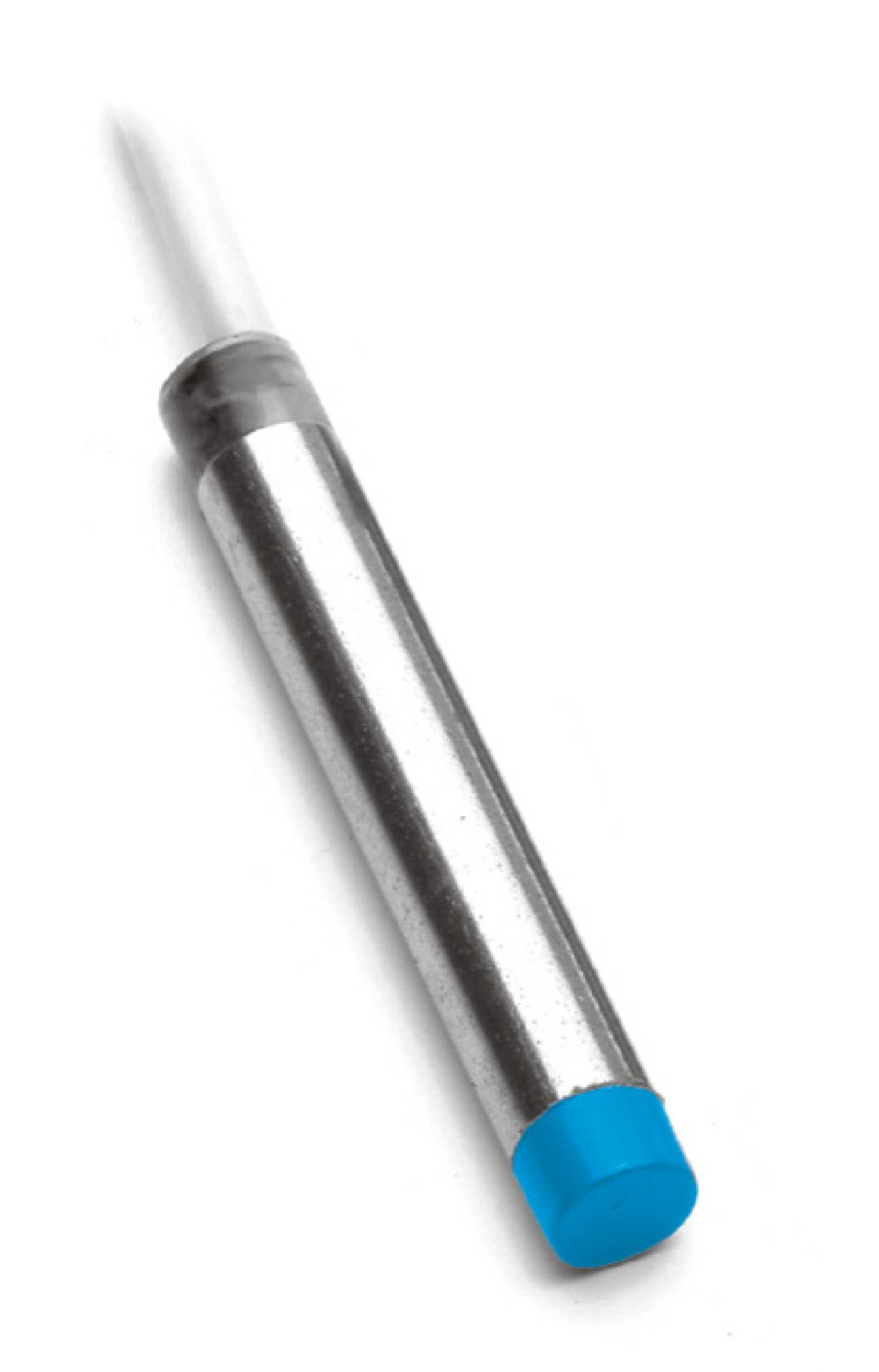

Inductive Proximity Sensor | Short-body Stainless Steel | 4mm Sensing Range | IP67 Rated | by SICK
Inductive proximity sensor designed for industrial automation, featuring a short-body stainless steel housing and a sensing range of 4 mm. With a high switching frequency of 2,500 Hz and an IP67 rating for dust and water protection, this sensor is perfect for non-contact switching in harsh environments, ensuring reliable object detection in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 6.5 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Non-flush
- Switching frequency: 2,500 Hz
- Connection type: Cable, 3-wire, 2 m PVC
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC: EN 60947-5-2, IEC 61000-4-2 (Test level 2), IEC 61000-4-4 (Test level 3)
- Continuous current Ia: ≤ 200 mA
- Cable diameter: Ø 3.1 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Sensing face material: Plastic, POM
- Dimensions (H x L x W): 6.5mm x 35.5mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing with stainless steel V2A material
- Non-flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- High switching frequency of 2,500 Hz
- PNP switching output with NO function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable connection type with 3-wire, 2 m PVC cable
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in harsh environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation with low power consumption
- RoHS compliant, reducing hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IH06-04NPS-VWK inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring reliable object detection.
