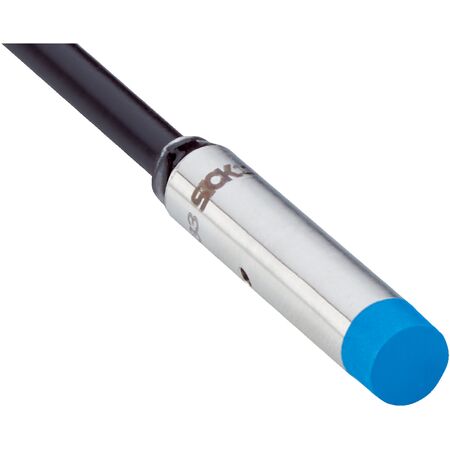

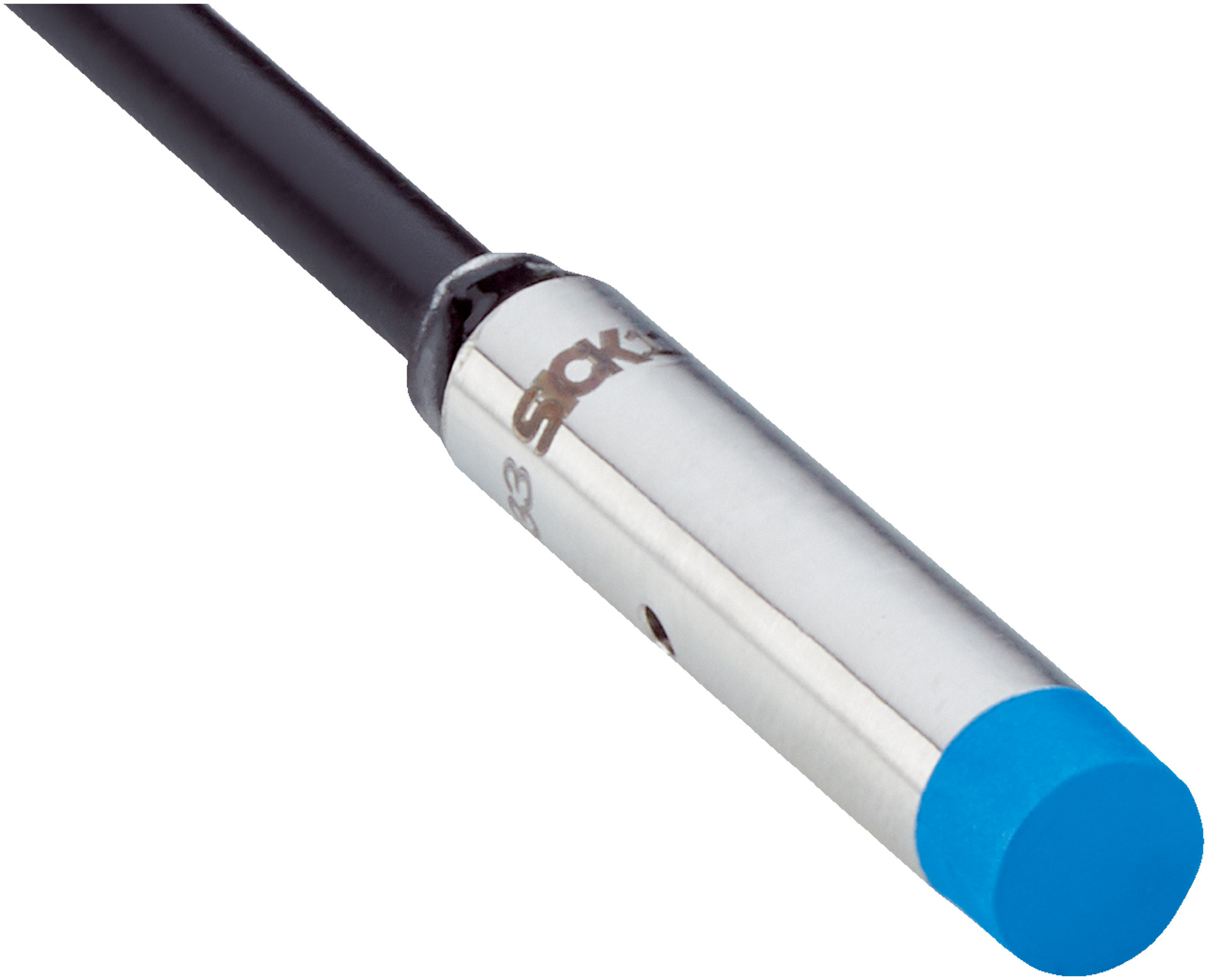

Inductive Proximity Sensor | Short-body Stainless Steel | 6.5 mm Diameter | PNP Output | by SICK
The Inductive Proximity Sensor IHM06-06NPSVRDKS01 features a short-body design with a durable stainless steel housing and a sensing range of 6 mm, making it ideal for industrial automation and machinery applications. With a PNP normally open output and an impressive switching frequency of 1,000 Hz, this sensor is perfect for non-flush mounting in harsh environments, ensuring reliable performance and IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, stainless steel V2A (AISI 303)
- Diameter: 6.5 mm
- Sensing range Sn: 6 mm
- Safe sensing range Sa: 4.86 mm
- Installation type: Non-flush
- Switching frequency: 1,000 Hz
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Connection type: Cable with M8, 3-pin connector, 0.15 m
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 80 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- EMC standard: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable material: PVC, diameter 3.7 mm
- Conductor size: 0.25 mm²
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 6.5mm x 31.5mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing with 6.5 mm diameter
- Non-flush installation type
- Sensing range of 6 mm with safe sensing range of 4.86 mm
- Switching frequency up to 1,000 Hz
- PNP normally open switching output
- Cable with M8 3-pin connector, 0.15 m length
- Visual adjustment indicator and triple sensing range
- IO-Link V1.1 communication interface with COM2 (38.4 kBaud)
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Housing made of stainless steel V2A (AISI 303) with plastic sensing face
- IP67 rated enclosure for dust and water protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and mounting according to manufacturer guidelines and safety standards.
Applications
- Industrial automation for object detection
- Non-flush mounting sensing in machinery
- Use in harsh environments requiring IP67 protection
- Integration in systems requiring IO-Link communication
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- IO-Link communication enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-06NPSVRDKS01 inductive sensor is available for immediate purchase, ideal for industrial automation and machinery sensing applications.
