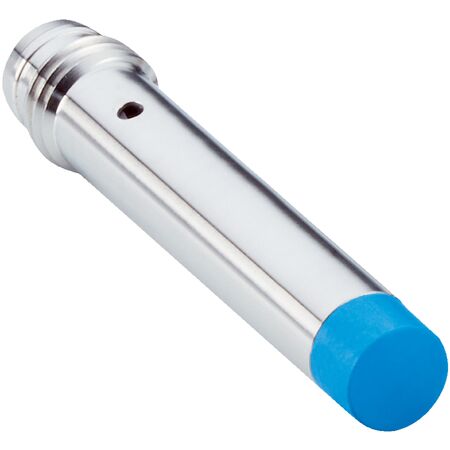

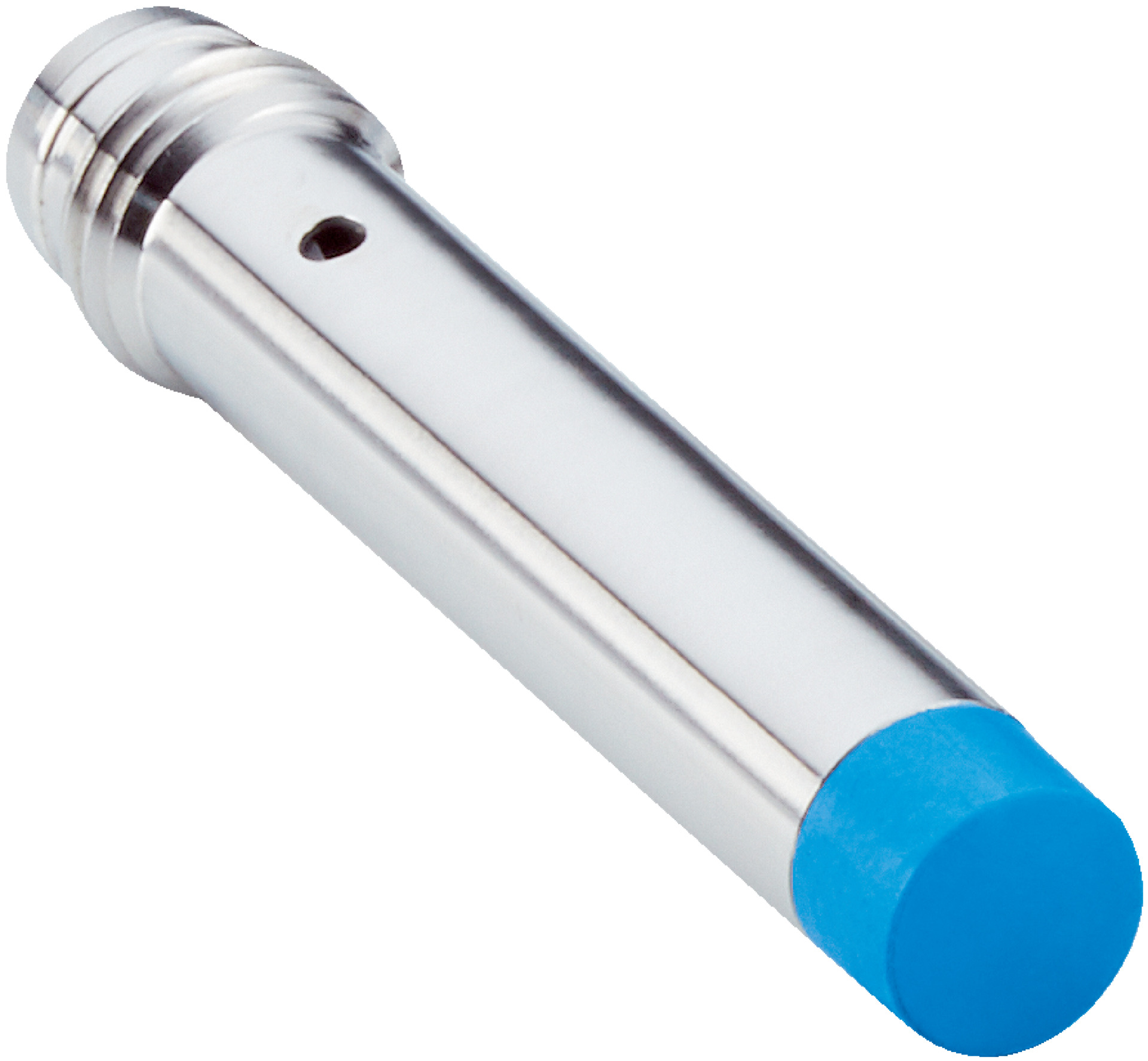

Inductive Proximity Sensor | Short-body Stainless Steel | 6mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a short-body stainless steel housing and a sensing range of 6 mm. With a robust IP67 rating for dust and water protection, this sensor is perfect for non-flush mounting environments, ensuring reliable performance in manufacturing lines and other applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body stainless steel V2A, DIN 1.4305 / AISI 303
- Diameter: Ø 6.5 mm
- Sensing range Sn: 6 mm
- Safe sensing range Sa: 4.86 mm
- Installation type: Non-flush
- Switching frequency: 1,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: NPN, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 80 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift (of Sr): ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Dimensions (H x L x W): 6.5mm x 40mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Non-flush installation type
- Sensing range of 6 mm with safe sensing range of 4.86 mm
- Switching frequency up to 1,000 Hz
- NPN normally closed switching output
- Connector M8, 3-pin connection type
- Visual adjustment indicator with triple sensing range
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct non-flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-flush mounting environments requiring short sensing range
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient DC 3-wire electrical wiring minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-06NNOVT0K inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring precise non-flush sensing.
