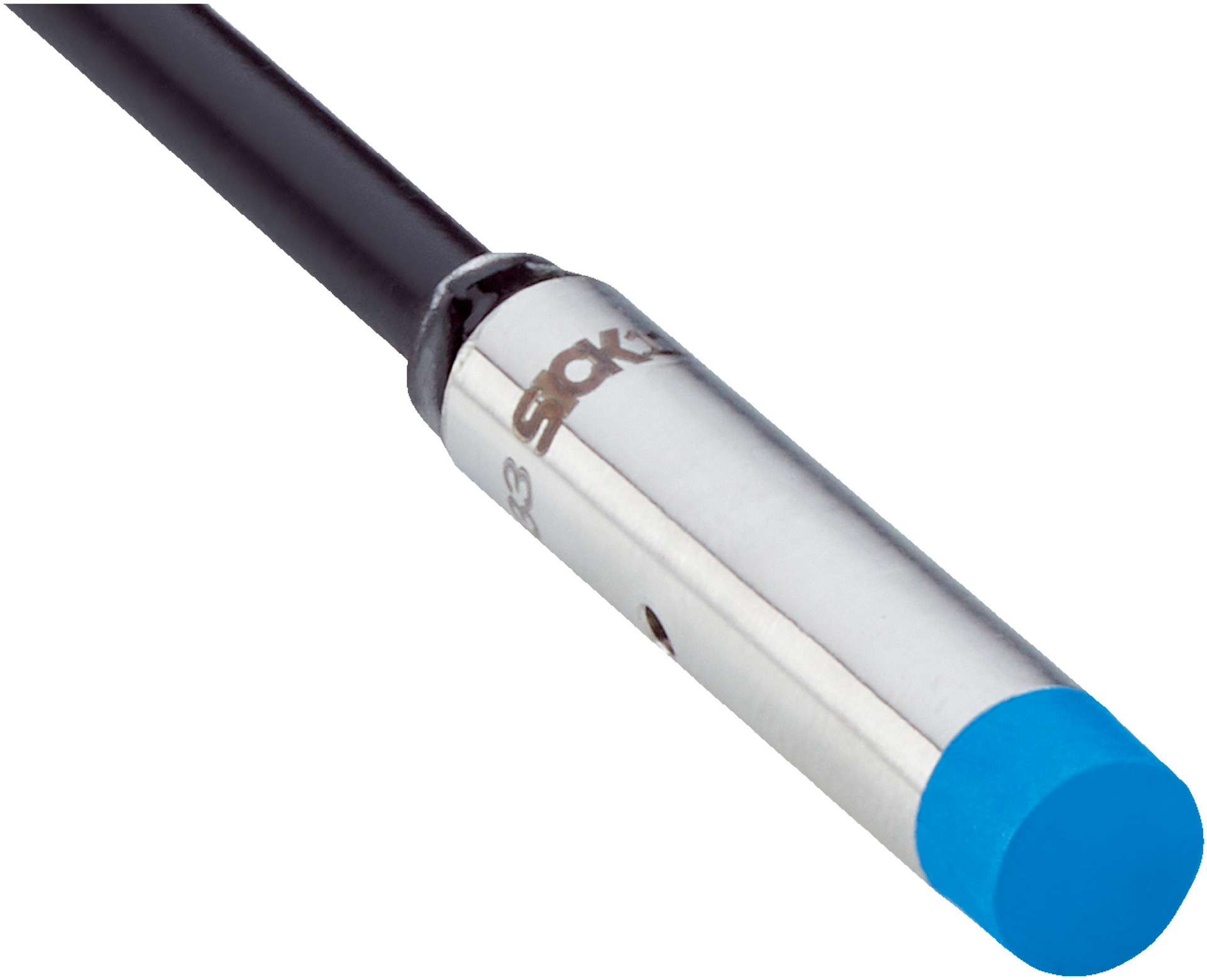

Inductive Proximity Sensor | Short-body Stainless Steel | 6mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body stainless steel housing and a sensing range of 6 mm. With a high switching frequency of 1,000 Hz and an IP67 rating for dust and water protection, this sensor is perfect for non-flush mounting in manufacturing lines and machine safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 6.5 mm
- Sensing range Sn: 6 mm
- Safe sensing range Sa: 4.86 mm
- Installation type: Non-flush
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 2 m PVC
- Switching output: PNP, NC function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 80 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable diameter: 3.7 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Dimensions (H x L x W): 6.5mm x 31.5mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing with stainless steel V2A material
- Sensing range of 6 mm with safe sensing range of 4.86 mm
- Non-flush installation type
- High switching frequency of 1,000 Hz
- PNP switching output with NC function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and triple sensing range
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable connection type: 3-wire, 2 m PVC cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Non-flush mounting sensing in manufacturing lines
- Machine safety and control systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation with low voltage DC supply
- RoHS compliant, reducing hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

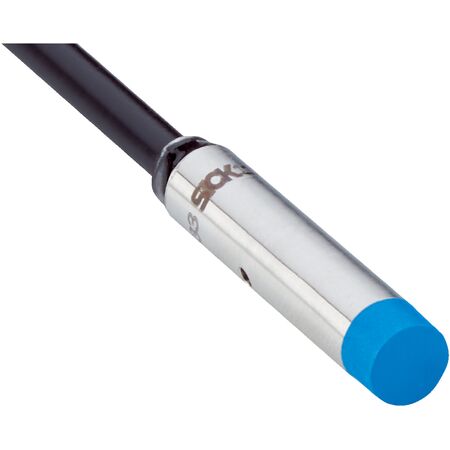

The SICK IHM06-06NPOVW2K inductive sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
