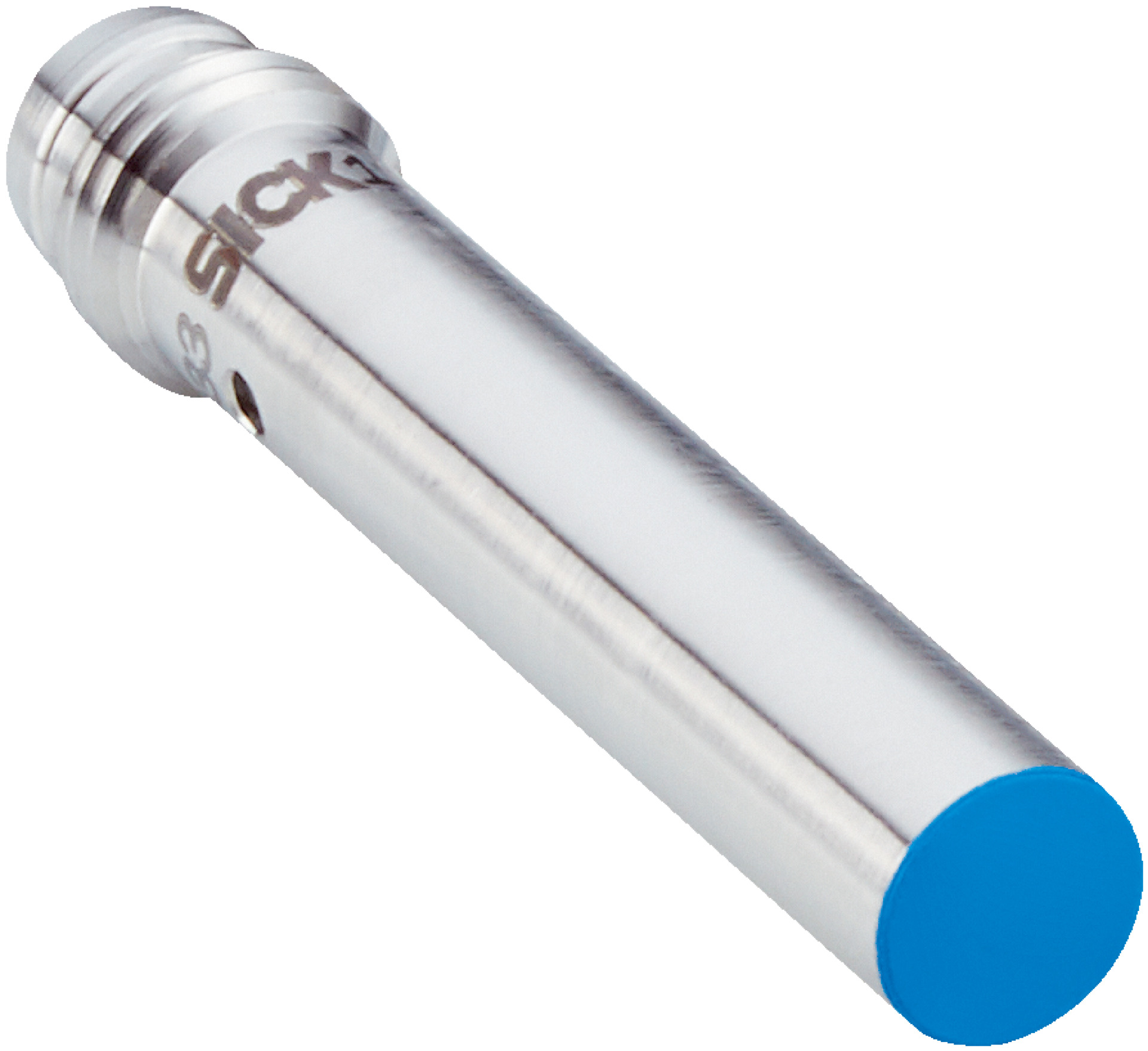

Inductive Proximity Sensor | Short-body Stainless Steel | IP67 Rated | 1500 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body stainless steel housing and an IP67 rating for dust and water protection. With a high switching frequency of 1,500 Hz and a flush installation type, it's perfect for machine safety and control systems, ensuring optimal performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body stainless steel V2A, DIN 1.4305 / AISI 303
- Diameter: 6.5 mm
- Sensing range Sn: 3 mm
- Safe sensing range Sa: 2.43 mm
- Installation type: Flush
- Switching frequency: 1,500 Hz
- Connection type: Connector M8, 3-pin
- Switching output: NPN, Normally Closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift (of Sr): ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 40 mm
- Dimensions (H x L x W): 6.5mm x 40mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Flush installation type
- Visual adjustment indicator with triple sensing range
- High switching frequency of 1,500 Hz
- IP67 rated enclosure for dust and water protection
- NPN normally closed switching output
- Connector M8, 3-pin connection type
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Manufacturing process monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

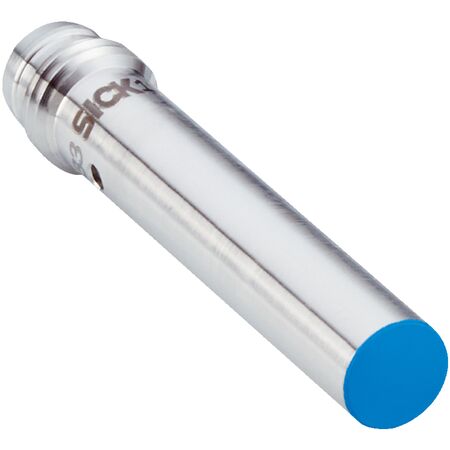

The SICK IHM06-03BNOVT0K inductive sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
