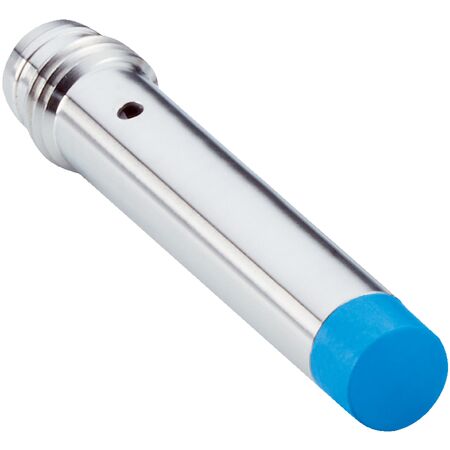

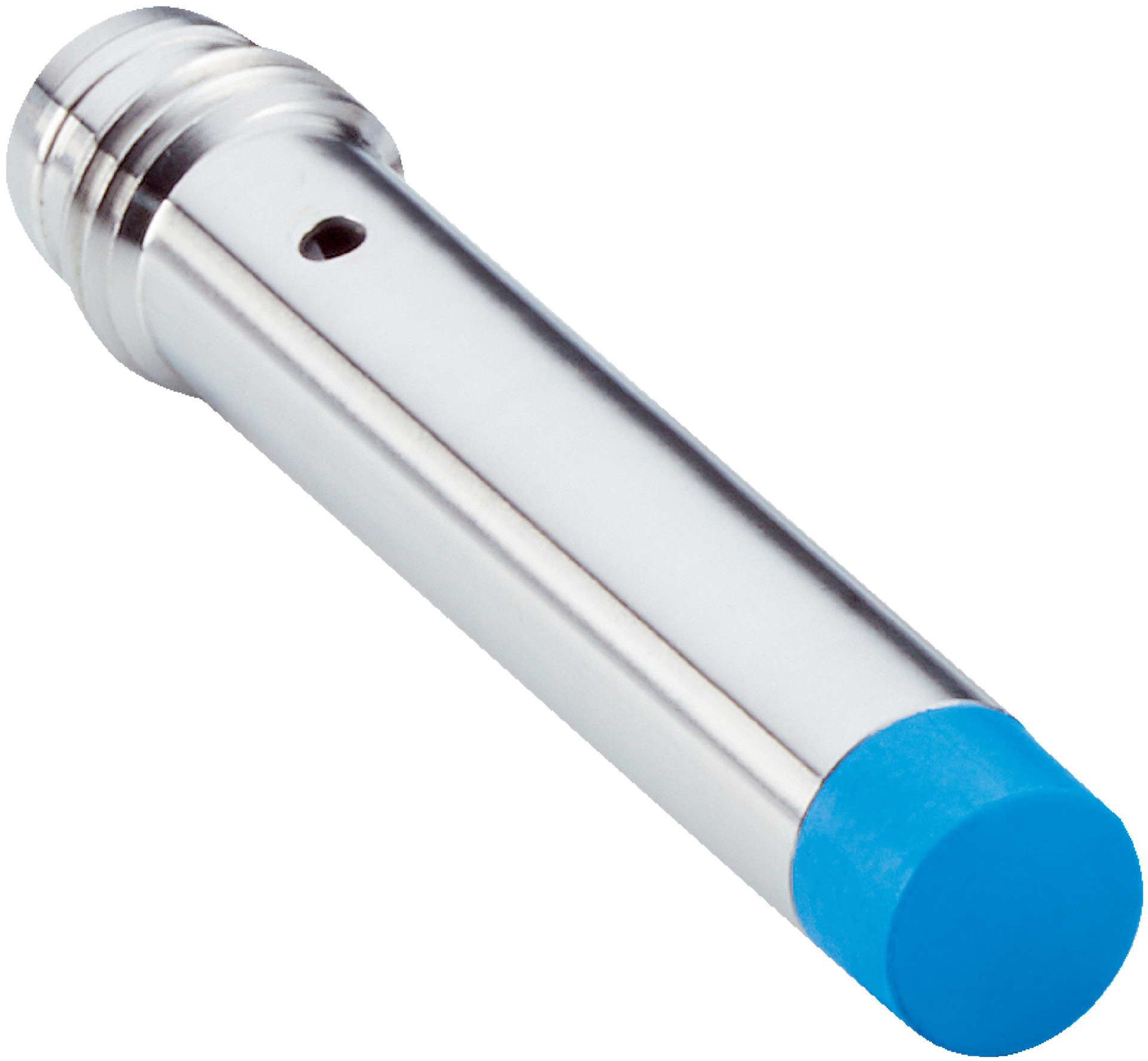

Inductive Proximity Sensor | Short-body Stainless Steel | IP67 Rated | 3,500 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor IHM06-04NPOVT0K features a short-body stainless steel design, ideal for non-flush mounting in industrial automation applications. With a high switching frequency of 3,500 Hz and an IP67 enclosure rating, it ensures reliable performance in harsh environments. Perfect for object detection in machinery, this sensor is built for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 6.5 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Non-flush
- Switching frequency: 3,500 Hz
- Connection type: Connector M8, 3-pin
- Switching output: PNP, NC function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 80 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift (of Sr): ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 40 mm
- MTTFD: 1,330 years
- DCavg: 0%
- Dimensions (H x L x W): 6.5mm x 40mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Non-flush installation type
- Visual adjustment indicator for easy setup
- High switching frequency of 3,500 Hz
- PNP switching output with NC function
- Connector M8, 3-pin connection
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Non-flush mounting sensing in machinery
- Use in harsh environments requiring IP67 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage DC supply
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-04NPOVT0K inductive sensor is available for immediate purchase, ideal for industrial automation and machinery sensing applications.
