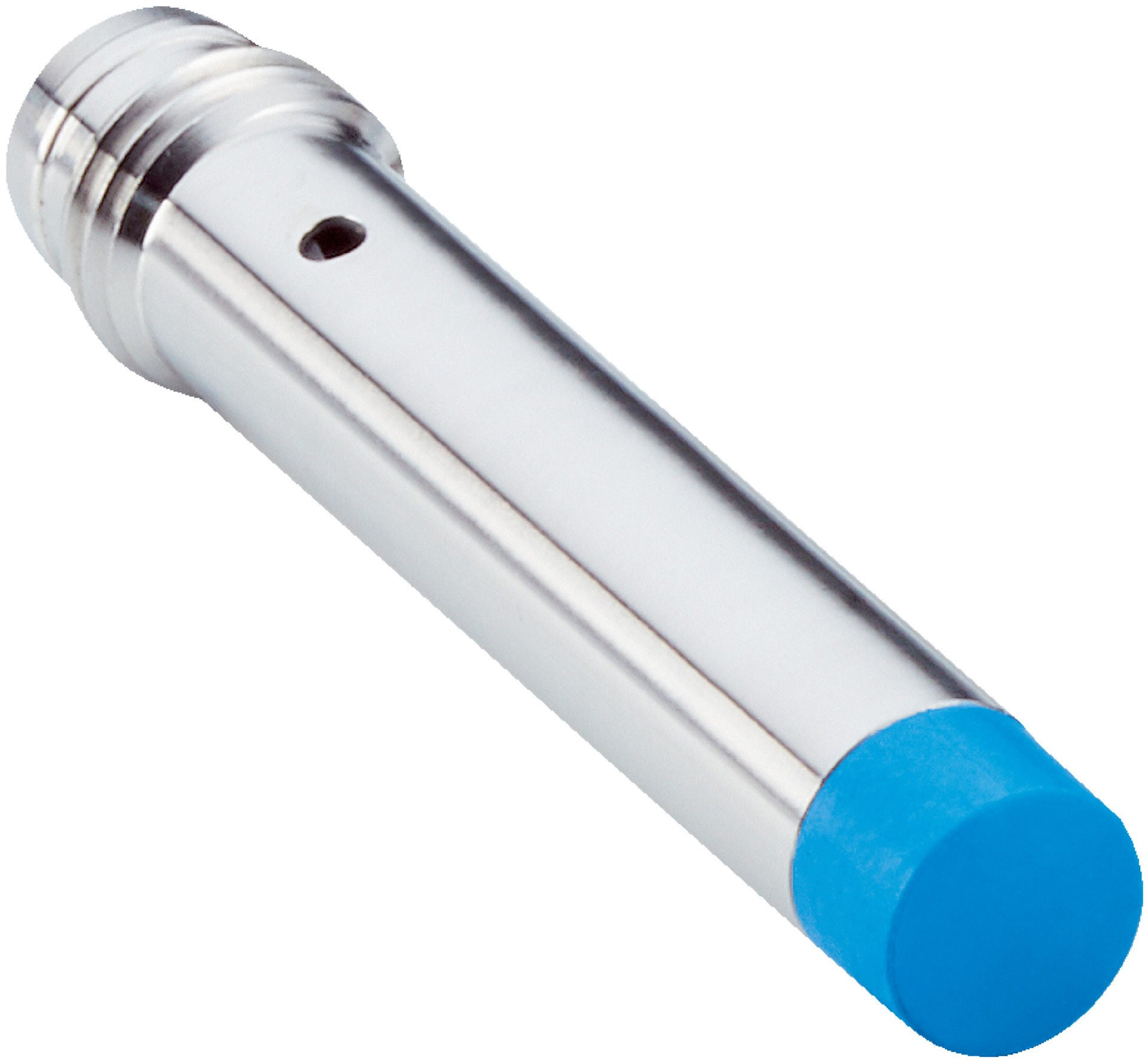

Inductive Proximity Sensor | Short-body Stainless Steel | IP67 Rated | 3,500 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor is designed for industrial automation, featuring a short-body stainless steel housing and an IP67 rating for dust and water protection. With a high switching frequency of 3,500 Hz and a non-flush installation type, it's perfect for machine safety and control systems, ensuring reliable object detection in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 6.5 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Non-flush
- Switching frequency: 3,500 Hz
- Connection type: Connector M8, 3-pin
- Switching output: NPN, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 80 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift (of Sr): ≤ 10%
- EMC: EN 60947-5-2 compliant
- Continuous current Ia: ≤ 200 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Visual adjustment indicator included
- Dimensions (H x L x W): 6.5mm x 40mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Non-flush installation type
- Visual adjustment indicator for easy setup
- High switching frequency of 3,500 Hz
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Connector M8, 3-pin connection type
- NPN normally closed switching output
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Non-flush mounting sensing applications
- Machine safety and control systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient DC 3-wire electrical wiring minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

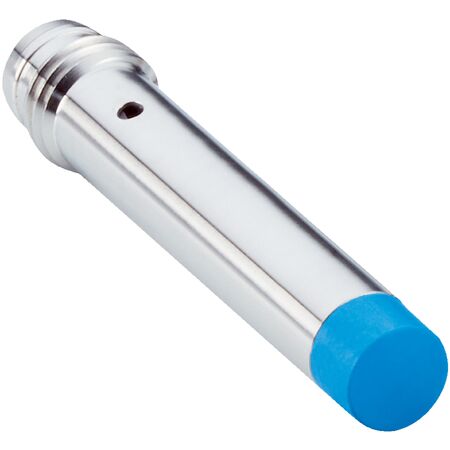

The SICK IHM06-04NNOVT0K inductive sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
