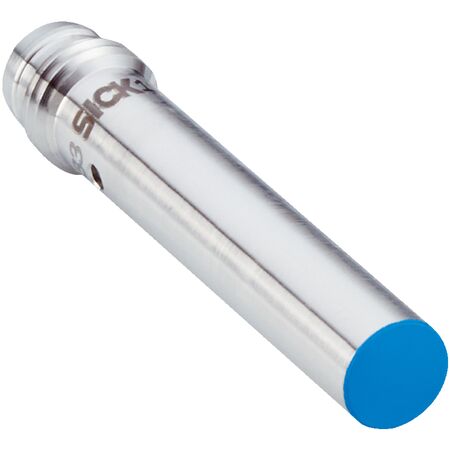

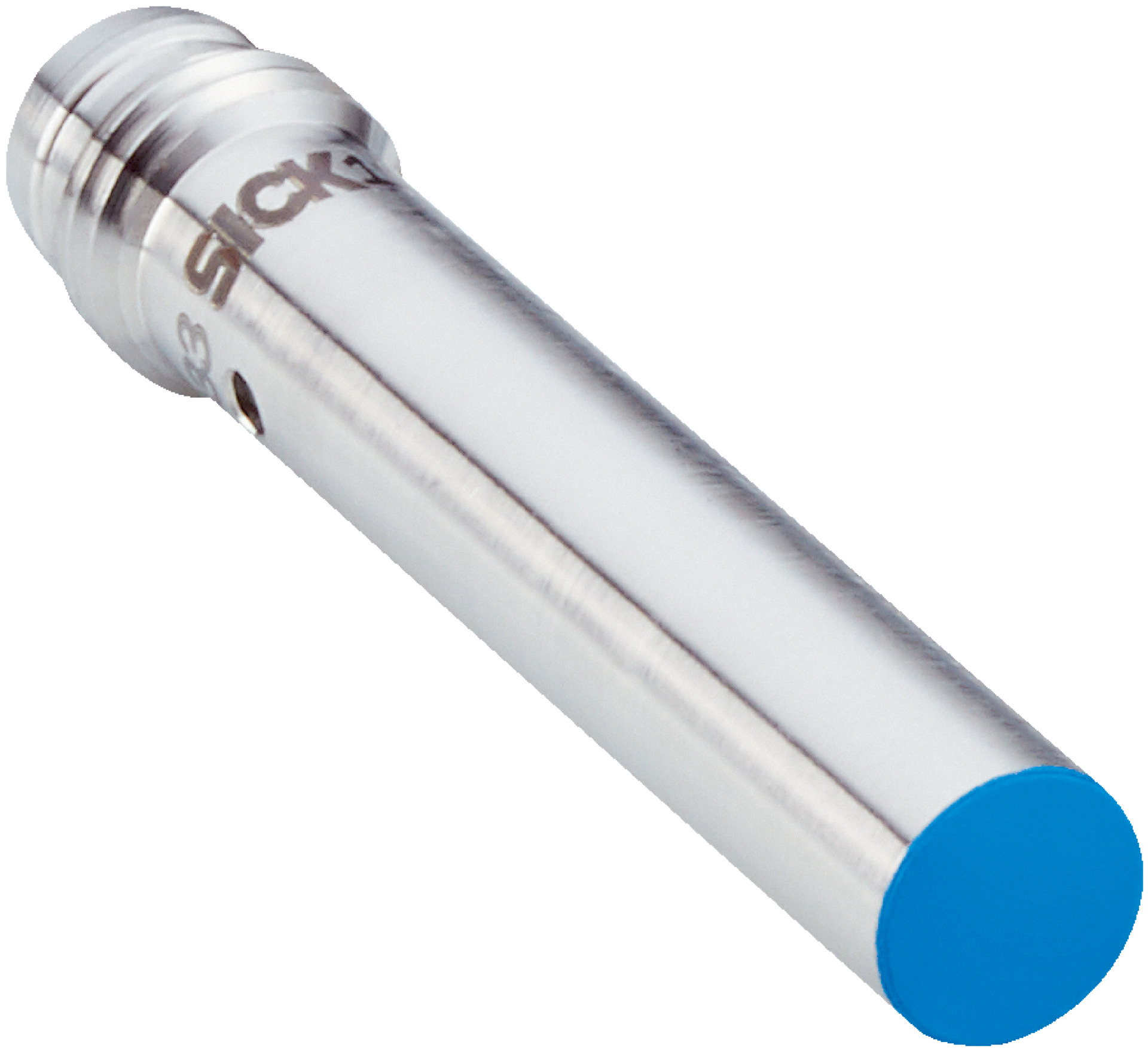

Inductive Proximity Sensor | Short-body Stainless Steel | IP67 Rated | 5,000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor IHM06-02BPOVT0K features a short-body stainless steel design, ideal for industrial automation and machine safety applications. With an IP67 rating for dust and water resistance and a high switching frequency of 5,000 Hz, this sensor ensures reliable performance in demanding environments. Perfect for object detection and metal detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 6.5 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: PNP, NC function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift (of Sr): ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 40 mm
- Dimensions (H x L x W): 6.5mm x 40mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Flush installation type
- Visual adjustment indicator for easy setup
- High switching frequency of 5,000 Hz
- IP67 rated enclosure for dust and water resistance
- Connector M8, 3-pin connection
- PNP switching output with NC function
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Metal detection in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IHM06-02BPOVT0K inductive sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
