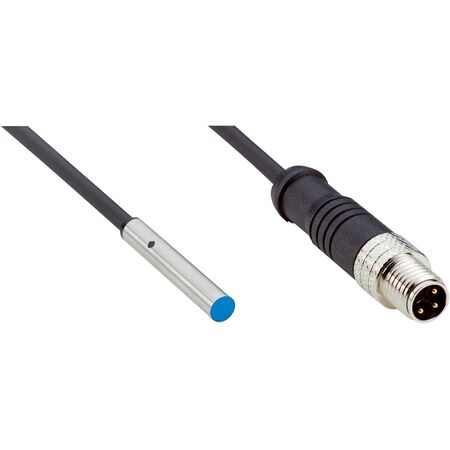

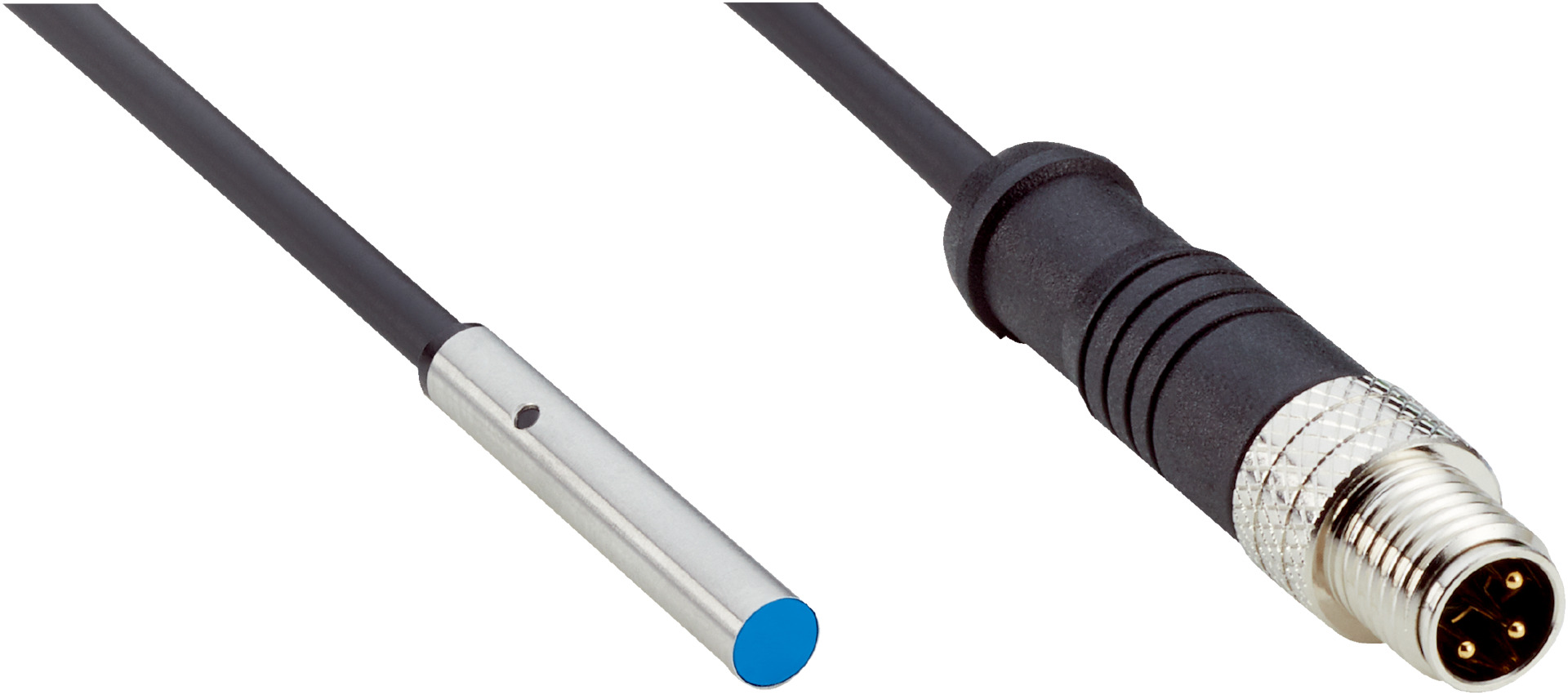

Inductive Proximity Sensor | Stainless Steel V2A | 0.8mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor is designed for industrial automation, featuring a durable stainless steel V2A housing and a sensing range of 0.8 mm. With a high switching frequency of 5,000 Hz and an IP67 rating for dust and water protection, this sensor is perfect for precise object detection and position sensing in manufacturing lines, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 4 mm
- Sensing range Sn: 0.8 mm
- Safe sensing range Sa: 0.648 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Cable with connector M8, 3-pin, 0.2 m
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift: ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable material: PUR, diameter 2.9 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 25 mm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 10.4 ms
- Process data length: 1 Byte
- Dimensions (H x L x W): 4mm x 25mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type with 4 mm diameter sensing face
- Sensing range of 0.8 mm with safe sensing range of 0.648 mm
- High switching frequency of 5,000 Hz
- PNP switching output with NO output function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- IO-Link interface enables smart communication reducing unnecessary replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK IHM04-0B8PSVR8S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
